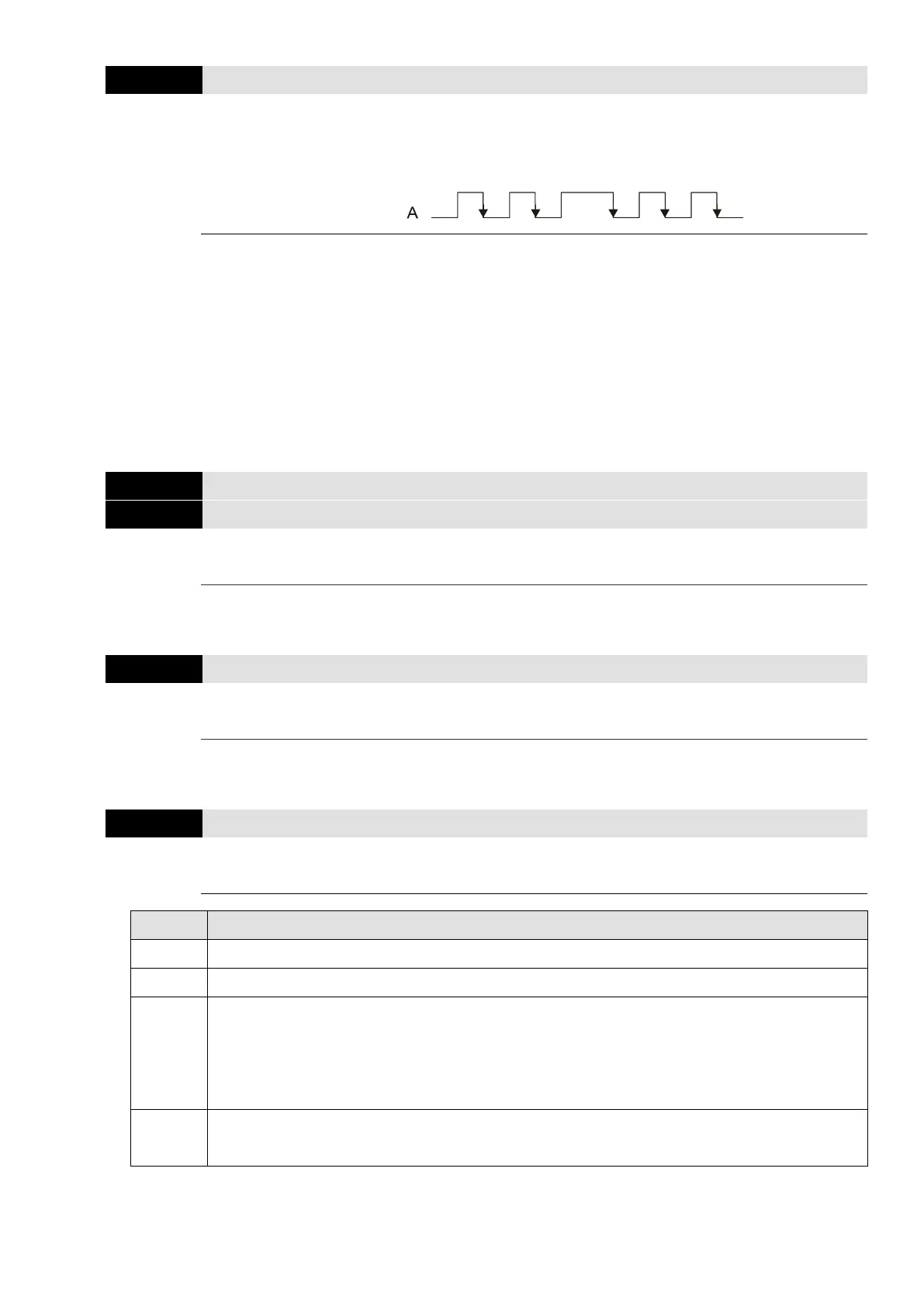

Chapter 12 Descriptions of Parameter SettingsMS300
425

10-16
Pulse Input Type Setting
Default: 0
Settings
0: Disabled
5: Single-phase input (MI7)
 When Pr.10-16 = 5, you cannot set Pr.10-02 to 5: Single-phase input (MI7) for closed-loop
control.
 The setting steps when using the MI7 single-phase pulse input as the frequency command:
1. Set Pr.00-20 = 4: Pulse input without direction command
2. Set Pr.10-00 = 5: Pulse input (MI7)
3. Set Pr.10-01 to motor pulses per revolution (ppr)
4. Set Pr.10-16 = 5: Single-phase input (MI7)
5. Set Pr.00-04 = 22 (Pulse input frequency) to verify if the pulse input frequency is correct.

10-17
Electrical Gear A

10-18
Electrical Gear B
Default: 100
Settings
1–65535
 Rotation speed = pulse frequency ÷ MI7 single-phase pulse input pulses (Pr.10-01) × electrical
gear A / electrical gear B.

10-21
Pulse Input Speed Command Low Pass Filter Time
Default: 0.100
Settings
0.000–65.535 sec.
 When you set Pr.00-20 to 4, the system treats the pulse command as a Frequency command.
Use this parameter to suppress the speed command jump.

10-24
FOC & TQC Function Control
Default: 0
Settings
0–65535
bit
Description
0
ASR controller under torque control
1–10
N/A
12
FOC sensorless mode with crossing zero means the speed goes from negative to
positive or positive to negative (forward to reverse direction or reverse to forward
direction).
0: determined by the stator frequency; 1: determined by the speed command
15
Direction control in open-loop torque
0: Switch ON direction control; 1: Switch OFF direction control
 Only bit = 0 is used for closed-loop; other bits are used for open-loop.
