Chapter 6 Control TerminalsMS300
43

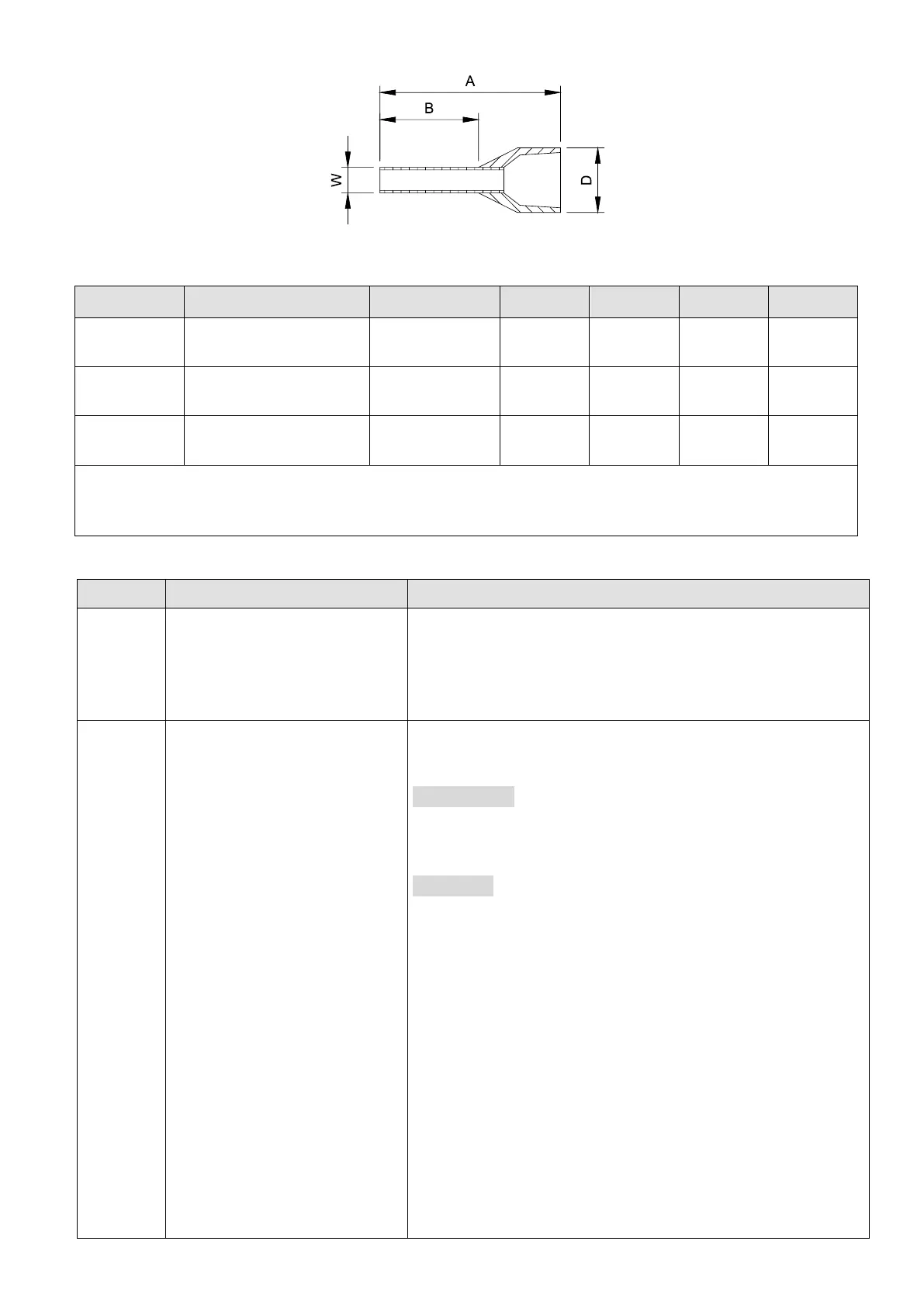

Figure 6-8
Recommended models or dimensions for crimping terminals Unit: mm
Wire Gauge
Manufacturer
Model Name
A (MAX)
B (MAX)
D (MAX)
W (MAX)
0.2 mm
2
(24 AWG)
PHOENIX CONTACT
AI 0,25- 8 YE
12.5
8
2.6
1.1
0.34 mm
2
(22 AWG)
PHOENIX CONTACT
AI 0,34- 8 TQ
12.5
8
3.3
1.3
0.5 mm
2
(20 AWG)
PHOENIX CONTACT
AI 0,5 - 8 WH
14
8
3.5
1.4
Recommended specifications and models for crimping tool:
CRIMPFOX 10S - 1212045, Manufacturer: PHOENIX CONTACT
DNT13-0101, Manufacturer: DINKLE
Table 6-2
Terminals
Terminal Function
Description
+24 V
Digital control signal common
(Source)
+24 V
DC
± 10 % 100 mA
When used in parallel, if the +24V terminal is used with a
feedback sensor, unequal current may occur, and there will
be a risk of failure.
MI1
–
MI7
Multi-function input 1–7
Refer to Pr.02-01–02-07 to program the multi-function
inputs MI1–MI7.
Source Mode
ON: activation current is 3.3 mA and the voltage is 11 V
DC
OFF: cut-off voltage ≤ 5 V
DC
Sink Mode
ON: activation current is 3.3 mA and the voltage is 13 V
DC
OFF: cut-off voltage ≥ 19 V
DC
 When Pr.02-00 = 0, MI1 and MI2 can be programmed.
 When Pr.02-00 ≠ 0, the functions of MI1 and MI2 act
according to Pr.02-00 setting.
 When Pr.02-07 = 0, MI7 is pulse input terminal.
 MI7 uses pulse input, and the maximum input
frequency = 33 kHz. You can use it as frequency
command source or connect it to the encoder for motor
closed-loop control.
 MI7 motor closed-loop control only supports VFPG
control mode.
