Delta VFD2A8MS21ANSAA User Manual

Chapter 14 Fault CodesMS300
547

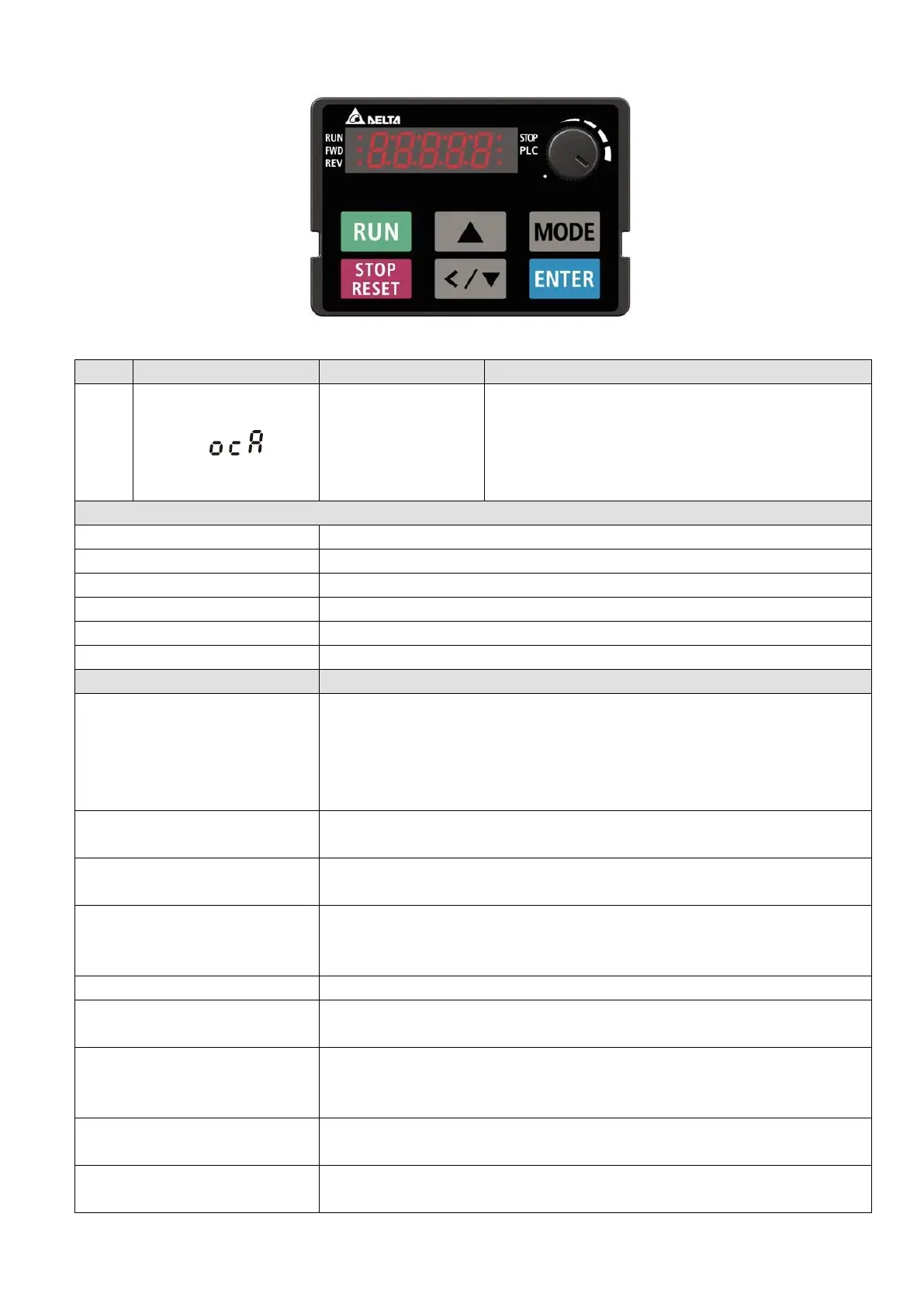

Digital Keypad KPMS-LE01
 Refer to setting of Pr.06-17–Pr.06-22 and Pr.14-70–14-73.
ID
Display on LCD Keypad
Fault Name
Fault Descriptions
1
Over-current during
acceleration
(ocA)
Output current exceeds three times of the rated current
during acceleration.
When ocA occurs, the drive closes the gate of the
output immediately, the motor runs freely, and the
display shows an ocA error.
Action and Reset
Action Condition
300% of the rated current
Action Time
Immediately act
Fault Treatment Parameter
N/A
Reset Method
Manual reset
Reset Condition
Reset in five seconds after the fault is cleared
Record
Yes
Cause
Corrective Actions
Acceleration time is too short
1. Increase the acceleration time
2. Increase the acceleration time of S-curve
3. Set auto-acceleration and auto-deceleration parameter (Pr.01-44)
4. Set over-current stall prevention function (Pr.06-03)
5. Replace the drive with a larger capacity model.
Short circuit at motor output due to
poor insulation wiring
Check the motor cable and remove causes of the short circuits, or replace the
cable before turning on the power.
Check for possible burnout or
aging insulation of the motor
Check the motor insulation value with megger. Replace the motor if the
insulation is poor.
The load is too large.
Check if the output current during the whole working process exceeds the AC
motor drive’s rated current. If yes, replace the AC motor drive with a larger
capacity model.
Impulsive change of the load
Reduce the load or increase the capacity of AC motor drive.
Use special motor or motor with
larger capacity than the drive
Check the motor capacity (the rated current on the motor’s nameplate should ≤
the rated current of the drive)
Use ON/OFF controller of an
electromagnetic contactor at the
output (U/V/W) of the drive
Check the action timing of the contactor and make sure it is not turned ON/OFF
when the drive outputs the voltage.
V/F curve setting error
Adjust the V/F curve setting and frequency/voltage. When the fault occurs, and
the frequency voltage is too high, reduce the voltage.
Torque compensation is too large
Adjust the torque compensation (refer to Pr.07-26 torque compensation gain)
until the output current reduces and the motor does not stall.
