Chapter 15 CANopen OverviewMS300
637

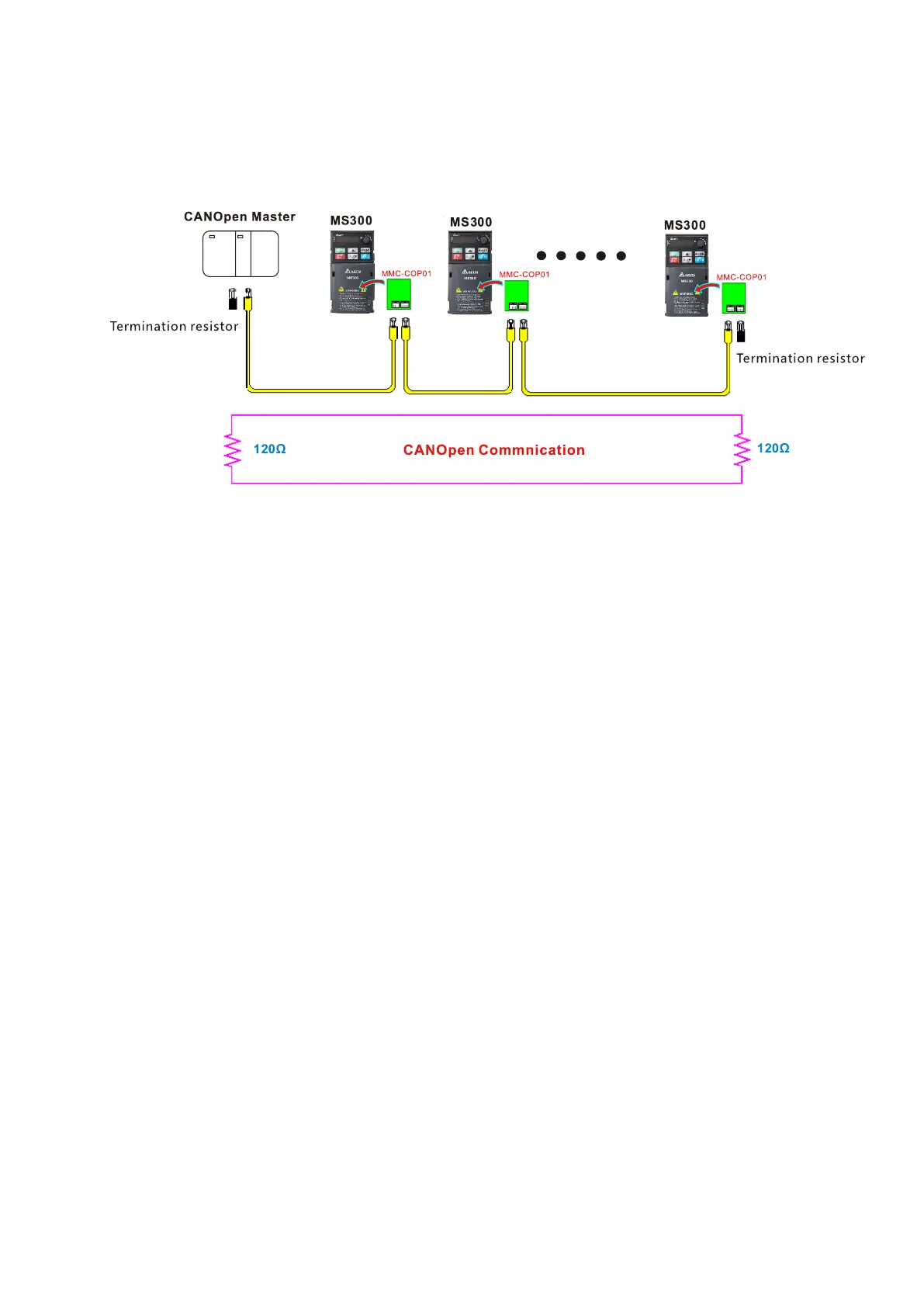

15-2 Wiring for CANopen
Use an external CANopen communication card CMM-COP01 for CANopen wiring to connect the
CANopen to the MS300 drive. The link uses an RJ45 cable. You must wire the two farthest ends with
120 Ω terminating resistors as shown in the picture below.
