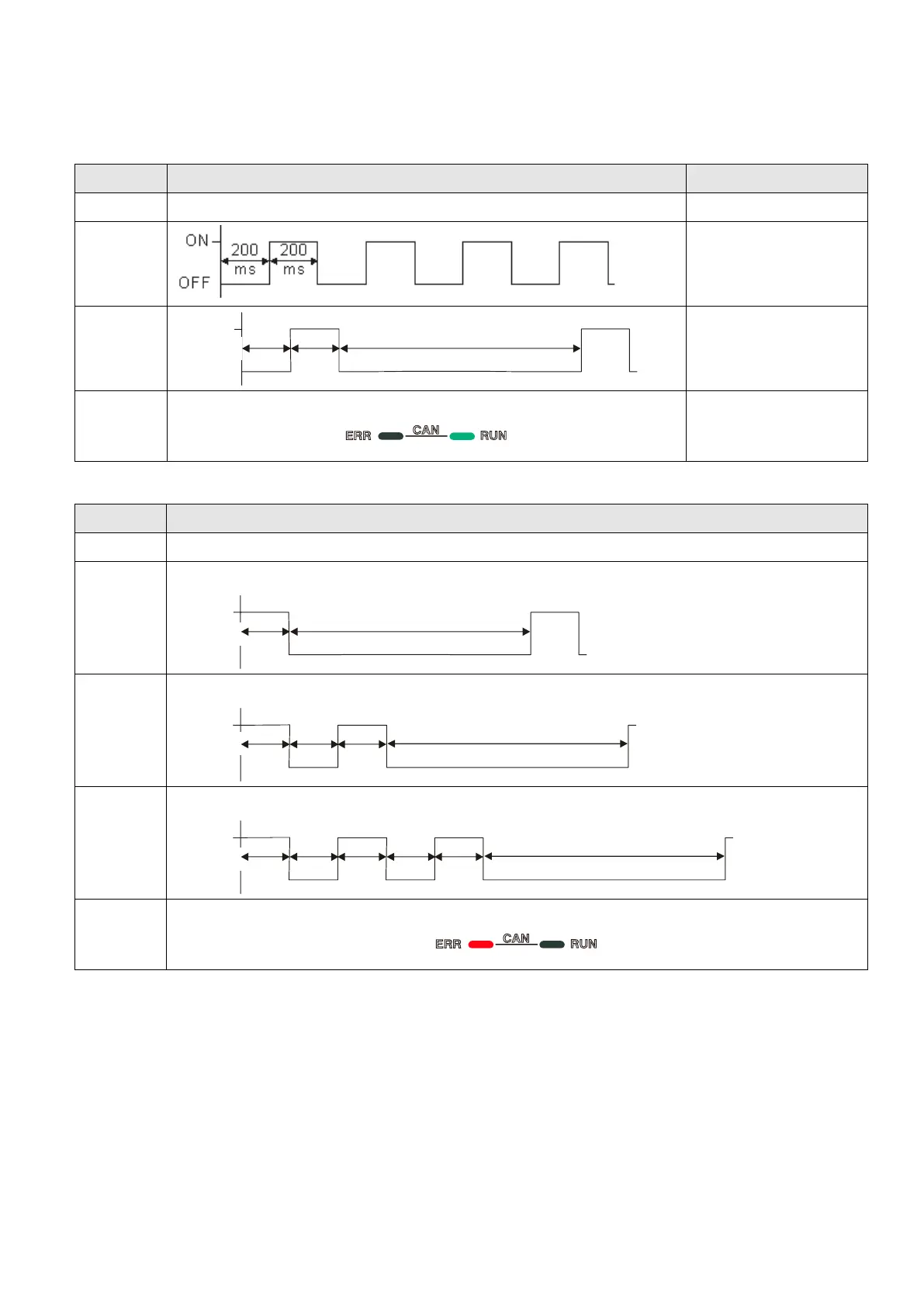

15-6 CANopen LED Function
There are two CANopen flash signs: RUN and ERR.
RUN LED:
LED Status
Condition
CANopen Status
OFF
Keep lighting off
Initial
Blinking
Pre-operation
Single
Flash
ON
OFF
單次閃爍
200
ms
200
ms
1000
ms
Stopped
ON
Keep lighting on
Operation
ERR LED:
LED Status
Condition / Status
OFF
No Error
Single
Flash
At least one CANopen packet failure
ON
OFF
單次閃爍
200
ms
1000
ms
Double
Flash
Guarding failure or heartbeat failure
ON
OFF
雙次閃爍
200
ms
200
ms
1000
ms
200
ms
Triple
Flash
SYNC failure
ON
OFF
雙次閃爍
200
ms
200
ms
200
ms
200
ms
1000
ms
200
ms
ON
Bus off
