Chapter 7 Optional AccessoriesMS300
66
Figure 7-8
Unit: mm

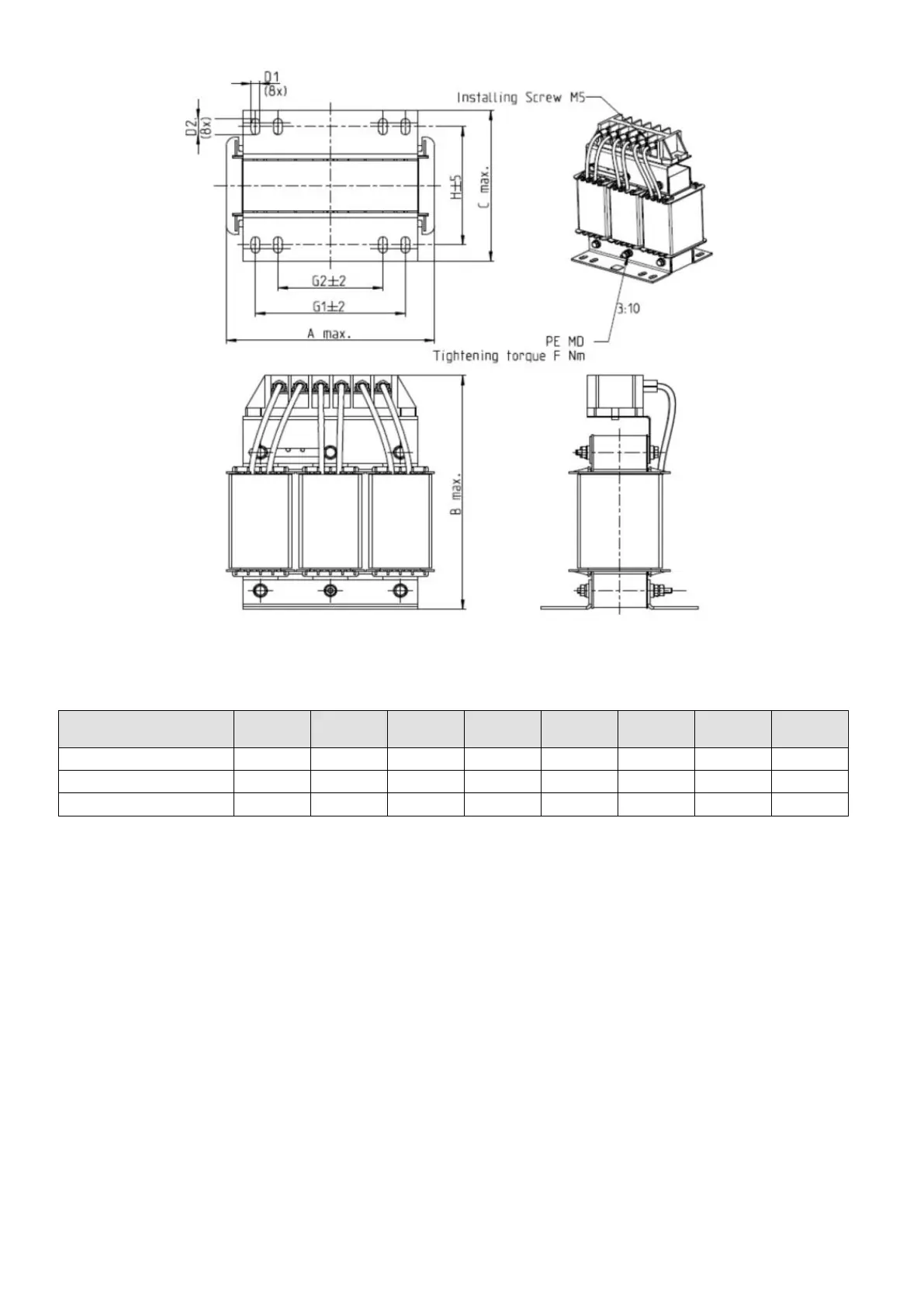

AC Input Reactors
Delta Part #
A
B
C
D1*D2
H
G1
G2
PE D
DR025AP215
130
195
100
6*12
65
80.5
60
M4
DR033AP163
130
195
100
6*12
65
80.5
60
M4
DR049AP163
160
200
125
6*12
90
107
75
M4
Table 7-24
