Chapter 16 PLC Function ApplicationsC2000-HS
16-76

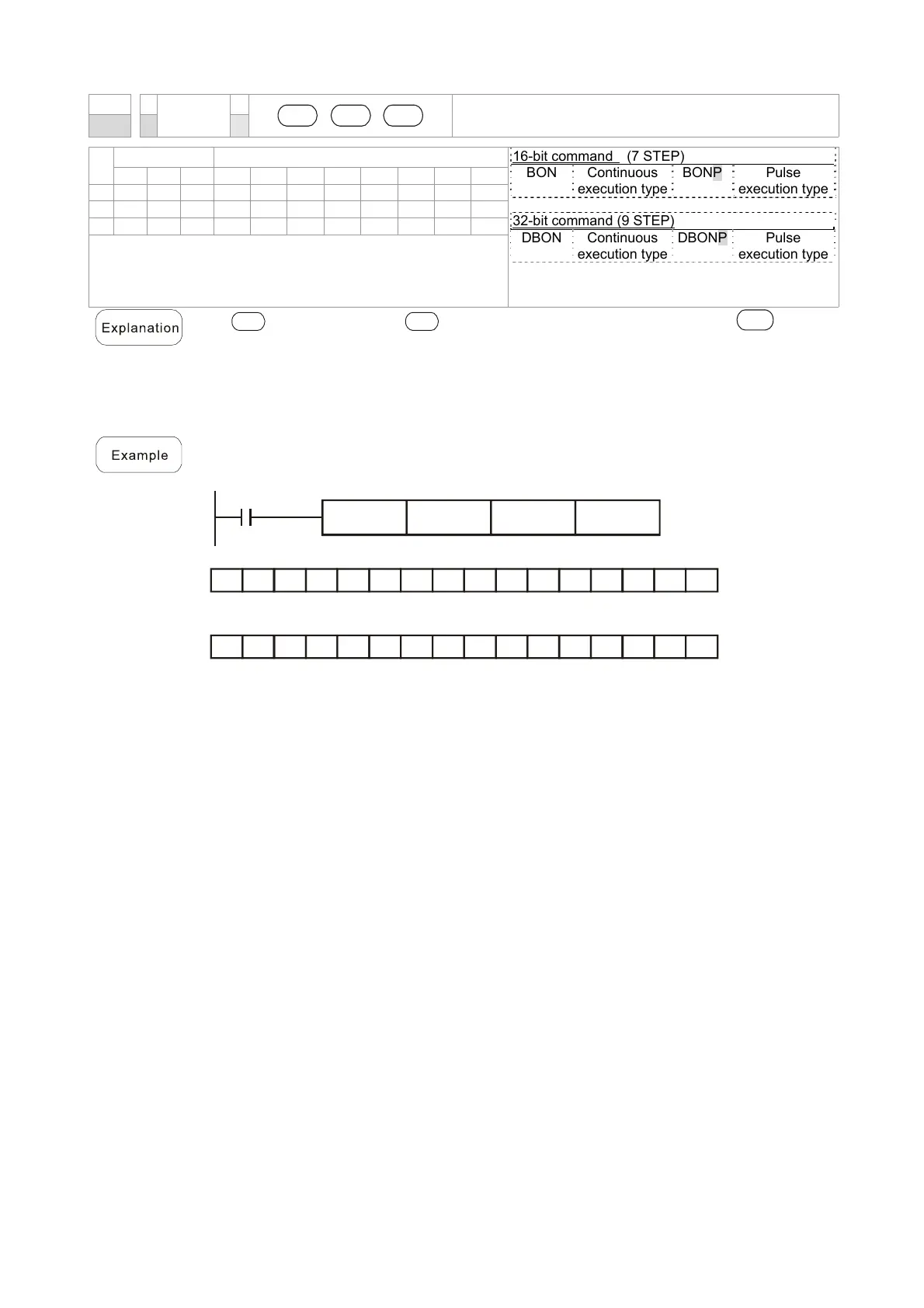

API
BON
S D
n
ON bit judgement
44
D P
Bit device Word device
16-bit command (7 STEP)
BON Continuous
execution type
BONP Pulse
execution type
32-bit command (9 STEP)
DBON Continuous
execution type
DBONP Pulse
execution type
Flag signal: none
X Y M K H KnX KnY KnM T C D
S * * * * * * * *
D * * * * *
n * *
Notes on operand usage: none

S
: Source device.
D
: Destination of saving judging result.
n
: assign
judged digit (numbering from 0)
 The status of specific digit from source device is shown on target position.
 Arithmetic element S uses F device, and can only use the 16-bit command.
 The valid range of arithmetic element n: n = 0–15 (16-bit), n = 0–31 (32-bit).
 When X0 = On, if the 15
th
digit of D0 is “1”, M0 is On. If it is “0”, M0 is Off.
 When X0 turns to Off, M0 remains previous status.
X0
BON D0 M0
0000 00011 100 0000
D0
K15
b0
M0=Off
b15
1000 00011 100 0000
D0
b0
M0=On
b15
