Delta VFD450C43S-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-22

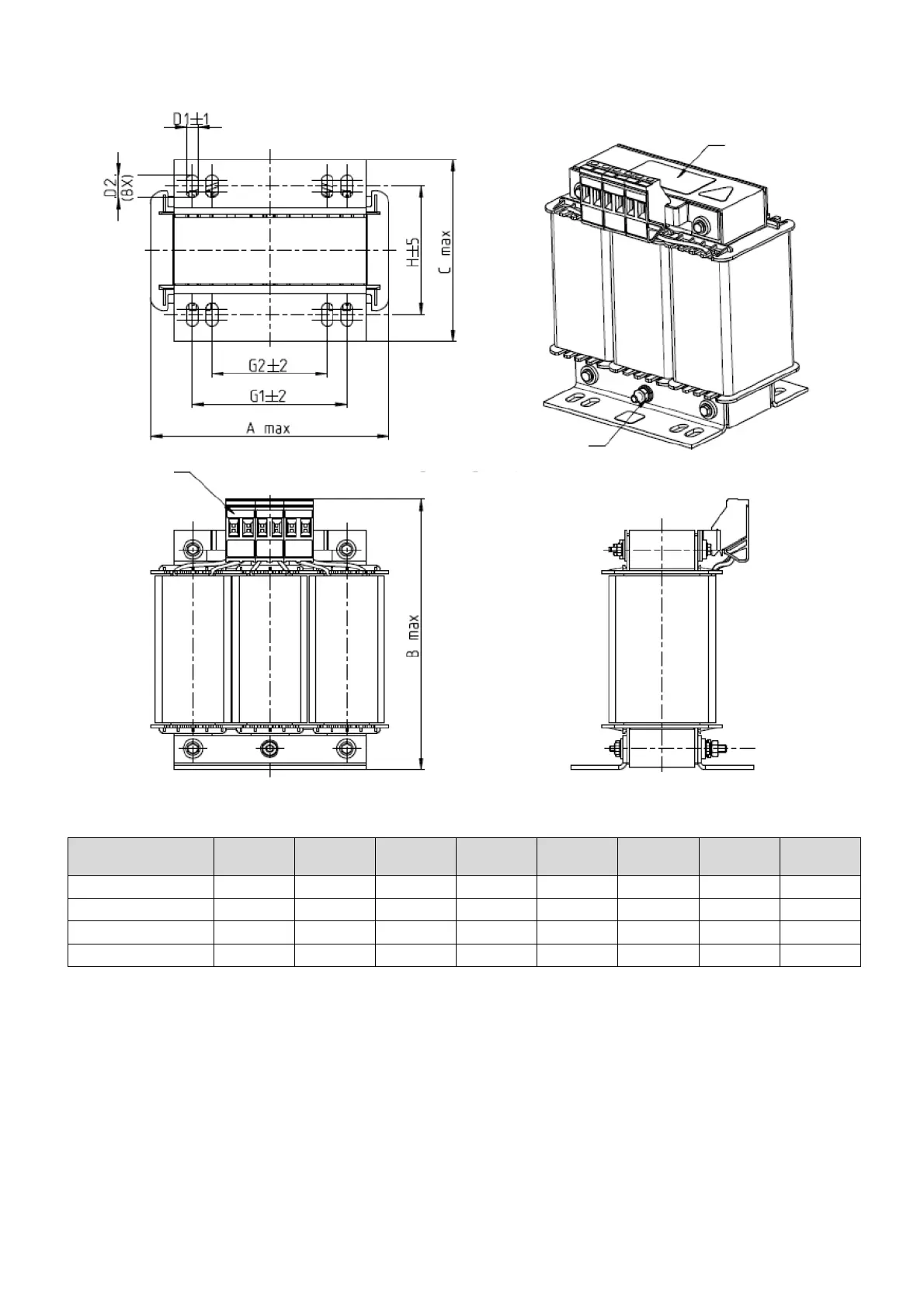

AC input reactor dimension and specifications:
Figure 7-7
Unit: mm
AC Input Reactors
Delta part #
A B C D1*D2 H G1 G2 PE D
DR005A0254 100 115 65 6*9 45 60 40 M4
DR008A0159 100 115 65 6*9 45 60 40 M4
DR011A0115 130 135 95 6*12 60 80.5 60 M4
DR017AP746 130 135 100 6*12 65 80.5 60 M4
Table 7-25
Marking
PE bolt
Torque: 11.2–13.3 kg-cm /
(9.7–11.5 lb-in) /
(1.1–1.3 Nm)
Torque: 6.1–8.2 kg-cm /
(5.3–7.1 lb-in) /
(0.6–0.8 Nm)
Screw length must
not interfere with
the mounting holes
