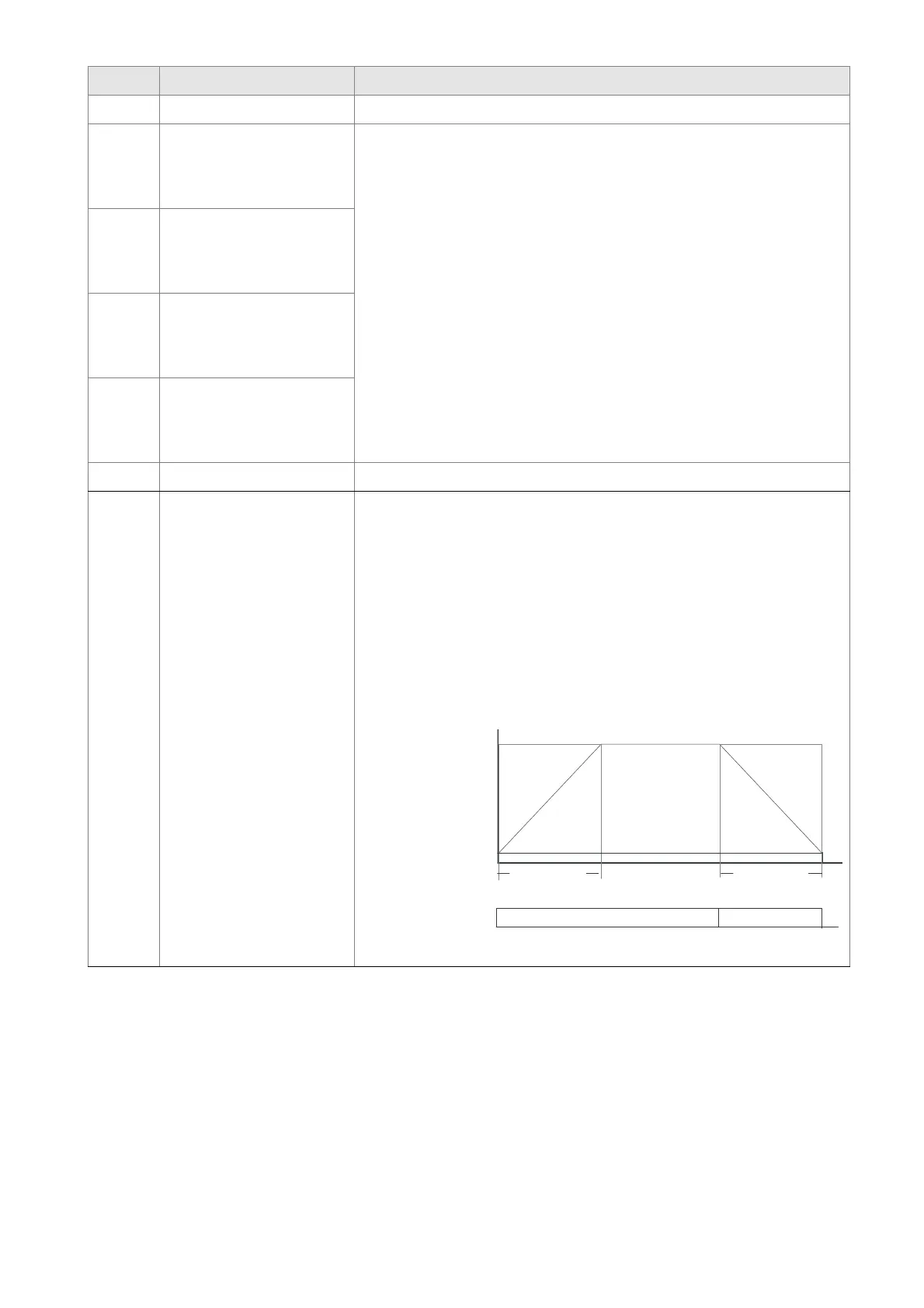

Chapter 12 Description of Parameter SettingsME300
12.1-02-4
Settings Functions Descriptions
0 No function
1
Multi-step speed
command 1 / multi-step
position command 1
You can set 15 steps of speed or 15 positions with the digital
status of these 4 terminals. You can use 16-steps of speed if you
include the master speed when setting as 15 steps of speed
(refer to Parameter Group 04
Multi-step Speed Parameters).
2
Multi-step speed
command 2 / multi-step
position command 2
3
Multi-step speed
command 3 / multi-step
position command 3
4
Multi-step speed
command 4 / multi-step
position command 4
5 Reset Use this terminal to reset the drive after clearing a drive fault.
6 JOG operation
This function is valid when the source of the operation command
is the external terminals.
The JOG operation executes when the drive stops completely.
While running, you can still change the operation direction, and
the STOP key on the keypad is valid.
Once the external terminal receives the OFF command, the
motor stops in the JOG deceleration time. Refer to
Pr.01-20–01-22 for details.
Pr.01-20
Pr.01-21
ON
OFF
MIx-
GND
Pr.01-22
JOG frequency
Pr.01-07
Min. output frequency
JOG accel. time
JOG decel. time
Mix: external terminal
