Chapter 5 Main Circuit TerminalsMS300
5-11

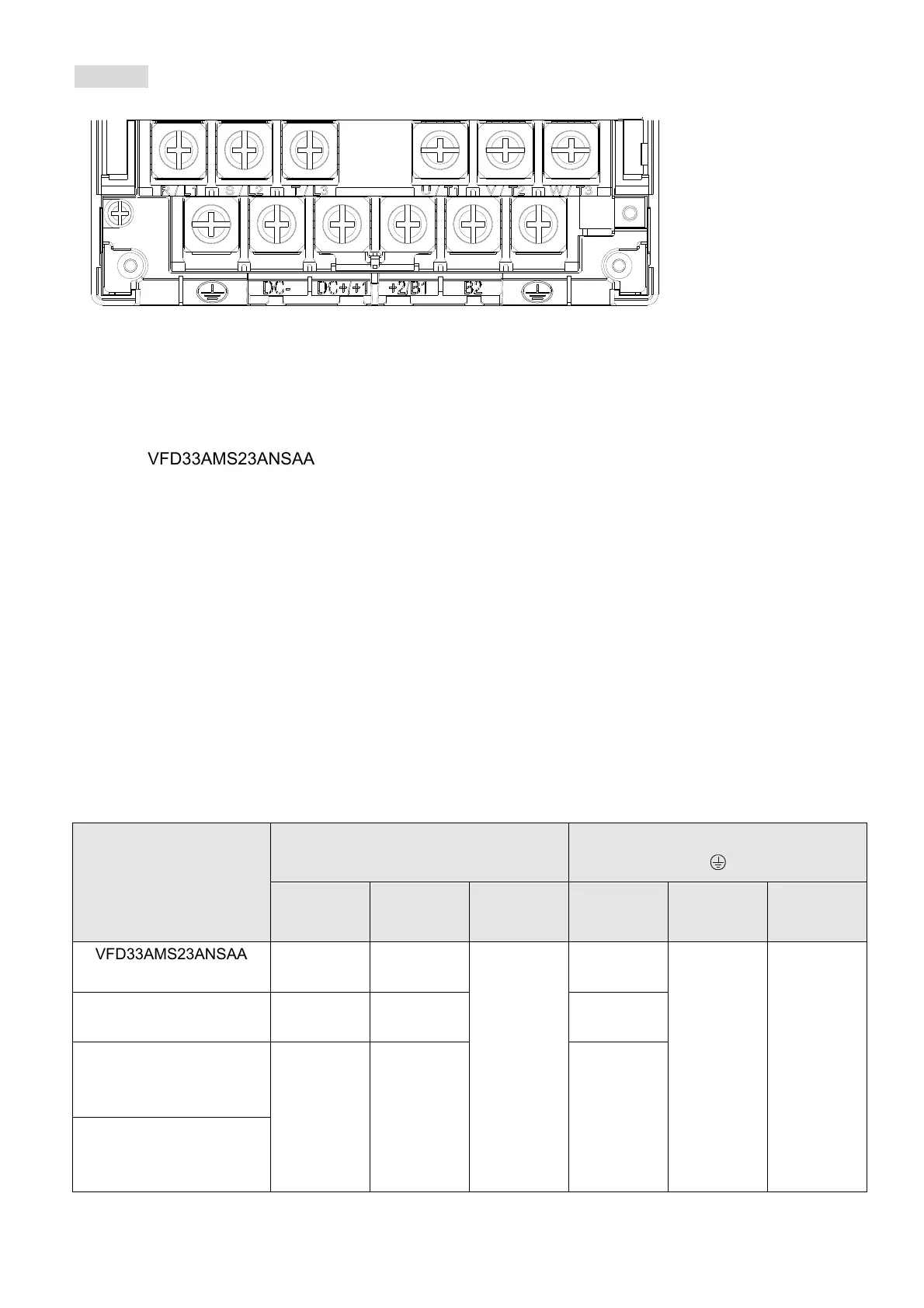

Frame E
Figure 5-12
If you install at Ta 50°C above environment, use copper wires that have a voltage rating of 600 V and
are temperature resistant to 90°C or above.
If you install at Ta 50°C environment, use copper wires that have a voltage rating of 600 V and are
temperature resistant to 75°C or 90°C.
For VFD33AMS23ANSAA and VFD33AMS23ENSAA models: If you install at Ta 40°C above
environment, use copper wires that have a voltage rating of 600 V and are temperature resistant to
90°C or above.
For VFD49AMS23ANSAA and VFD49AMS23ENSAA models: If you install at Ta 35°C above
environment, use copper wires that have a voltage rating of 600 V and are temperature resistant to
90°C or above.
For VFD32AMS43ANSAA, VFD32AMS43ENSAA, and VFD32AMS43AFSAA models:
If you install at Ta 45°C above environment, use copper wires that have a voltage rating of 600 V and
are temperature resistant to 90°C or above.
To be UL installation compliant, you must use copper wires when installing. The wire gauge is based
on a temperature resistance of 75°C, in accordance with UL requirements and recommendations.
Do not reduce the wire gauge when using high-temperature resistant wires.
**Wire these drives by ring lugs with specified dimensions.
Models
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
DC-, DC+/+1, +2/B1, B2
Grounding Terminals
Max. Wire
Gauge
Min. Wire
Gauge
Screw Size
& Torque
(±10%)
Max. Wire
Gauge
Min. Wire
Gauge
Screw Size
& Torque
(±10%)
VFD33AMS23ANSAA
16 mm
2
[6 AWG]
16 mm
2
[6 AWG]
M5
25 kg-cm
[21.7 lb-in.]
[2.45 Nm]
16 mm
2
[6 AWG]
16 mm
2
[6 AWG]
M5
25 kg-cm
[21.7 lb-in.]
[2.45 Nm]
VFD33AMS23ENSAA
VFD49AMS23ANSAA**
25 mm
2
[4 AWG]
25 mm
2
[4 AWG]
25 mm
2
[4 AWG]
VFD49AMS23ENSAA**
VFD25AMS43ANSAA
16 mm
2
[6 AWG]
16 mm
2
[6 AWG]
16 mm
2
[6 AWG]
VFD25AMS43ENSAA
VFD25AMS43AFSAA
VFD32AMS43ANSAA
VFD32AMS43ENSAA
VFD32AMS43AFSAA
Table 5-7
To Next Page
