Chapter 7 Optional AccessoriesCP2000
7-101
Frame F
Applicable model
VFD1600CP43A-00; VFD1600CP43A-21; VFD1850CP43B-00; VFD1850CP43B-21; VFD1600CP63A-00;
VFD1600CP63A-21; VFD2000CP63A-00; VFD2000CP63A-21
Fan model『MKC-FFKM』Heat Sink Fan

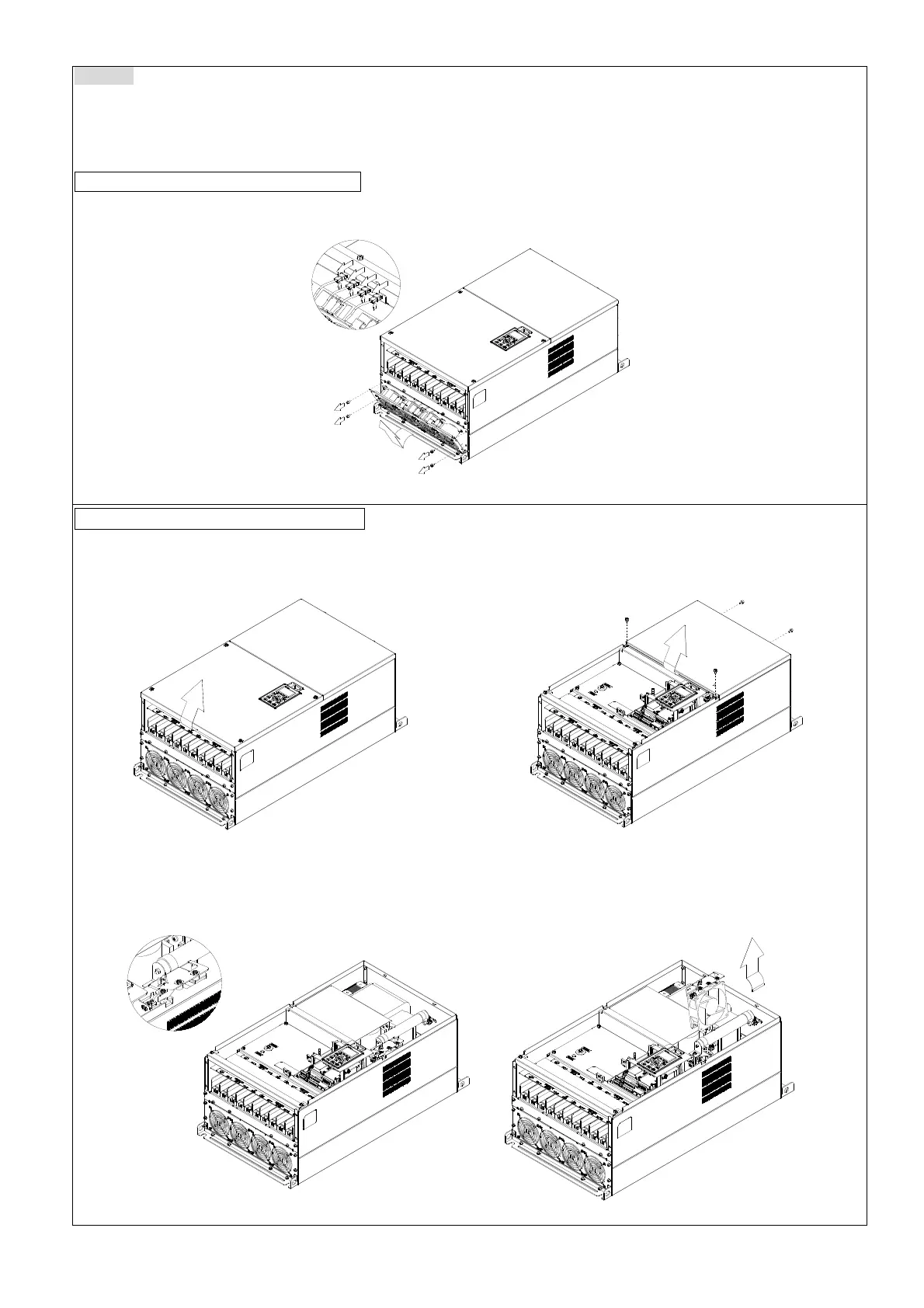

1. Loosen the screws and plug out the power of fan before removing it (figure 1). Screw torque: 24–26 kg-cm /
[20.8–22.6 Ib-in.] / [2.4–2.5 Nm]
1
4
3
2
Figure 1
Fan model 『MKC-FFKB』Capacitor Fan
1. Loosen the screw (figure 1) and remove the cover.
Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] /
[1.2–1.5 Nm]
1
3
2
4
Figure 1
2. Loosen the screw (figure 2) and remove the cover.
Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]
8
7
6
5
Figure 2
3. Loosen the screws and remove the fan. (figure 3 and figure 4)
Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] / [1.2–1.5 Nm]
11
10
9
11
10
9
Figure 3 Figure 4
