DEMA ATLAS 844P Series User Manual

DEMA ATLAS 844P
™
SERIES
LAUNDRY CONTROL
I-907 Page 6 of 17
Rev. C-33371

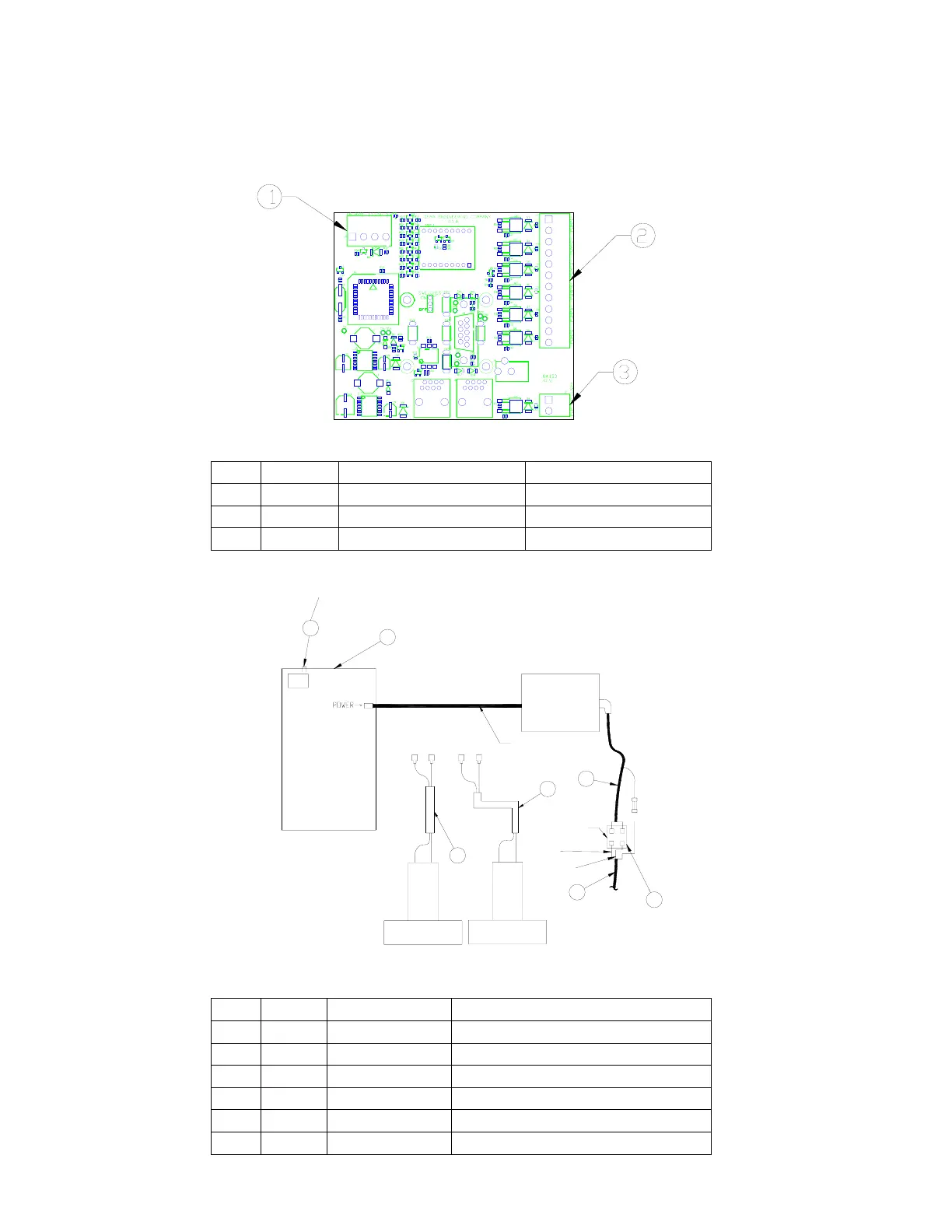

NO. QTY. PART NO. DESCRIPTION
1 6 81-13-4 Modular Connector
2 1 81-13-2 Modular Connector
3 1 81-13-4 Modular Connector
GREEN/YELLOW
SWITCH
MOUNTED ON
ACCESS PANEL
MOTORMOTOR
3
6
5
BROWN
BLACK
LOW VOLTAGE
POWER CABLE W/
BARRER PLUG
JUMPER CABLE MUST
CONNECT ACROSS THE
PAIR OF "FLUSH SW"
TERMINALS
2
1
4
3
NO. QTY. PART NO. DESCRIPTION
1 1 84-153-1 Control Board & Display Assy.
2 1 82-7-2 Jumper Line
3 2 81-196-4 Cable Assy.
4 1 84-125-4 Power Supply Cable
5 1 80-106-4 Power Cable
6 1 81-186-7 Access Panel Assy.
