NOTE
Solvents, benzene, degreaser, etc. can damage the button material.
i
All buttons on the DRC-MJ D3 hand-held transmitter are provided with the
corresponding foil symbols as standard.
If requested by the owner, other symbols can be applied to the radio control
system.
The owner then has to remove the existing symbols and apply the required
symbols. Note that the functions of the individual buttons are pre-defined when the
radio control system is used in connection with a DR/DMR hoist unit.
To replace the symbols, proceed as follows:
• The buttons must be free of adhesive, dust and grease. Clean, as required, with
spirit or alcohol.

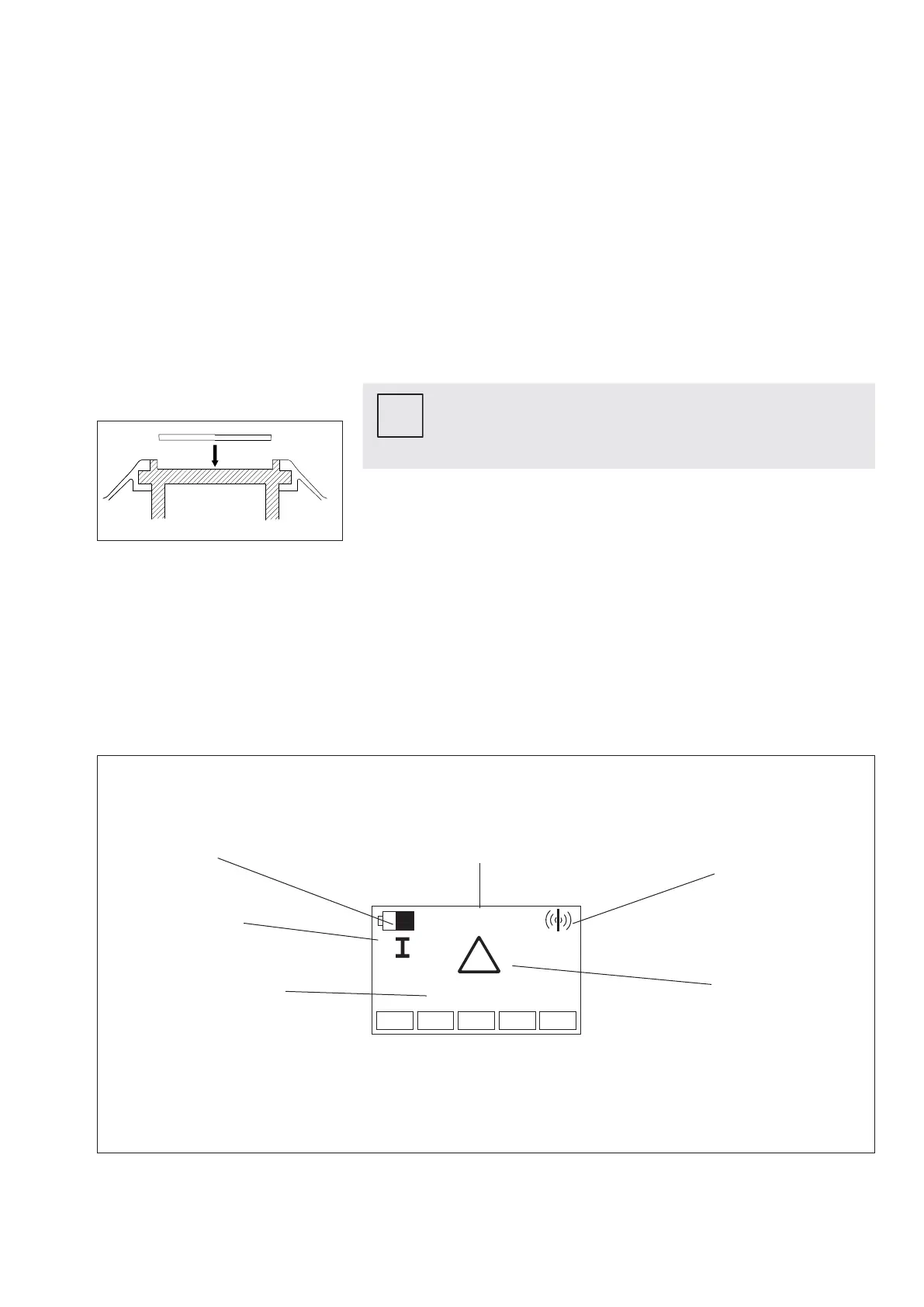

6.4.2 with LED screen
42055744.eps
42694944.eps
K564
0005
DRC-MP radio receiver screen
Battery capacity
Crane ID
Radio signal strength
1st main row with
large icon or numerical
display
Selected crab(s)
2nd main row with alpha-
numerical display
The DRC-MJ D3 hand-held transmitter has a screen. All important data that are
needed for operation of the crane to be controlled are shown on the screen.
The number of information items displayed varies depending on the type of radio
receiver. The scope of display functions includes the general displays which are
available for both DRC radio receiver types. Additional information can only be
used with DRC-DR radio receivers.
At temperatures below 0 °C, the contrast of the LCD screen is reduced and it takes
longer for the characters to change.
– Remove the symbol required for the relevant function from the symbol sheet.
Attach the adhesive symbols to the relevant function key. (See the button
designation diagram on page 19 for hoist unit functions)
