6.4 Identification and
screen functions
6.4.1 DRC-MJ D3 hand-held
transmitter
The LED in the DRC-MJ D3 hand-held transmitter indicates the operating status of
the hand-held transmitter:
LED Operating status
Off Hand-held transmitter is switched off or in Standby mode
Red continuously on Hand-held transmitter is in Stop mode
Flashing green Hand-held transmitter is in Run mode
Flashing red Hand-held transmitter is in quick charging mode

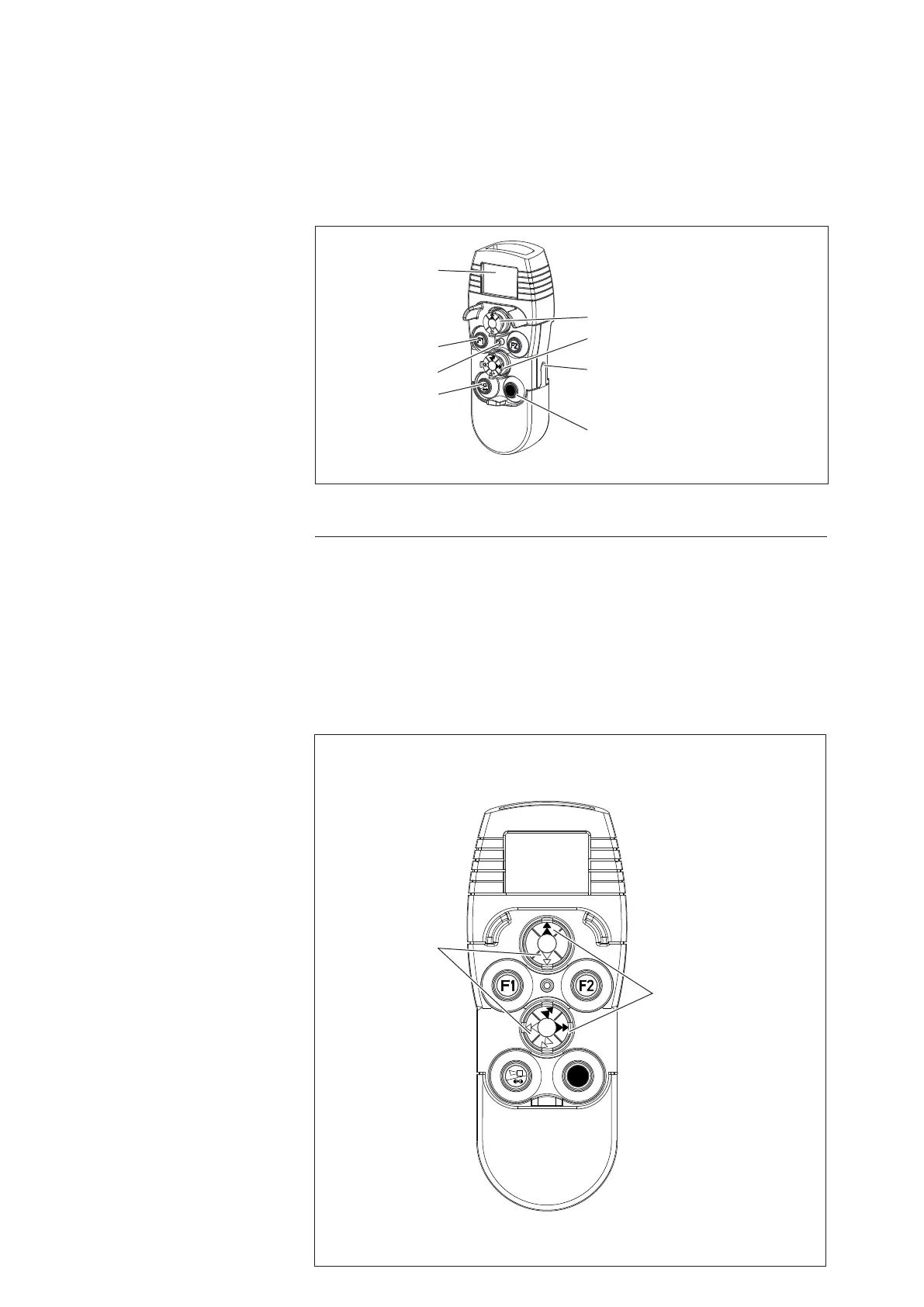

Screen
LED
Charging socket on the side of the housing
STOP button
43666844.eps
Joystick for long and cross-travel motions
2 function keys
Horn
43666944.eps
Yellow symbol
against black
background
Black symbol
against yellow
background
Button symbols
Joystick lifting/lowering motion
