Page 32

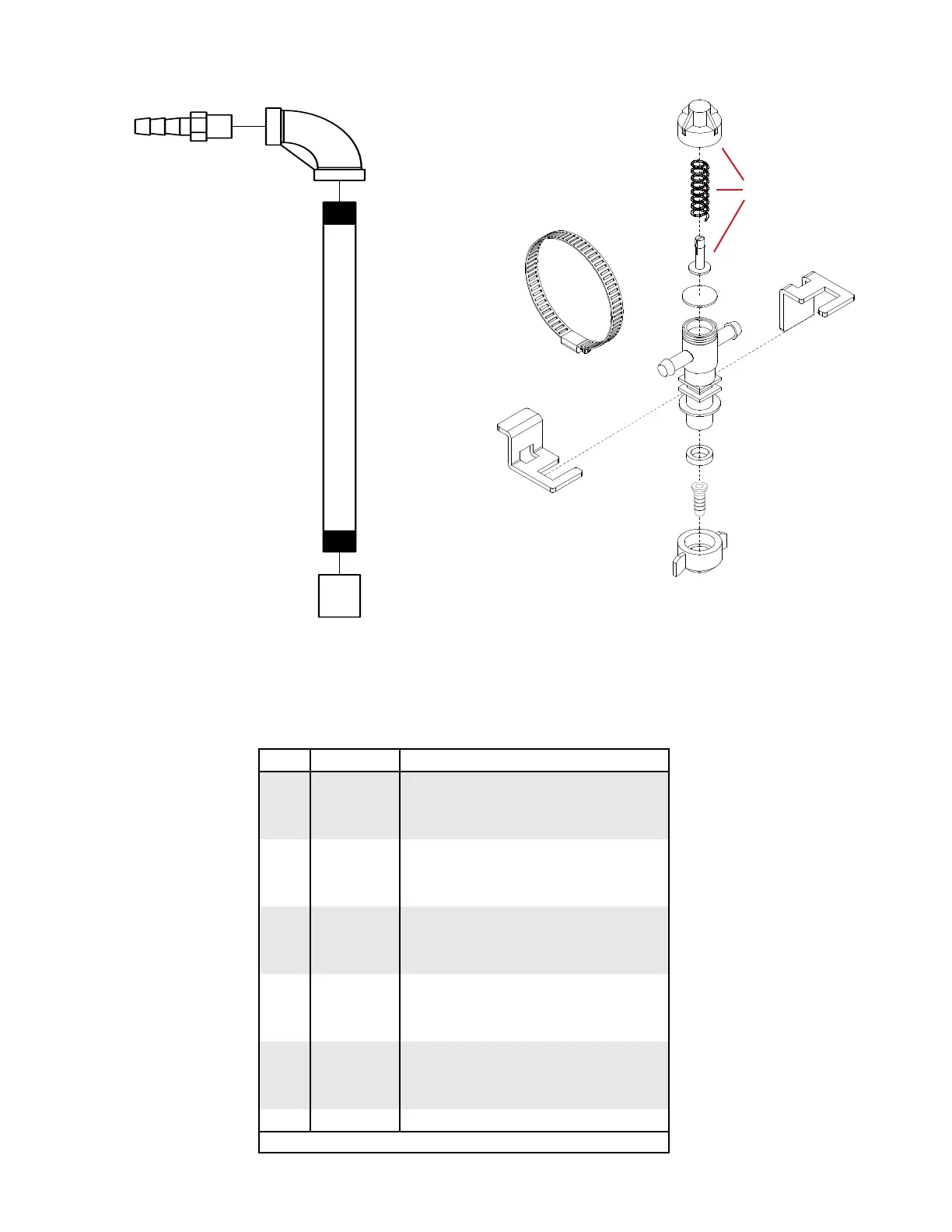

BOOM NOZZLES
NOZZLE PARTS LIST
ITEM PART # DESCRIPTION
1
09147
3/4” SINGLE END ASSEMBLY (ITEMS 1-3)
-
09148
3/4” SINGLE TEE ASSEMBLY (ITEMS 1-3)
2
21950 10PP
SPRING RETAINER CAP ASSEMBLY
3
21953VI
DIAPHRAGM (VITON)
5
07790
RED FLAT FAN CAP (W/ GASKET)
6
19438EPR
GASKET (EPDM)
7
K8400 3/8
FTG, STR .375 HOSE BARB
8
B128H
STAINLESS STEEL GEAR CLAMP
9
15121
FTG, S.S. .25” MPT X .375” HB
10
15122
FTG, S.S. ELB .25” FPT
11
15123
FTG, S.S. .25” MPT X 8” NIPPLE
12
15124
FTG, S.S. .25” FPT FEMALE COUPLER
13
15126
HI-VERIFLOW1 ADJUSTABLE REG
-
15127
VERIFLOW1 HALF RATE ADJUSTABLE REG
14
15160
STAINLESS STEEL LOWER TIP BRACKET
15
15161
STAINLESS STEEL UPPER TIP BRACKET
Please order replacement parts by PART NO., DESCRIPTION, and COLOR.
