Demco 1050 - RAVEN CONTROL SYSTEM WIRING; CONTROL MONITOR WIRES; CONTROL MONITOR SYSTEM

Page 33

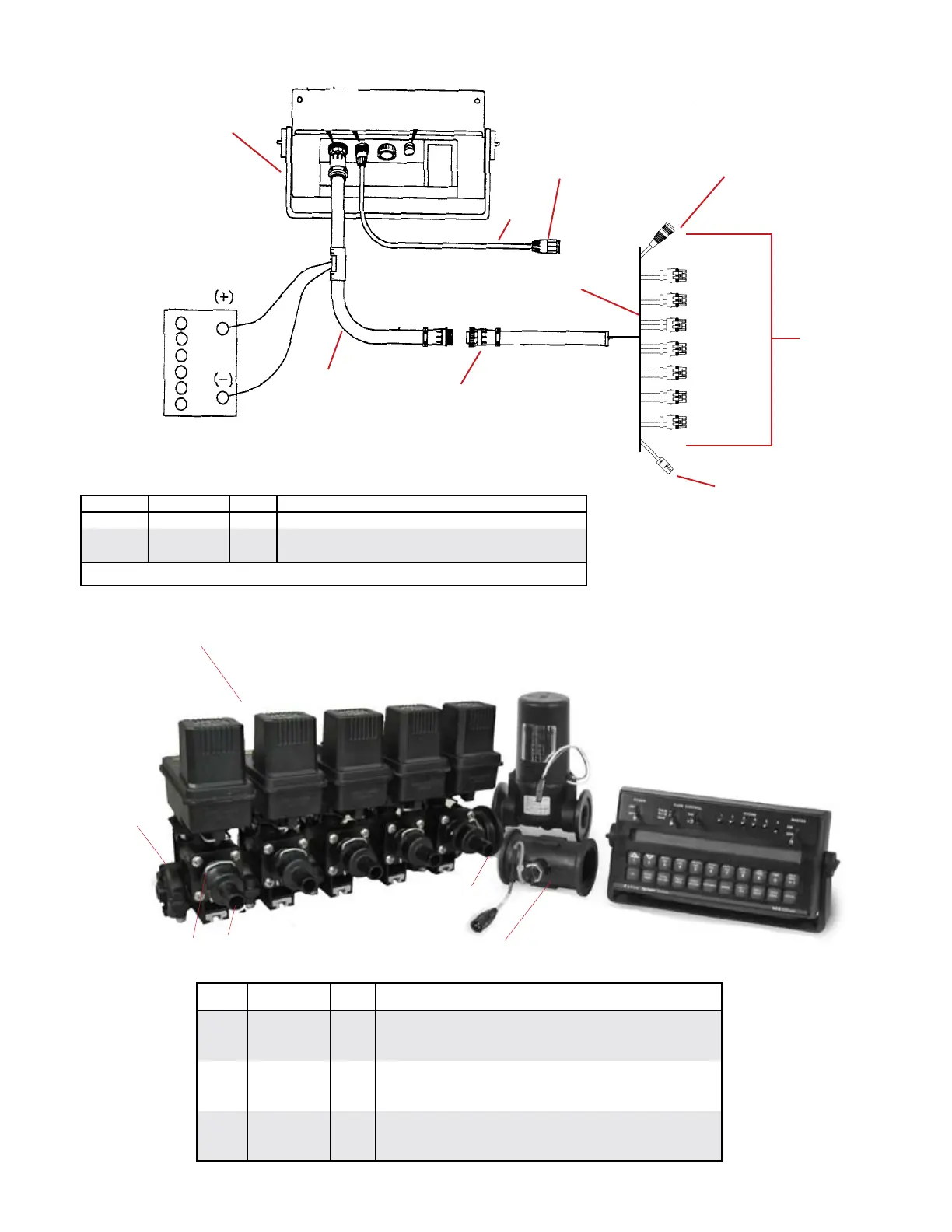

RAVEN CONTROL SYSTEM WIRING
CONTROL MONITOR WIRES
REF # PART # QTY DESCRIPTION
1.
10960
1 10’ Console Control Cable
2. 1 Flow Control Cable
3.
10046
1 12’ Speed Sensor Harness
Please order replacement parts by PART NO. and DESCRIPTION.
1
2
3
TO SPEED SENSOR / ANTENNA
RED
WHITE
CONSOLE
TO FLOW METER
TO REGULATOR
VALVE
TO BOOM
BALL
VALVES
SIGNAL
WIRES
BLACK1
BROWN2
BLUE3
BLK/WHT4
BRN/WHT5
BLU/WHT6
WHT/BLK7
4
2
1 (SHOWN HERE IN A BANK OF FIVE)
3
5,6
7
8
9
CONTROL MONITOR
REF # PART # QTY DESCRIPTION
1.
16661
1 BALL VALVE
2.
10826
- RAVEN 450 CONSOLE (5 SECTION - SHOWN)
3.
12780
1 FLOW METER
4.
10311
1 1” REGULATING BUTTERFLY VALVE
5.
09859
- TEEJET CLAMP AND O-RING
6.
09858
- TEEJET O-RING (NOT SHOWN)
7.
FA200 100
- 2” FLANGE TO 1” FLANGE FITTING
8
09856
- S.S. CLIP FOR FITTING
9
09857
- OUTLET STRAIGHT FITTING
CONTROL MONITOR SYSTEM
