HJ26141 Page 5

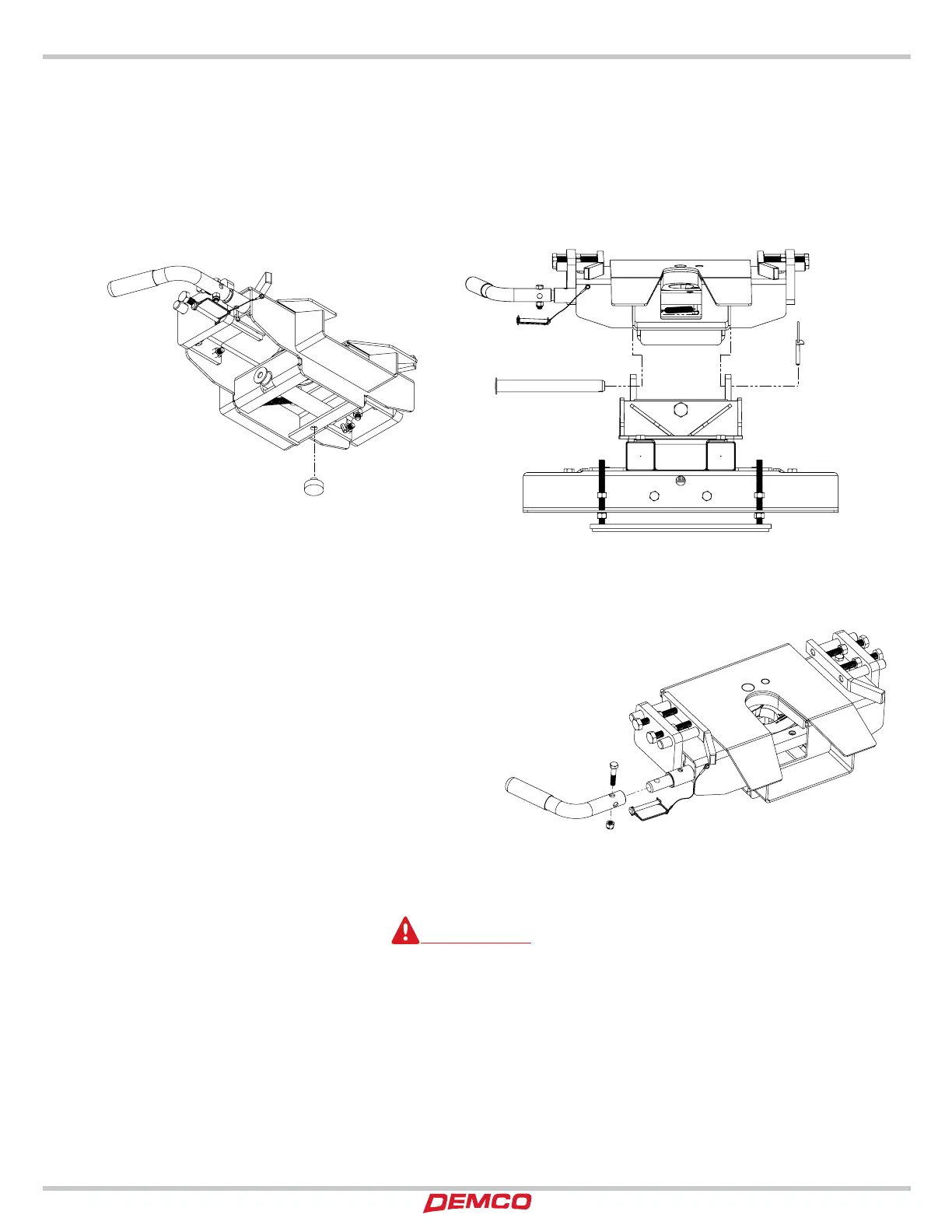

5TH WHEEL DOUBLE PIVOT HEAD ASSEMBLY
The dampener stops the hitch head from flopping back and forth in the truck when the trailer is not hooked up. The ure-
thane compresses under load so it does not restrict the fore and aft movement when coupled.
Before attaching the hitch head to the saddle assembly the urethane dampener will need to be installed. It is included
in the bag with the bolt and nut for the hitch handle. Simply press into hole that is punched into the bottom side of the
hitch as shown below.
Note (Read carefully before installing): Handle can be posi-
tioned toward the front or the back if it is found to interfere
with the trailer in any way. Verify this before traveling.
Slide yellow gripped handle over locking bar, the handle 1.
may point forward, upward or backward. **DO NOT have
pointing upward if it is found to interfere with the trailer in
any way during turning.
Fasten with 3/8” x 1 ¾” bolt and lock nut provided.2.
HANDLE ASSEMBLY INSTRUCTIONS
INSTALLTION
DO NOT install hitch handle in a position that the pin box could come in contact with or interfere with the latch of the
hitch handle when turning! If the pin box contacts the hitch handle or its latch when turning, the trailer may become
unhitched.
WARNING
