HJ26141 Page 9
,7(0
3$57
'(6&5,37,21
47<
%2/71&;*5+(;
1871&/2&.1</21,16(57
1&1</21,16(57/2&.187
%2/71&;+(;+($'*5
+($9<:$6+(5
%2/71&;+(;+($'*5
+,1*(%86+,1*
6&5(:1&;)/$7+'3+,/
&/(9,663$&(5:$6+(5
85(7+$1(%803(5
/<1&+3,1
$63,9273,1;
%($5,1*63$&(56/((9(
52//(5
$8726/,'(%2;)5$0(
$6833(56/,'($66(0%/<
$6/2:(5*8,'($50$66(0%/<
0$,152//(5
$6:($53/$7(
WK:+((/+($'<2.(
%86+,1*,*8600,';002';00/*
%86+,1*PP,';002';00/*
2875,**(5%$5$66(0%/<
7+:+((/'3+($')$6

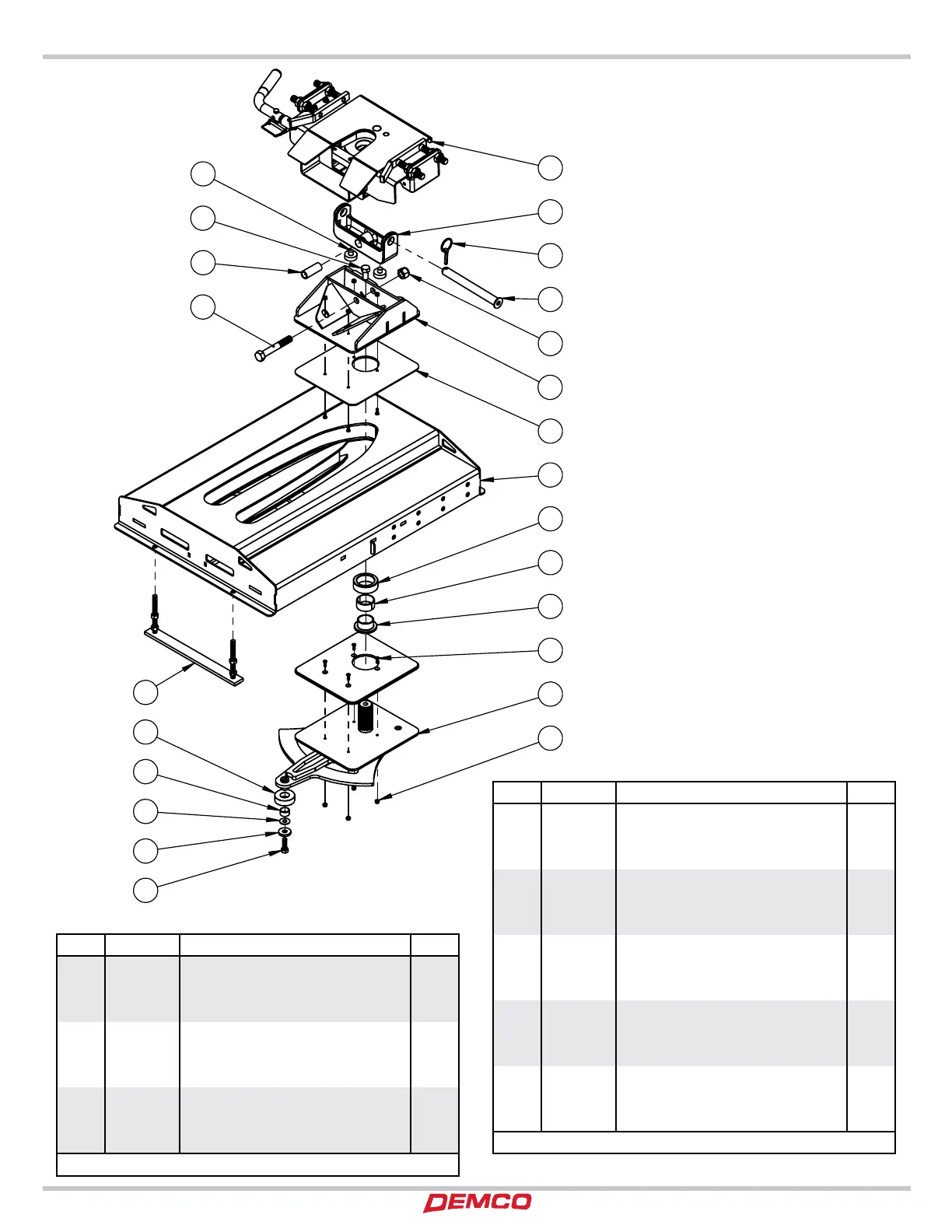

6141 Parts Breakdown
PARTS BREAKDOWN
6141 PARTS BREAKDOWN
ITEM PART # DESCRIPTION QTY
1 01254 BOLT, .50 NC X 1.50 GR.5 HEX 1
2 02772 NUT, .25NC LOCK NYLON INSERT 8
3 02961 .75NC NYLON INSERT LOCK NUT 1
4 05366 BOLT, .625 NC X 1.25 HEX HEAD GR.5 1
5 07908-95 HEAVY WASHER 1
6 11099 BOLT, .75 NC X 5.00 HEX HEAD GR. 8 1
7 11337-95 HINGE BUSHING 1
8 11779 SCREW, .25NC X .75 FLAT HD PHIL 8
9 13317 CLEVIS SPACER WASHER 1
Please order replacement parts by PART NO. and DESCRIPTION
ITEM PART # DESCRIPTION QTY
10 14219 URETHANE BUMPER 2
11 14221 LYNCH PIN, .313 1
12 14222-95 AS PIVOT PIN 1” X 9.38 1
13 14714-95 BEARING SPACER/SLEEVE 1
14 14985-95 ROLLER 1
15 15414-76 AUTOSLIDE 5.5’ BOX FRAME 1
16 15415-76 AS UPPER SLIDE ASSEMBLY 1
17 15416-76 AS LOWER GUIDE ARM ASSEMBLY 1
18 15418-95 MAIN ROLLER 1
19 15419 AS WEAR PLATE 2
20 15778-76 5th WHEEL HEAD YOKE 1
21 16235 GUIDE ROLLE BUSHING 1
22 16689 MAIN ROLLER BUSHING 1
23 6018 OUTRIGGER BAR ASSEMBLY 1
24 6081 5TH WHEEL DP HEAD F/AS 1
Please order replacement parts by PART NO. and DESCRIPTION
