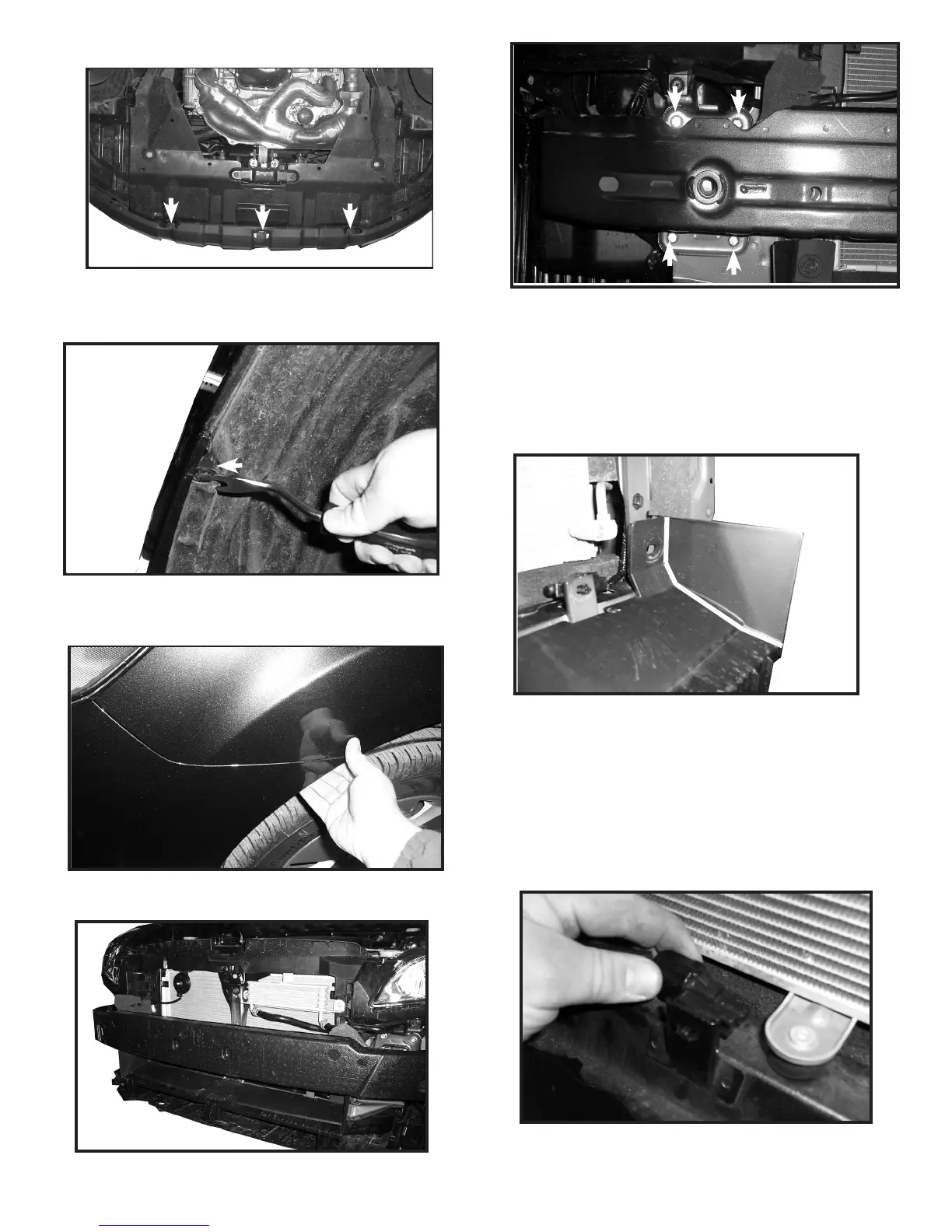

Demco BASE PLATE - Fender Fastener Removal; Fascia and Bumper Component Removal; Bumper Bolt Removal and Air Deflector Trim; Temperature Sensor Relocation

7. Remove four bolts on each side from bumper and set
bumper aside. NOTE: These bolts will not be reused.
4. Remove 1 plastic push fastener from inside fender on
each side.
9. Remove temp sensor from bracket and replace in the back
of the mount.
6. Remove Styrofoam from front of bumper and set aside.
5. Pull on the outer corner of the facia outward and down
to Remove Facia. Unplug fog lights if equipped.
8. Trim air deflector as shown to allow crossmember to fit in
front.
3. Remove 3 plastic push fastener from behind the front
facia.
