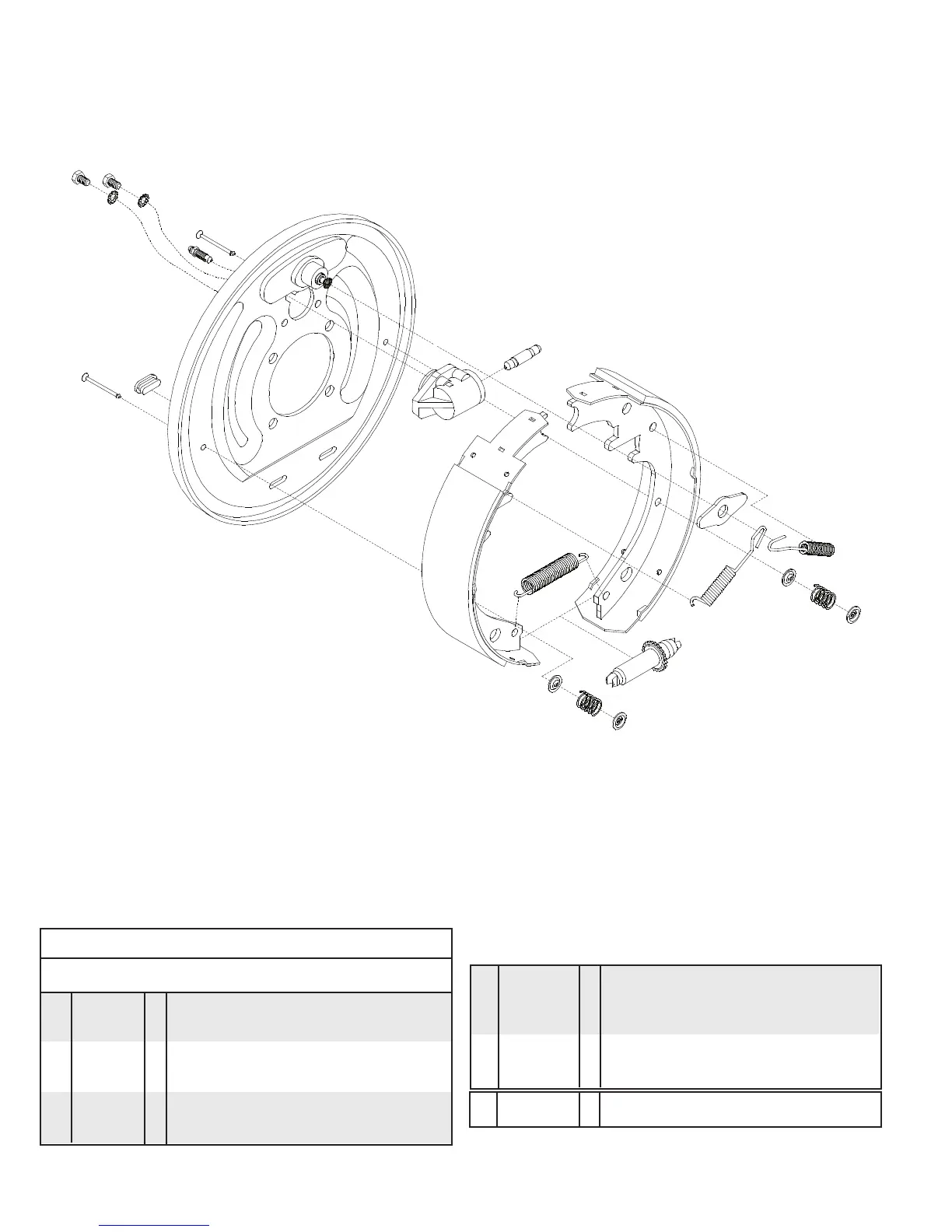

13” UNI-SERVO BRAKE CLUSTER PARTS BREAKDOWN
BRAKE CLUSTER PARTS LIST
REF. PART
NO. NO. QTY. DESCRIPTION
- 07911 - Right Hand Cluster (shown)
- 07910 - Left Hand Cluster
1. - 1 Back Plate (not available)
2. 5509 1 Brake Shoe Kit (2 Front & 2 Rear)
3. SB9776M 1 Wheel Cylinder Assembly - Right ( shown)
- SB9777M 1 Wheel Cylinder Assembly - Left
4. SB9783 1 Push Rod
5. SB9254 2 Cover Plate - Adjusting Hole
6. 05961 2 5/16”-18UNC x 5/8” Hex Head Bolt
7. 05424 2 5/16” External Tooth Washer
8. 05431 1 Bleeder - Replacement
- SB15845 1 Wheel Cylinder Repair Kit
(includes spring, cup and boot)
Please order replacement parts by PART NO. and DESCRIPTION.
9. SB10961-95 1 Shoe Guide
10. SB9789 4 Cup - Shoe Hold Down
11. 05983 2 Spring - Shoe Hold Down
12. SB9786 2 Spring - Shoe
13. SB23324 1 Adjusting Screw Assembly
14. SB24765 1 Spring - Adjusting Screw
15. SB9788 2 #6 Hold Down Pin
