Page 21
13
7
6
16
9
14
8
15
12
16
7
13
9
17
7
9
3
1
10
8
7
9
12
12
12
6
9
4
3
1
3
1
11
REF. PART
NO. NO. QTY. DESCRIPTION
1. 00084 4 1/2” Lockwasher
2. 00492 4 3/4” Flatwasher
3. 00967 4 1/2” - 13 UNC x 1-1/4” Hex Head Bolt
4. 05047 4 3/4” - 10 UNC x 2 1/2” Hex Head Bolt
5. 01253 4 1/2” - 13 UNC x 2” Hex Head Bolt
6. 01254 4 1/2” - 13 UNC x 1-1/2” Hex Head Bolt
7. 01335 4 3/4” - 10 UNC x 3-1/2” Hex Head Bolt
- 01335 8 3/4” - 10 UNC x 3-1/2” Hex Head Bolt (750 bu.)
8. 02178 4 1/2” - 13 UNC Nylon Insert Locknut
9. 02961 8 3/4” - 10 UNC Nylon Insert Locknut
- 02961 12 3/4” - 10 UNC Nylon Insert Locknut (750 bu.)
10. 14972-95 4 Bolster Washer (plated)
Please order replacement parts by PART NO., DESCRIPTION and COLOR.
REF. PART
NO. NO. QTY. DESCRIPTION
11. 12293 8 Plastic Bushing
12. 13103-30 4 Bolster Bolt
13. 13105-30 2 Torsion End Link
14. 13107-30 1 Torsion Housing
15. 13108-30 2 Bolster Link
16. 13109-30 2 Ball Joint Link
17. 13253 1 Torsion Bar (Qty:2 750 bu.)
18. 14345-30 2 Torsion End Link (750 bu.)
19 14346-30 2 Torsion End Link, Top (750 bu.)
20. 14347-30 2 Connection Link (750 bu.)
21. 14349-30 2 Torsion Housing (750 bu.)
2
11
11
11

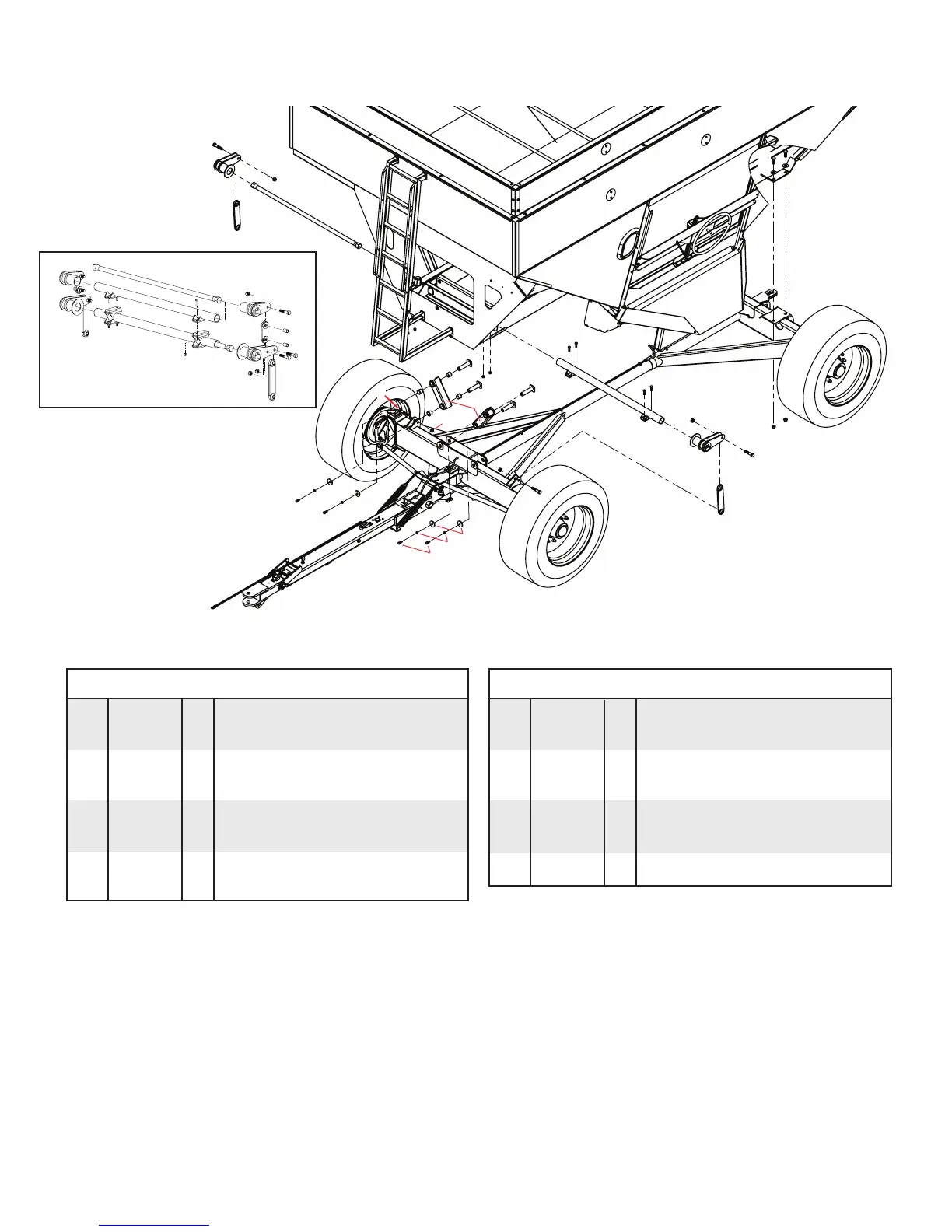

MOUNTING THE WAGON TO THE RUNNING GEAR ASSEMBLY
,7(0
3$57 '(6&5,37,21
47<
%2/71&;*5+(;
%2/71&;*5+(;
%2/71&[+(;
1871&/2&.1<,16(57
1&1</21,16(57/2&.187
7256,21+286,1*$66(0%/<
%$//-2,17/,1.
7256,21%$5
7256,21(1'/,1.
7256,21(1'/,1.
7256,21&211(&725/,1.
%86+,1*
7256,21+286,1*$66(0%/<
21
20
19
18
17
17
16
9
9
7
7
8
750 Bushel Wagon Torsion Assembly
10
10
5
14
