Page 24
Fenders on 550-750 Gravity Flow
Slope Side
Door Side
12205 & 12206
is the slope side
12207 & 12208
is the door side
Note: Be Careful NOT to Drill through light wire

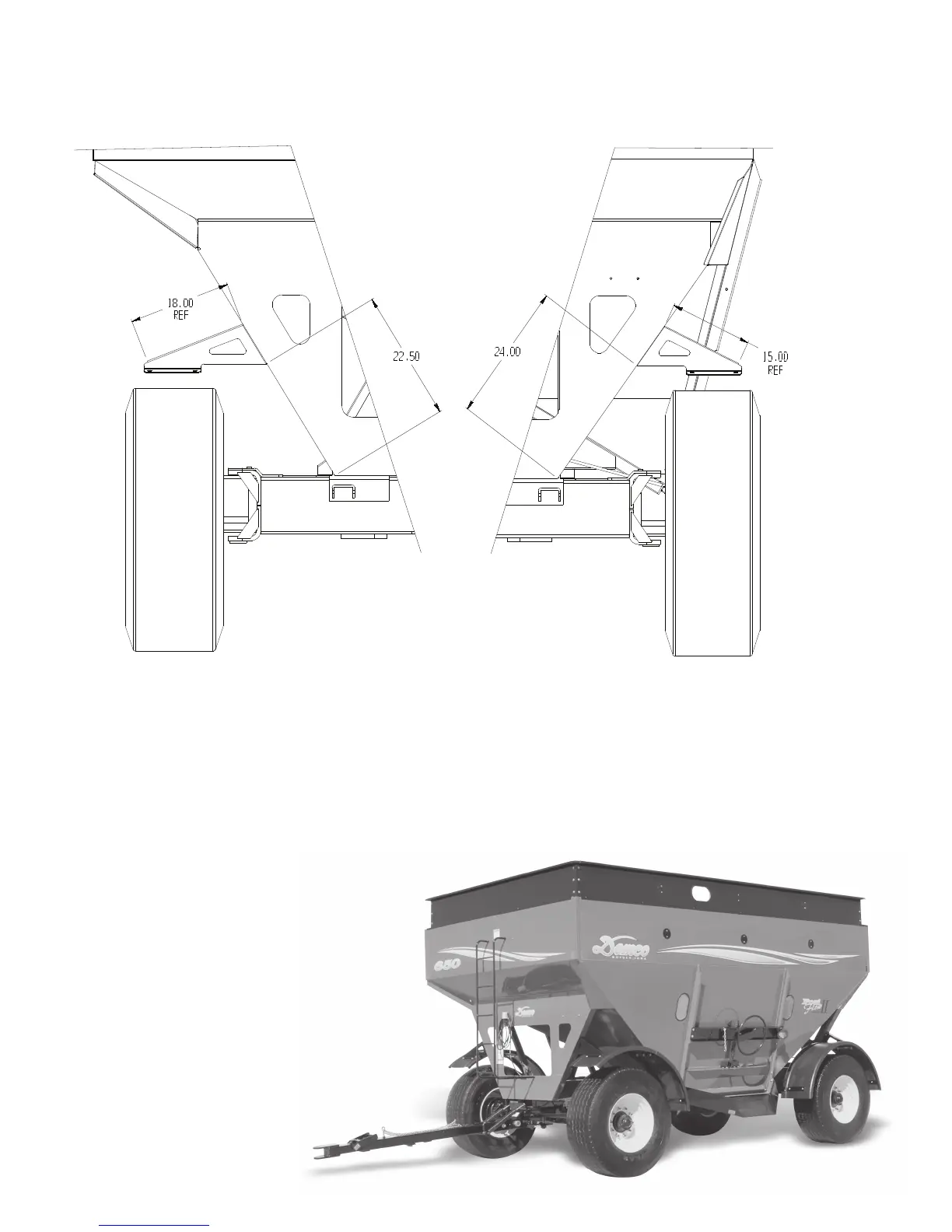

Clamp fender mounts to wagon corner posts at
dimensions shown above.
Using the fender mounts as a guide, drill 11/32” dia
holes through corner posts of wagon. The wiring
harness is located on the slope side corner posts. Be
careful NOT to drill through the wiring harness.
