Dennis FT430 - Page 15

15
FT & Super Six SP20001_REV_4

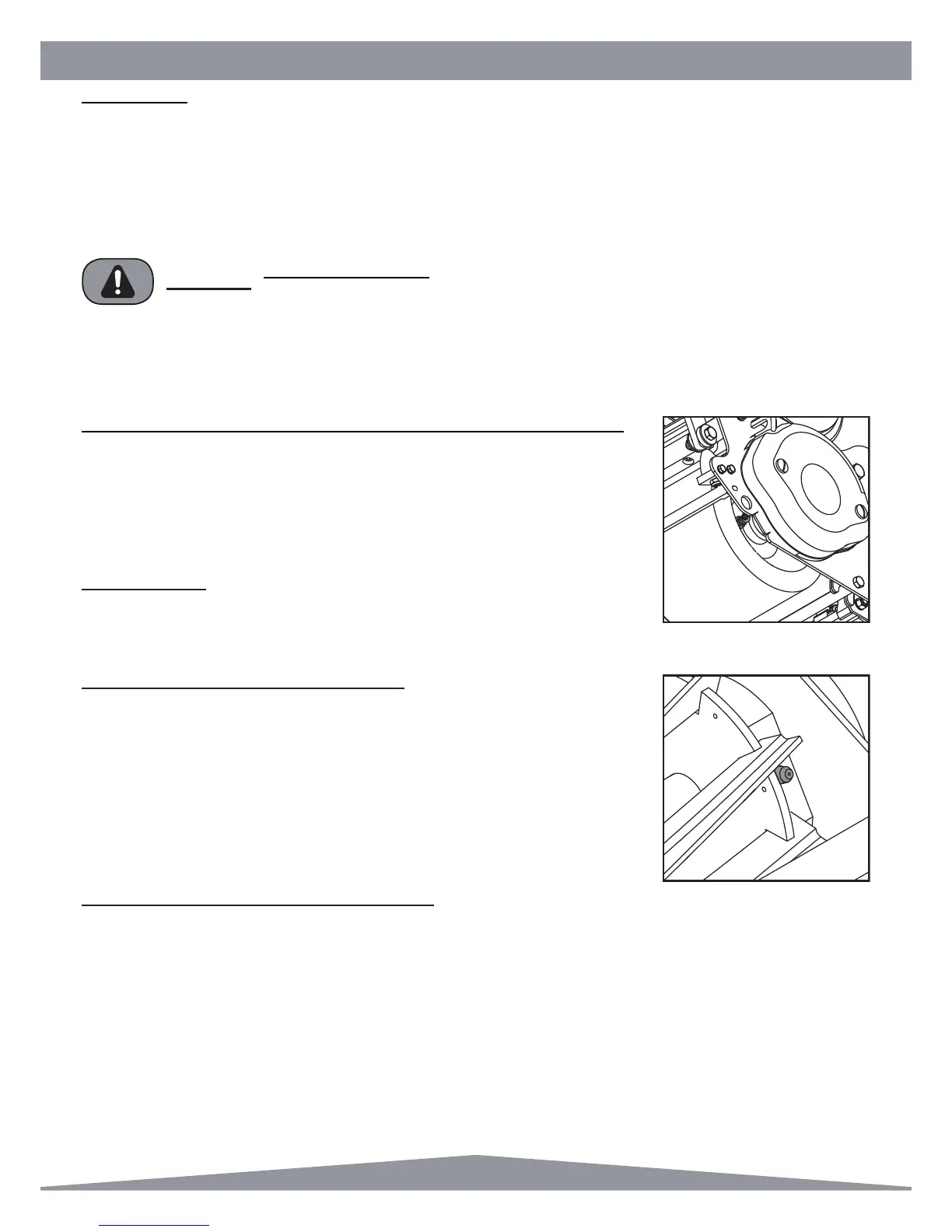

*HQHUDO/XEULFDWLRQ
5($552//(5
The centre section gear case chamber of the rear roller is an assembly in two halves and contains the epicyclic gear
system, which runs in an oil bath.
7KHFKDPEHULVFKDUJHGZLWKJHDURLO(3EHIRUHWKHPDFKLQHOHDYHVWKHZRUNVDQGVKRXOGUHTXLUHQRIXUWKHU¿OOLQJ
during the cutting season. If in every day use then a topping up charge of about one egg cup full every two months may
be appropriate.
DO NOT OVERCHARGE. AT NO TIME SHOULD THERE BE MORE THAN 100CC OF OIL
IN THE CHAMBER.
:$51,1*
Access to the chamber is gained by unscrewing the hexagon screw found in the recess of the centre section of roller.
Clean away all dirt and grit before removing this screw. On replacing the screw, make sure it is tight and secure.
Recommended grade gearbox oil EP90.
5$7&+(73$:/6$1''580+8%62)7+(5($552//(5(YHU\0RQWKV
Projecting from the side face towards the centre of each outer drum will be seen two
grease nipples which provide access for lubrication to the rear roller driving pawls and
the drum hub bearing sleeve.
A small charge of light grease should be applied every two months.
)521752//(56
The bearings used on the front rollers are pre packed with grease and rubber shielded,
therefore requiring no additional greasing.
&</,1'(5&$66(77(%($5,1*6(YHU\'D\
7RDSSO\OXEULFDWLRQWRWKHF\OLQGHUFDVVHWWHEHDULQJVLWLV¿UVWQHFHVVDU\WRUHPRYHWKH
cassette unit from the chassis as described on page 9.
Projecting from each bearing cover will be seen a grease nipple through which a small
charge of grease should be applied using the grease gun
0(',80*5($6( *22'48$/,7<
6&$5,),(5'(7+$7&+(5%586+&$66(77(6
No grease or oiling is required.
