Denon AVC-1508

12
AVR-1708/1508/688/588/488 AVC-1508

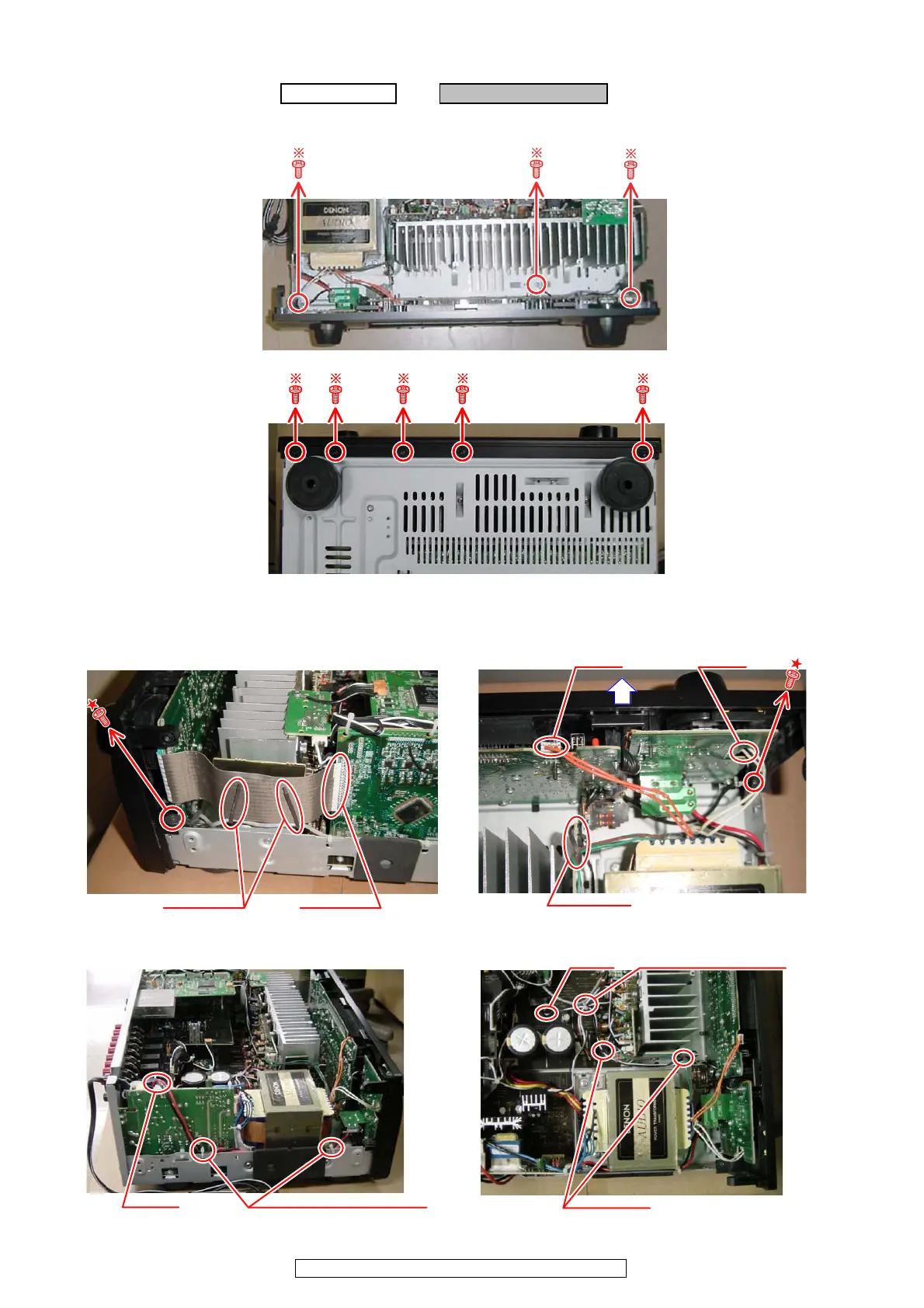

1. PANEL FRONT ASSY
(1) Remove the screws. ( ねじをはずす。）
(2) Disconnect the connector wires and remove the screws . ( コネクターワイヤーとねじをはずす。）
Proceeding (手順) : CABINET TOP → PANEL FRONT ASSY
Picture A
[ Top view ]
Picture G
[ Bottom view ]
FFC cable
Cord holder
Picture D
Picture I
Cord holder
CP302
CP105
Picture C
Wire clamp band : CUTCP503
Picture E
Wire clamp band : CUT
Cord holder
CP541
