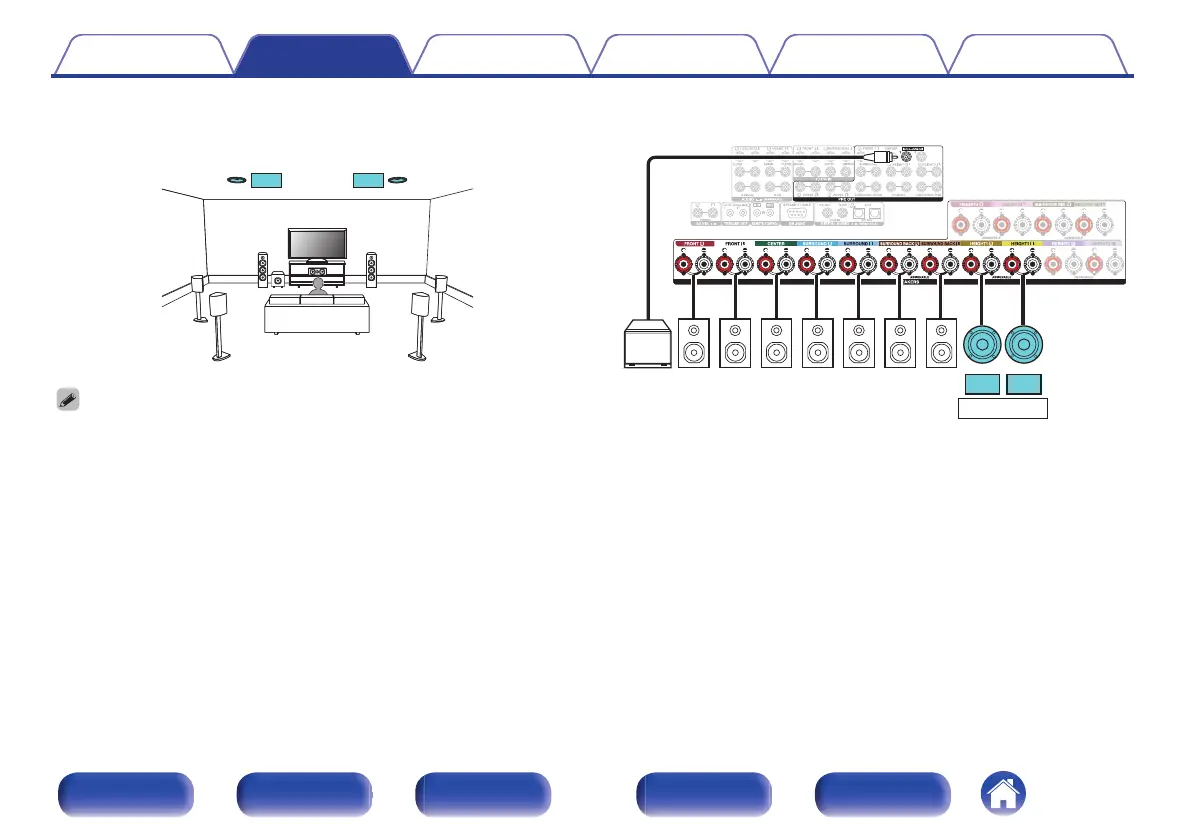

Example connection when using one set of ceiling speakers
.
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” to “2ch” in the menu when
connecting in this configuration. (v p. 229)
.
TMR TML
HEIGHT 1
z
SW
SBR SBL
FR FL C SR SL
z
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 231)
