Bi-amp connection
o

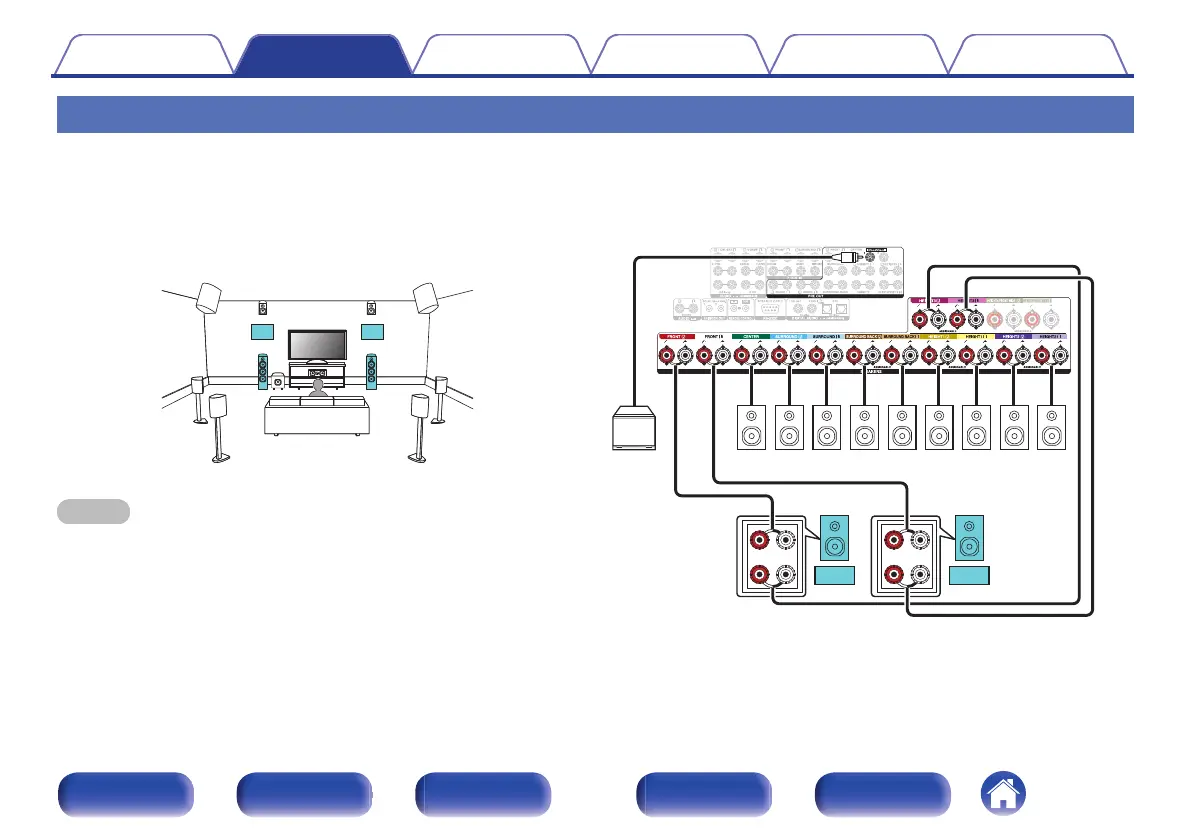

11.1-channel playback (bi-amp connection of front speakers)
This system plays back 11.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate
amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned
without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
.
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL
(Bi-Amp) (Bi-Amp)
FR
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
.
wq
(R)
wq
(L)
SW
CSRSL
SBR SBL
FHR FHL
zz
RHR RHL
zz
FR FL
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker
to be connected from “Height” in the menu. (v p. 229)
