AVR-5803/AVC-A1SR
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or parts replacement etc.,be sure to rearrange them neatly as they
were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise generation.

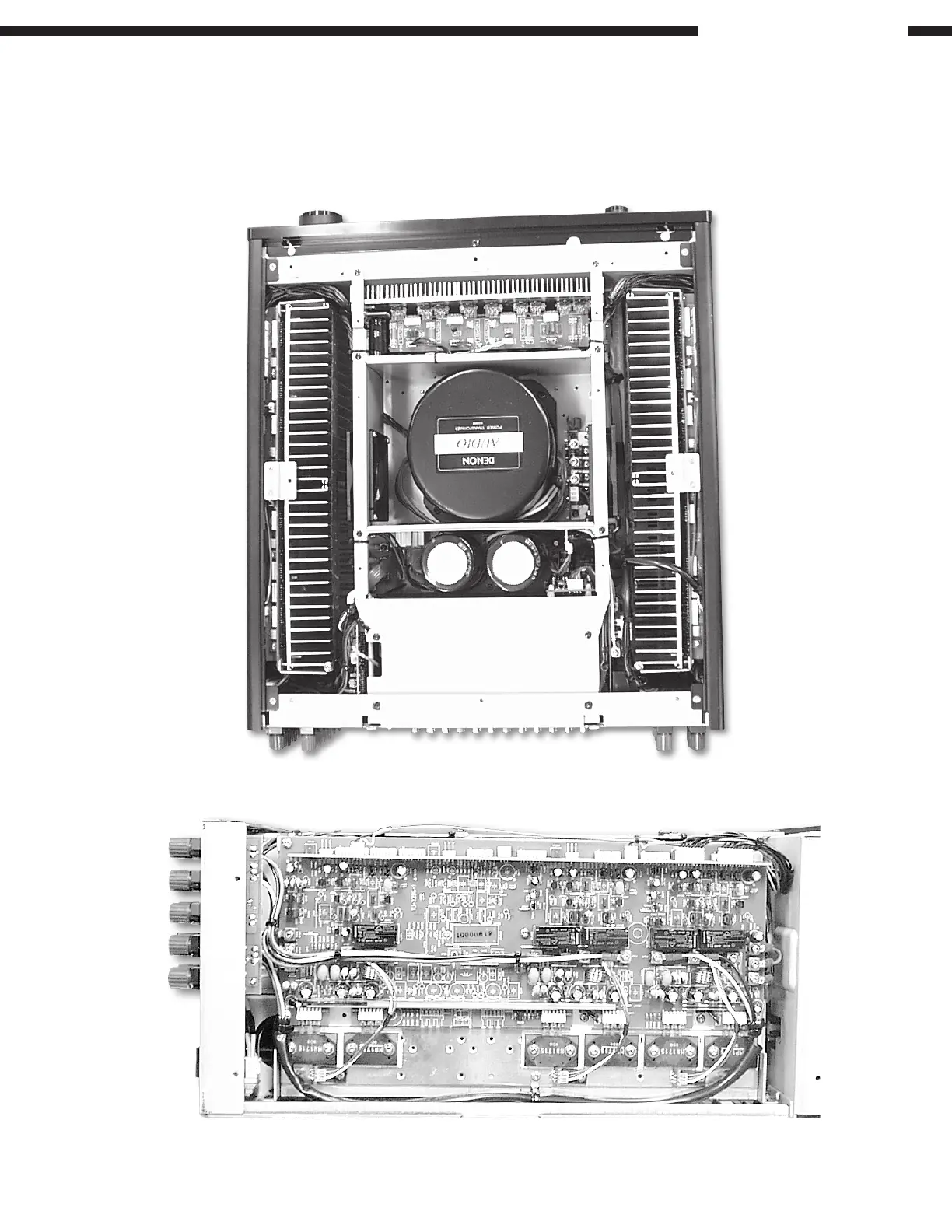

Wire arrangement viewed from the top
Back Panel side
Front Panel side
Back Panel side
Front Panel side
Wire arrangement viewed from the side (left)
