Denon AVR-2307CI Service Manual

14
AVR-2307CI / AVR-2307 / AVR-887 / AVC-1930
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc.
注）：ICNo.の前の記号は、基板の名称を表します。
MAIN : MAIN UNIT CPU : CPU UNIT
CNT : CNT UNIT OPT. : OPTICAL UNIT
2CH-AMP : 2CH-AMP UNIT INPUT : INPUT UNIT
S-C VIDEO : S-C VIDEO UNIT COMP. : COMPONENT UNIT
HDMI : HDMI UNIT

1. IC’s

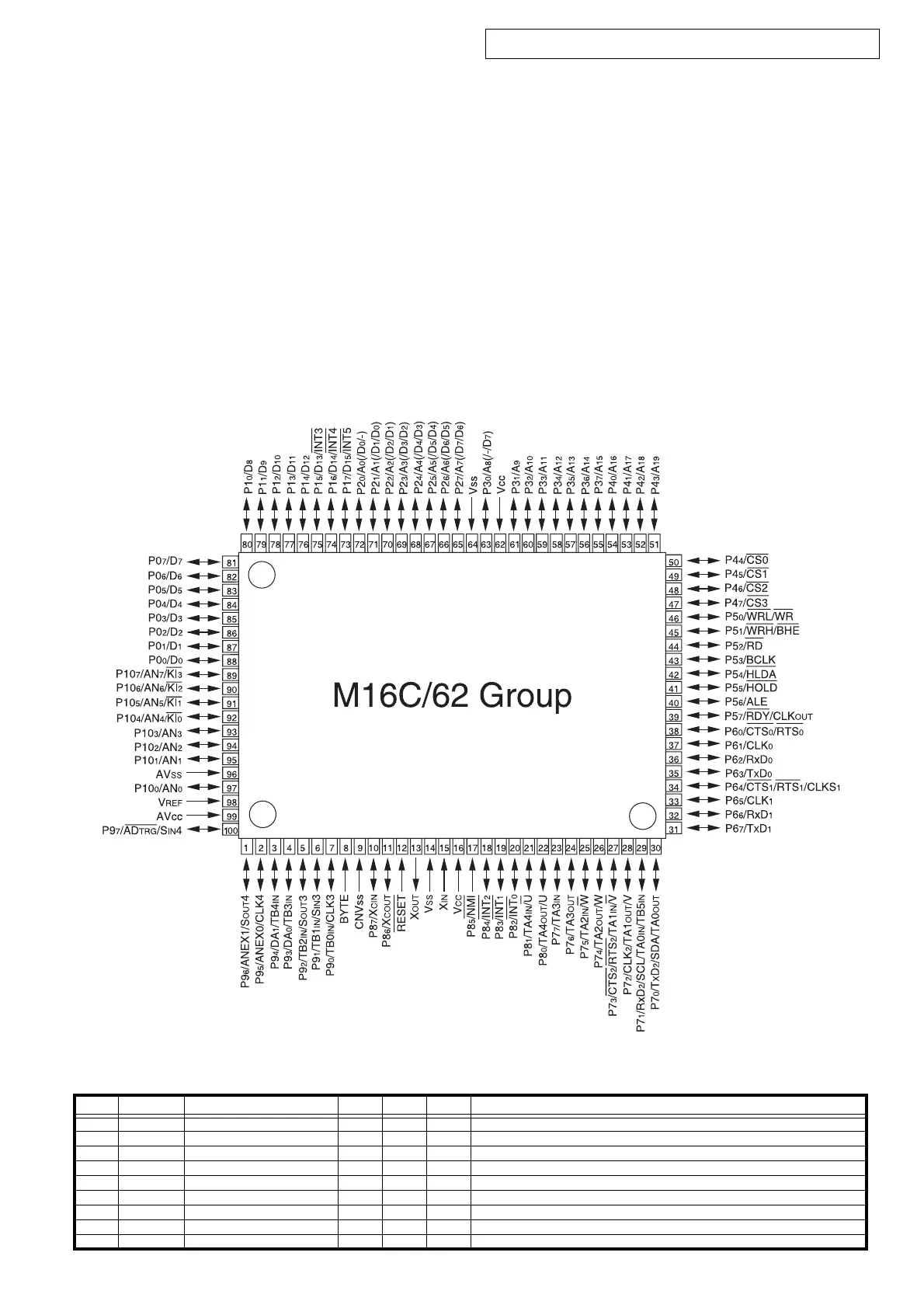

M30626 (CPU : IC202)
M30626 Terminal Function
PINNo. PIN PINNAME I/O STBY STOP Function
1 P96/SOUT4 FLDCP O O/L O/L FLDDRIVERcontrolpin（16-ST-87GINK）CP50
2 P95/CLK4 FLDDA O O/L O/L FLDDRIVERcontrolpin（16-ST-87GINK）DA49
3 P94/TB4 FLDCS O O/L O/L FLDDRIVERcontrolpin（16-ST-87GINK）/CS51
4 P93/TB3 ACKSUB O O/L O/L MAIN-SUBμcomcomm.controlpin
5 P92/SOUT3 MOSI O O/L O/L MAIN-SUBμcomcomm.controlpin
6 P91/SIN3 SOMI I O/L O/L MAIN-SUBμcomcomm.controlpin
7 P90/CLK3 CLKMO O O/L O/L MAIN-SUBμcomcomm.controlpin
8 BYTE (BYTE) GND - - -
9 CNVCS CNVSS - - - UPGRADEPIN
