AVR-2307CI / AVR-2307 / AVR-887 / AVC-1930

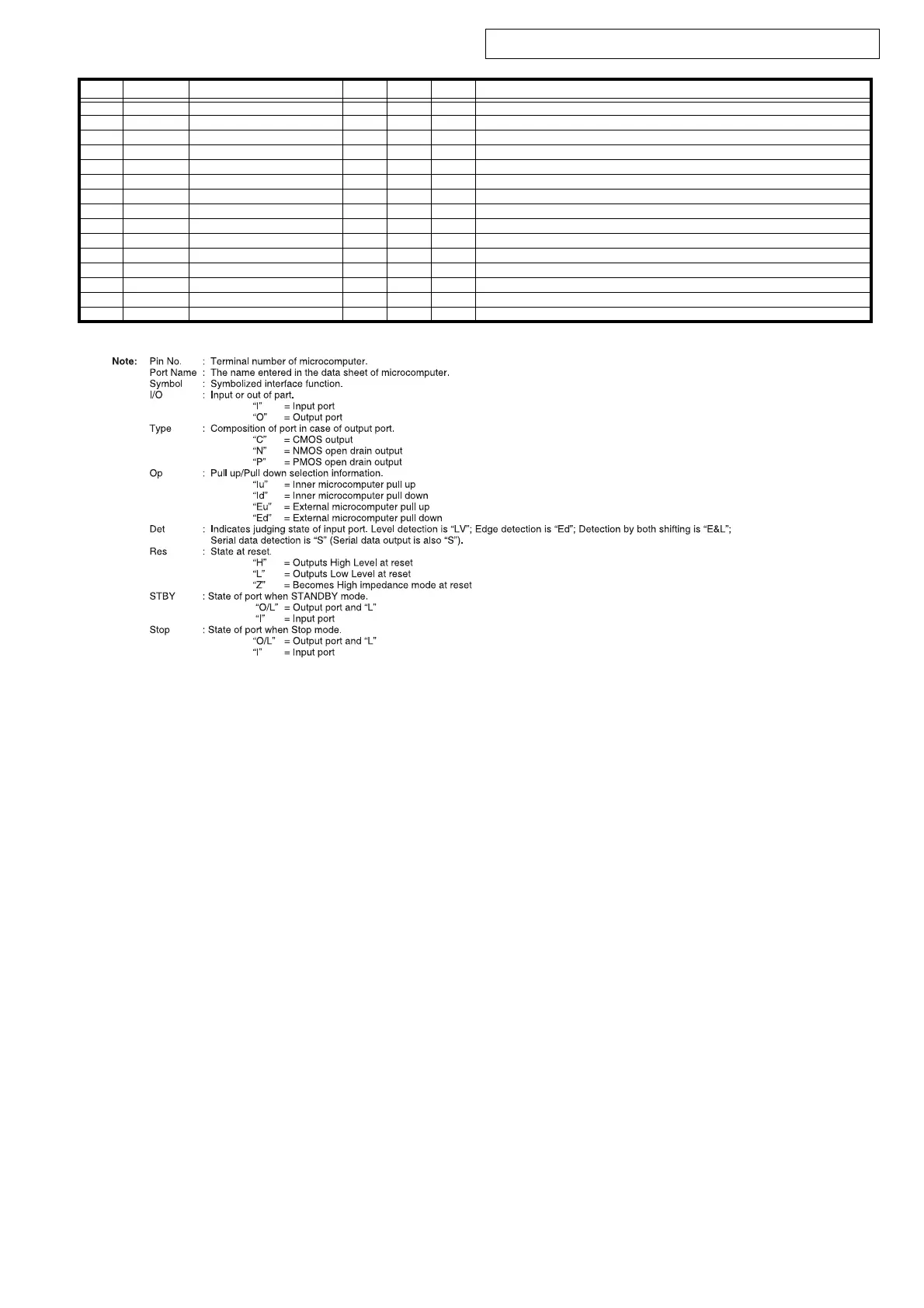

86 P02/D2 4094CLK O O/L O/L BU4094（IC551,552,553)CLKcontrolpin
87 P01/D1 RDSRST O O/L O/L RDSRESETcontrolpin
88 P00/D0 4094EN O O/L O/L BU4094（IC551,552,553)OUTPUTENABLEcontrolpin
89 P107/AN7 SCPUPOWER O O/L O/L SCPUPOWERCONTROL
90 P106/AN6 STBYLED（GREEN) O O/L O/L STBYLEDGREENcontrolpin
91 P105/AN5 KEYIN1 I O/L O/L KEY1SIGNALINPUT
92 P104/AN4 KEYIN2 I O/L O/L KEY2SIGNALINPUT
93 P103/AN3 KEYIN3 I O/L O/L KEY3SIGNALINPUT
94 P102/AN2 SETOPTION I O/L O/L SETOPTIONSELECT
95 P101/AN1 NC I - - Notused
96 AVSS AVss GND - - GND
97 P100/AN0 HPDET I O/L O/L HEADPHONEDETECT
98 VREF VREF 5V - - VREF
99 AVCC AVcc 5V - - POWER5V
100 P97/SIN4 iPodDOCKDET I O/L O/L DOCK'sMINIJACKconnectiondetectinput(Connected:H)
PINNo. PIN PINNAME I/O STBY STOP Function
