AVR-1909/789, AVC-1909
5. CHASSIS BACK SUB ASSY

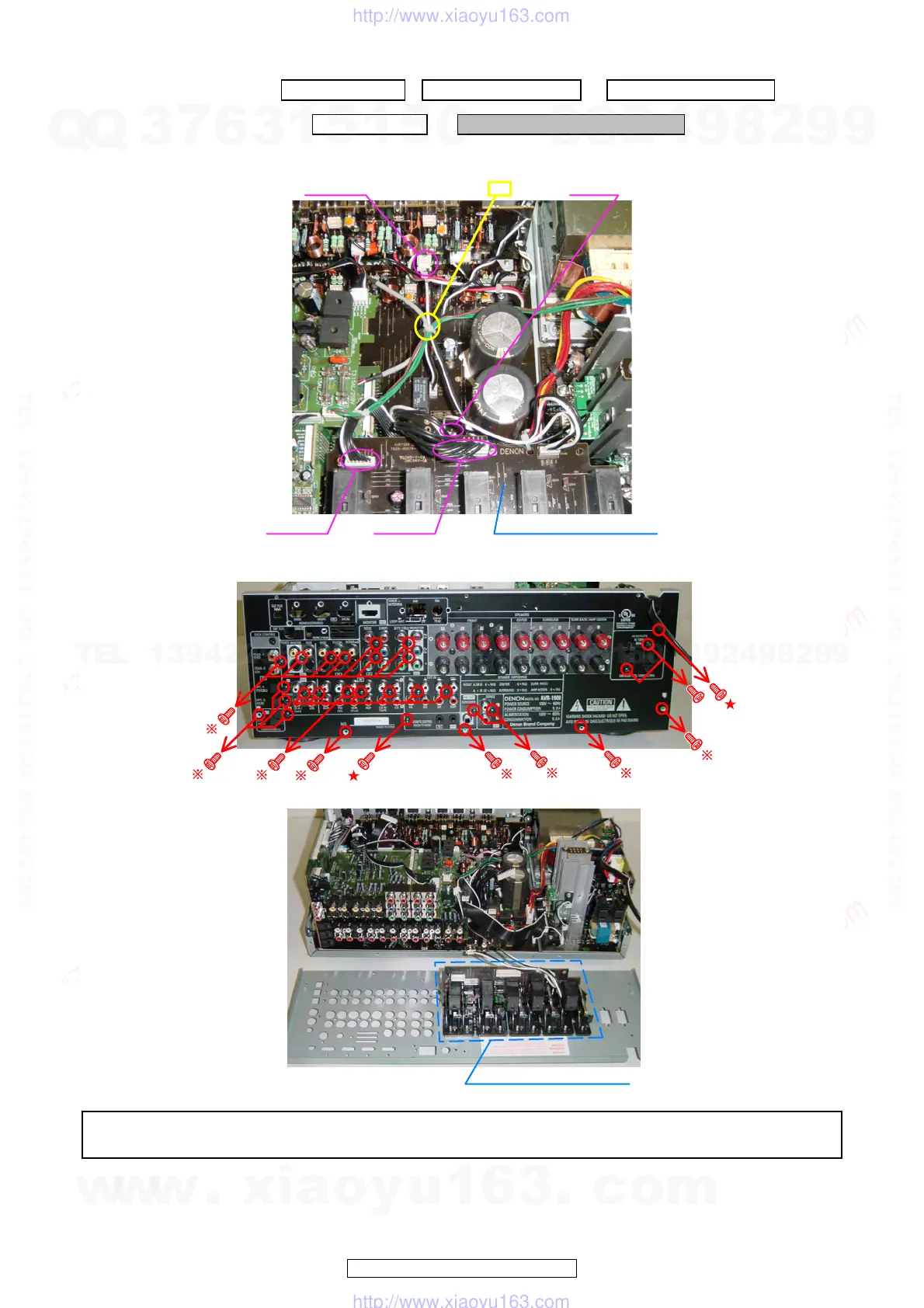

(1) Disconnect the connector wires. （コネクタワイヤーをはずす。）
(2) Remove the screws.（ねじをはずす。）
proceeding (手順): CABINET TOP → HDMI P.W.B ASSY → SIRIUS P.W.B ASSY
→ TUNER PACK → CHASSIS BACK SUB ASSY
Top view
cut
CP103 CP101
CP102B CP103
SPEAKER P.W.B ASSY
ً
Picture B
Picture B
SPEAKER P.W.B. ASSY
Please refer to "EXPLODED VIEW " for the disassembly method of each P.W.B included in CHASSIS BACK SUB ASSY .
CHASSISBACKSUBASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
