AVR-1909/789, AVC-1909
10. TRANS

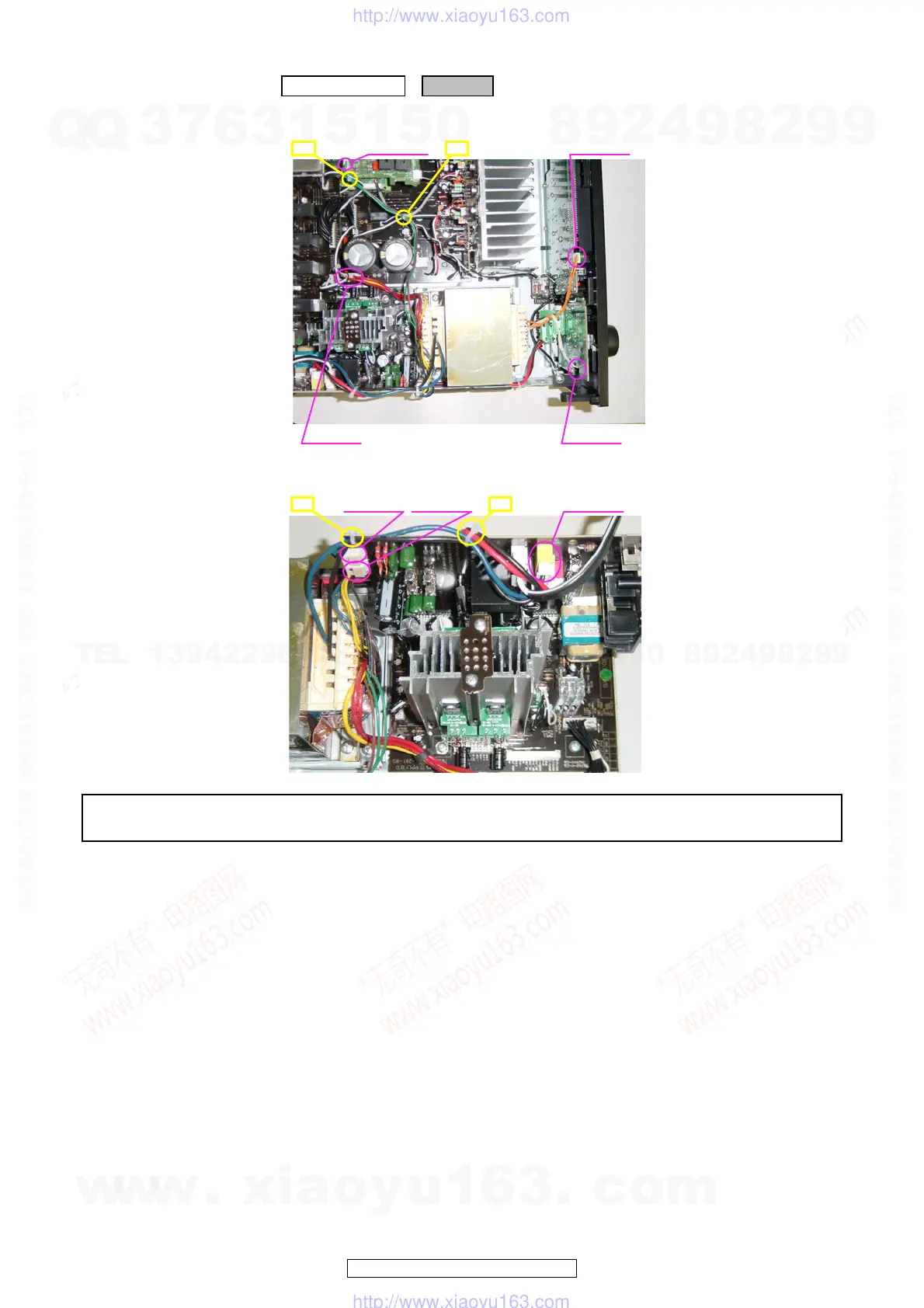

(1) Disconnect the connector wires.（コネクタワイヤーをはずす。）
proceeding (手順): CABINET TOP → TRANS
CP104 CN305
CP302
Top vi e w
CP2008
cut cut
CP513 CP512 CP501
Picture C
cut cut
Please refer to "EXPLODED VIEW " for the disassembly method of POWER TRANS.
POWERTRANS のはずしかたは "EXPLODEDVIEW" を参照してください。
