Denon AVR-883 - Page 61

61

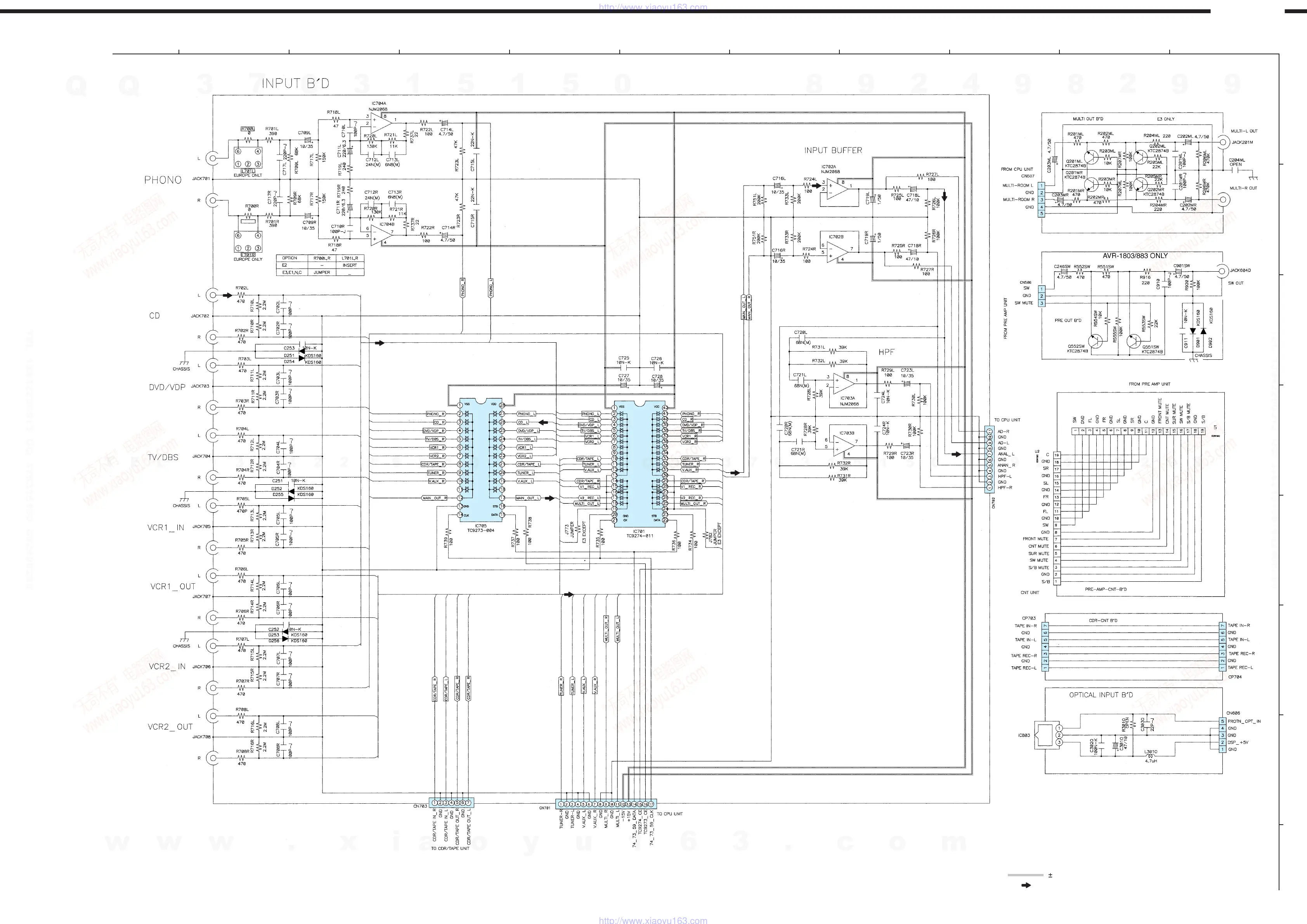

SCHEMATIC DIAGRAMS (1/10)
INPUT UNIT
MULTIOUT UNIT
COMPONENT-VIDEO UNIT
PRE-AMP-CNT UNIT
CDR-CNT UNIT
FRONT-OPTICAL UNIT
SCHEMATIC DIAGRAMS (1/10)
