Denon AVR-S500BT User Manual

.
MASTER VOLUME
SOURCE SELECT
BAND MODE DIMMER STATUS
TUNE
TUNER
PRESET CH
SOUND MODE
SETUP MICPHONES
5V/1A
CBL/SAT
3
1
QUICK SELECT
GAME
ON / OFF
BASS /
TREBLE
TONE CONTROL
2
DVD/Blu-ray
4
Bluetooth
ADJUST
W
0
Q
8
Q
9
Q
6
Q
5
Q
4
Q
7
N

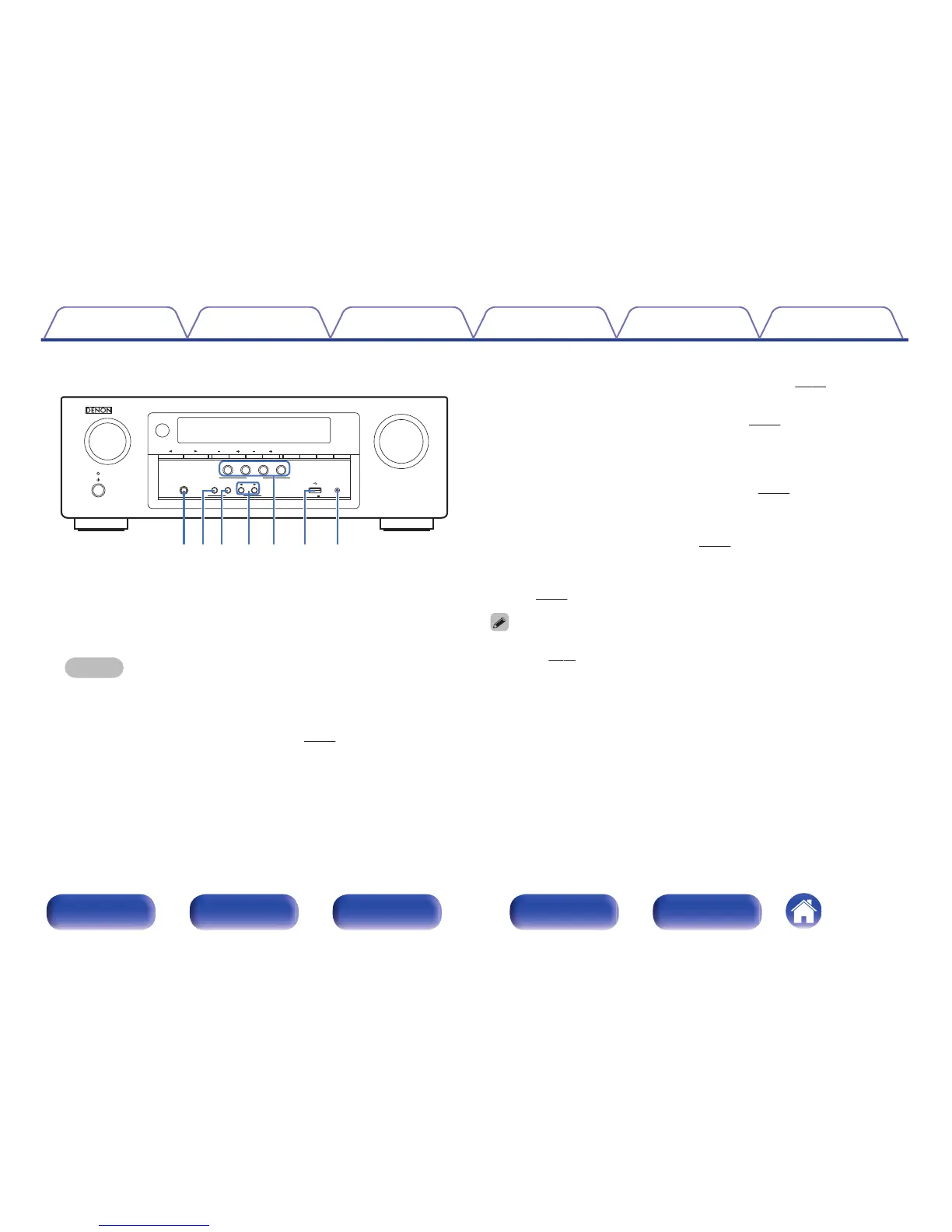

Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
O
TONE CONTROL ON/OFF button
Set the tone control function to on/off. (v p. 52)
P
BASS/TREBLE button
Selects the range for which to adjust the tone. (v
p. 52)
Q
Tone adjustment buttons (ADJUST0 1)
Adjusts the tonal quality of the sound. (v p. 52)
R
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v
p. 61)
S
USB port
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied. (v
p. 32)
T
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 79)
BASS/TREBLE button and ADJUST 0 1 buttons can be operated when the
“Tone” (v p. 52) setting is “On”.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
