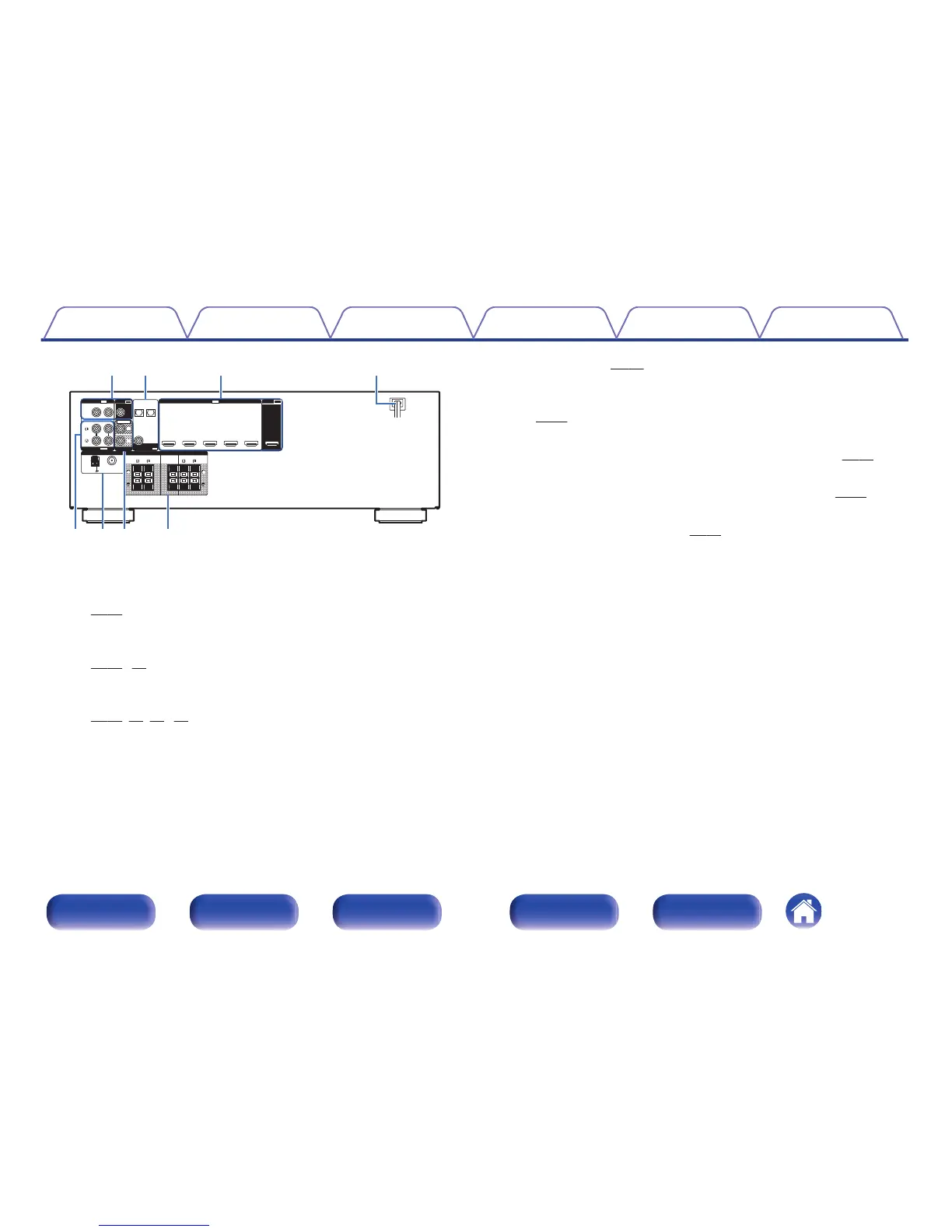

Denon AVR-S500BT User Manual

.
CLASS 2 WIRING
(
ASSIGNABLE
)
CBL/SAT
COAXIAL
TV AUDIO
MEDIA
PLAYER
OPTICAL
12
IMPEDANCE : 6㹼16Ȑ
SPEAKERS
CENTERFRONT SURROUND
ANTENNA
1
CBL/SAT 4 Blu-ray 5 GAME
MEDIA
PLAYER
3
DVD/
Blu-ray
2
(4K)(4K)
MONITOR
HDMI
OUT
AUDIO
IN
AUDIO
IN
PRE OUT
CBL/SAT
MEDIA
PLAYER
DIGITAL AUDIO
IN
1
2
VIDEO
IN
VIDEO
OUT
MONITOR
SUBWOOFER
HDMI
IN
75Ȑ
FMAM
rewq
i
y ut
A
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v p. 30)
B
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 27, 30)
C
HDMI connectors
Used to connect devices equipped with HDMI connectors.
(v p. 26, 29, 30, 31)
D
Power cord (v p. 35)
E
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 30)
F
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v
p. 33)
G
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v
p. 23)
H
Speaker terminals (SPEAKERS)
Used to connect speakers. (v
p. 22)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
