Denon AVR-S540BT Service Manual

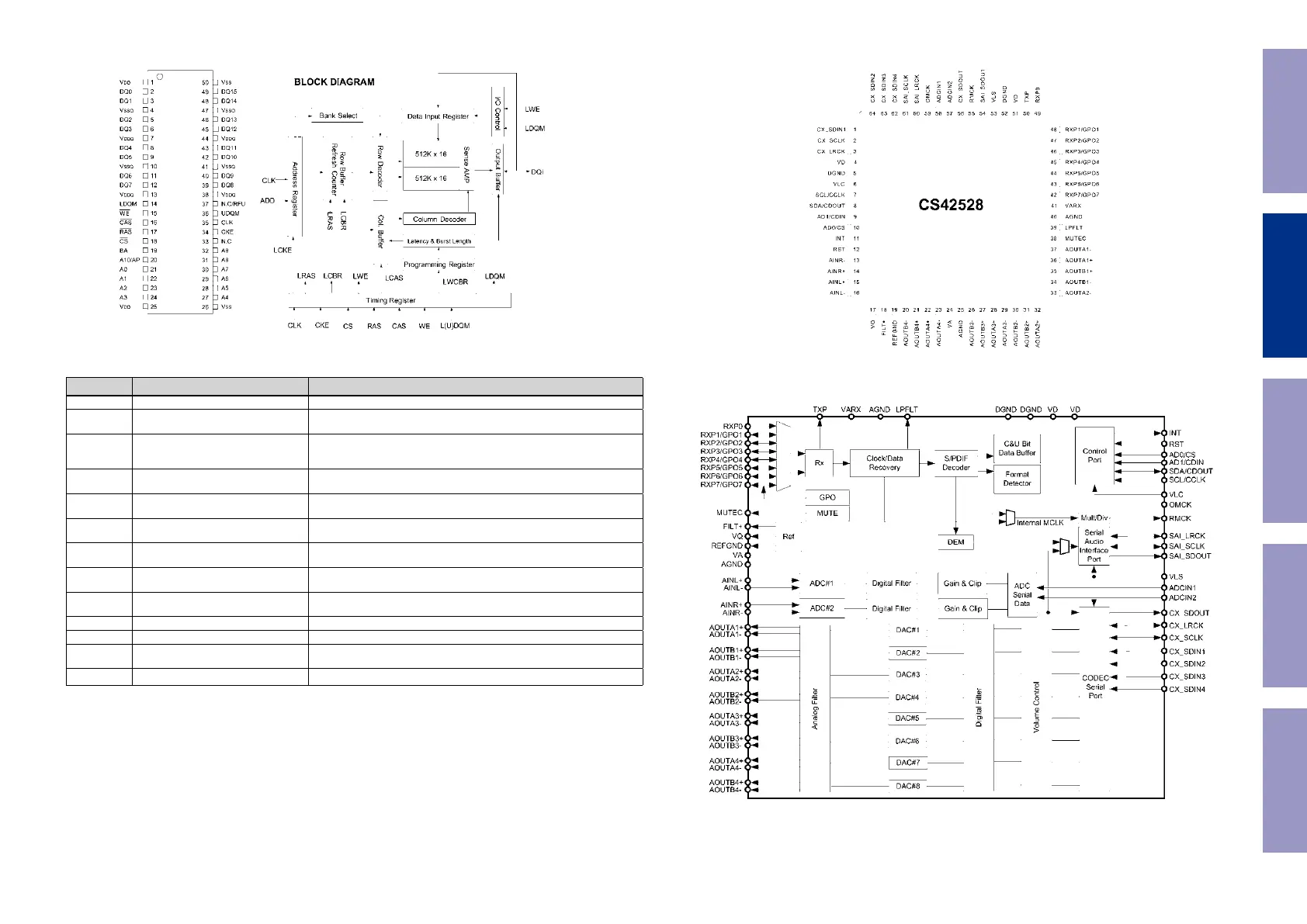

M12L16161A5TG2Q (DIGITAL : IC743)
Terminal Functions
Pin Name Input Function
CLK System Clock Active on the positive going edge to sample all inputs.
CS Chip Select
Disables or enables device operation by masking or enabling all inputs except
CLK, CKE and L(U)DQM.
CKE Clock Enable
Masks system clock to freeze operation from the next clock cycle.
CKE should be enabled at least one cycle prior to new command.
Disable input buffers for power down in standby.
A0 ~ A10/AP Address
Row / column addresses are multiplexed on the same pins.
Row address : RA0 ~ RA10, column address : CA0 ~ CA7
BA Bank Select Address
Selects bank to be activated during row address latch time. Selects bank for
read/write during column address latch time.
RAS Row Address Strobe
Latches row addresses on the positive going edge of the CLK with RAS low.
Enables row access & precharge.
CAS Column Address Strobe
Latches column addresses on the positive going edge of the CLK with CAS low.
Enables column access.
WE Write Enable
Enables write operation and row precharge. Latches data in starting from CAS ,
WE active.
L(U)DQM Data Input / Output Mask
Makes data output Hi-Z, tSHZ after the clock and masks the output.
Blocks data input when L(U)DQM active.
DQ0~15 Data Input / Output Data inputs/outputs are multiplexed on the same pins.
VDD/VSS Power Supply/Ground Power and ground for the input buffers and the core logic.
VDDQ/VSSQ Data Output Power/Ground
Isolated power supply and ground for the output buffers to provide improved
noise immunity.
N.C/RFU No Connection/ Reserved for Future Use This pin is recommended to be left No Connection on the device.
CS42528-CQ (DIGITAL : IC744)
Block diagram
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
41

Denon AVR-S540BT Specifications

General

Channels	5.2
Power Output per Channel	70 W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
HDMI Inputs	5
HDMI Outputs	1
HDMI Version	2.0a
HDCP Support	2.2
4K/60 Hz Pass-through	Yes
Dolby Format	Dolby TrueHD, Dolby Digital Plus
DTS Format	DTS-HD Master Audio
Auto Speaker Setup	Yes (Audyssey MultEQ)
Bluetooth	Yes
FM Tuner	Yes
AM Tuner	Yes
Input Sensitivity/Impedance	200 mV / 47 kOhm
Dimensions (W x H x D)	434 x 151 x 319 mm
Ethernet Port	No
Wi-Fi	No
HDR Support	HDR10, HLG
Frequency Response	10 Hz - 100 kHz - +1/-3 dB
Total Harmonic Distortion	0.08% (20 Hz - 20 kHz)
Signal-to-Noise Ratio	98 dB (IHF-A weighted)
USB Port	Yes (Front)
