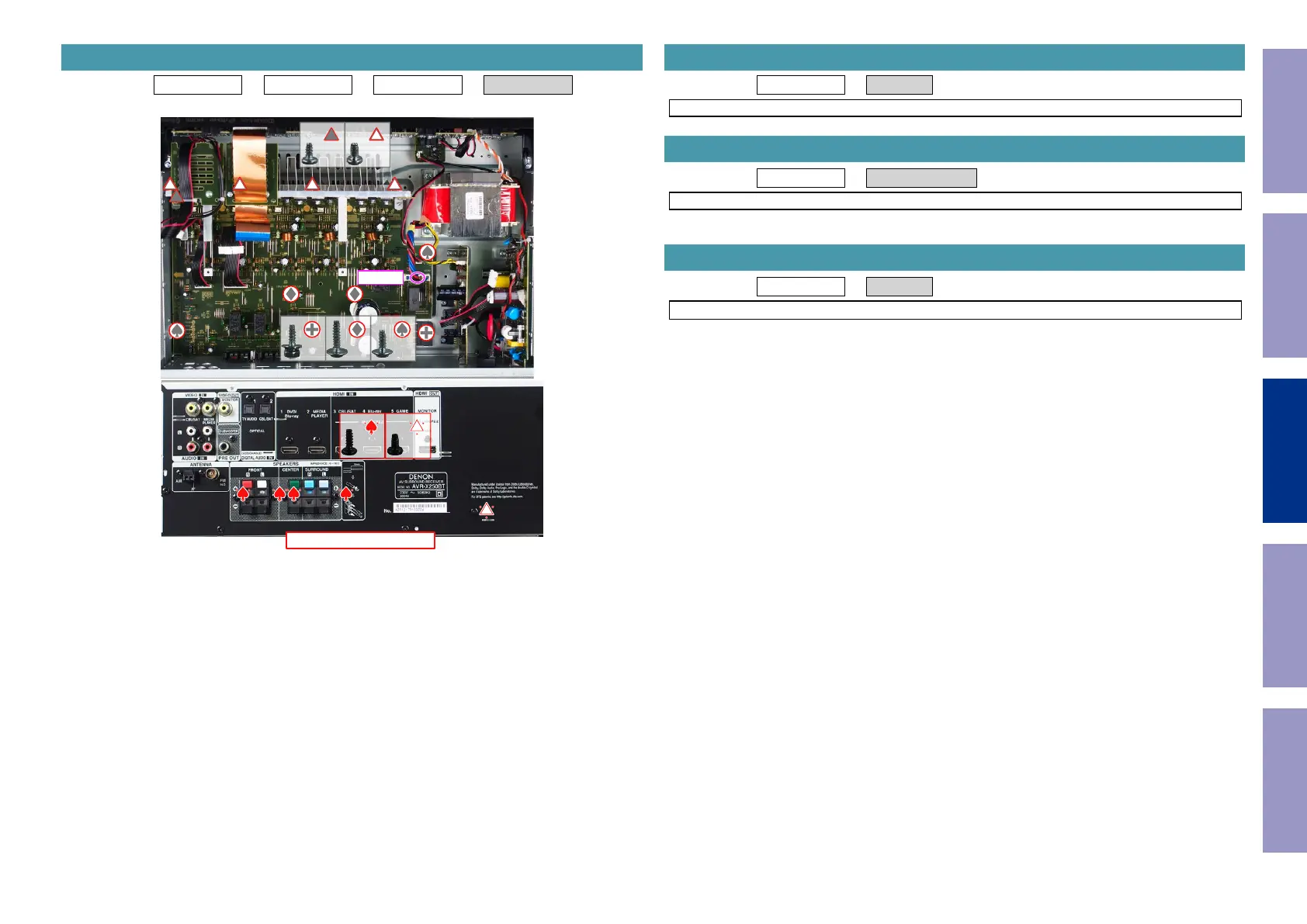

Proceeding : TOP COVER VIDEO PCB DIGITAL PCB MAIN PCB
(1) Remove the screws.
4. MAIN PCB
↑Shooting direction: A↑
x4
x1
x2 x2x1
x1 x4
CN503
Proceeding : TOP COVER SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER REGULATOR PCB
See "EXPLODED VIEW" for instructions on removing the REG PCB.
Proceeding : TOP COVER TRANS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
5. SMPS PCB
6. REGULATOR PCB
7. TRANS
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
54
