Denon AVR-S540BT Service Manual

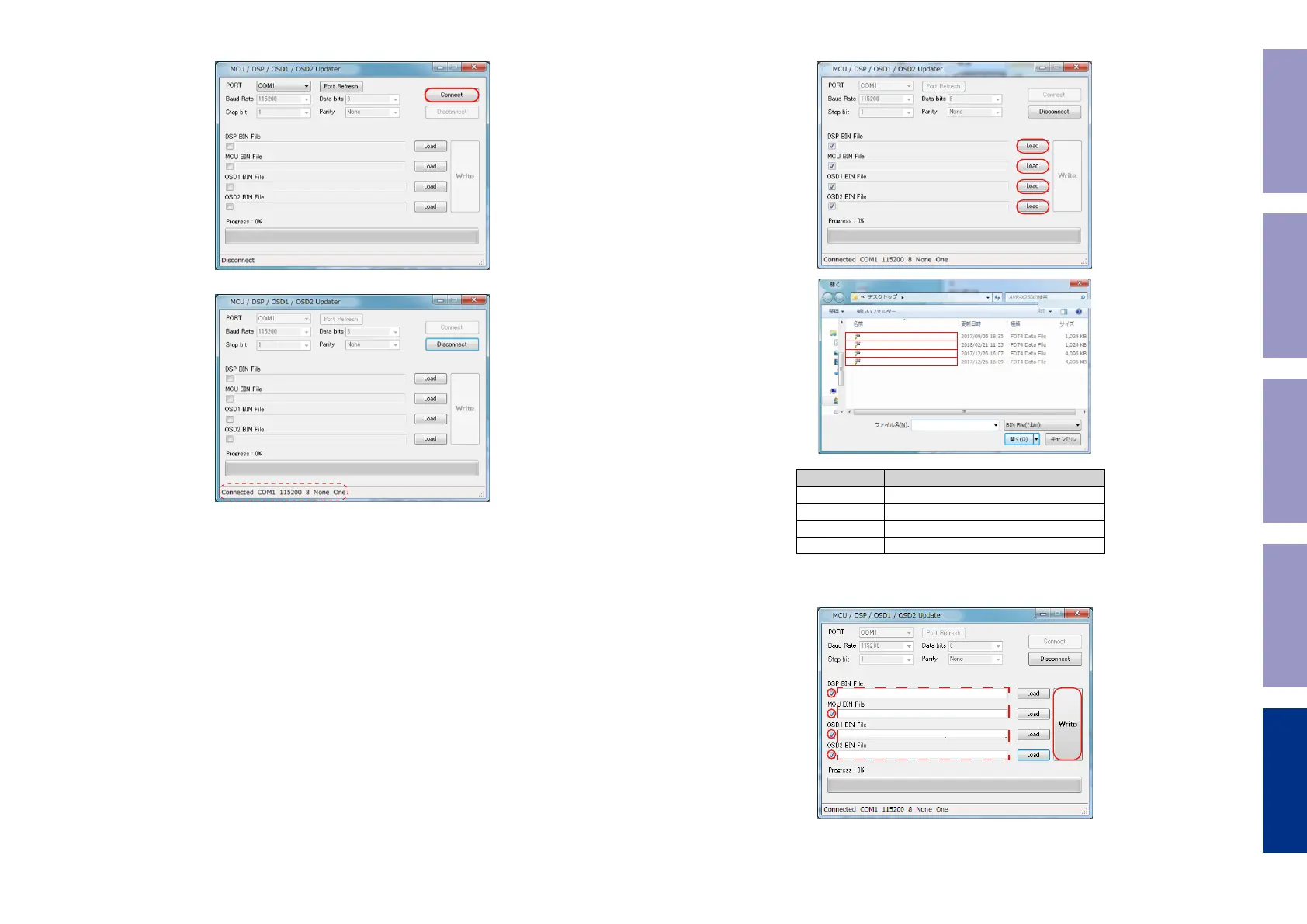

(4) Click "Connect".
(5) Check the PORT connection destination.
(6) Click "Load" to load each rmware le.
Load File name
Load : A ModelName_DSP_vXXX.bin
Load : B ModelName_MCU_vXX_XX.bin
Load : C ModelName_OSD1_vXX_XX.bin
Load : D ModelName_OSD2_vXXXXXXXX.bin
(7) A "
✓
" is displayed next to each rmware le.
Click "Write".
A
B
C
D
ModelName_DSP_vXXX.bin
ModelName
ModelName_MCU_vXX_XX.bin
ModelName_OSD1_vXX_XX.bin
ModelName_OSD2_vXXXXXXXX.bin
A
B
C
D
C:\Users\Desktop\ModelName\ModelName_DSP_vXXX.bin
C:\Users\Desktop\ModelName\ModelName_MCU_vXX_XX.bin
C:\Users\Desktop\ModelName\ModelName_OSD1_vXX_XX.bin
C:\Users\Desktop\ModelName\ModelName_OSD2_vXXXXXXXX.bin
