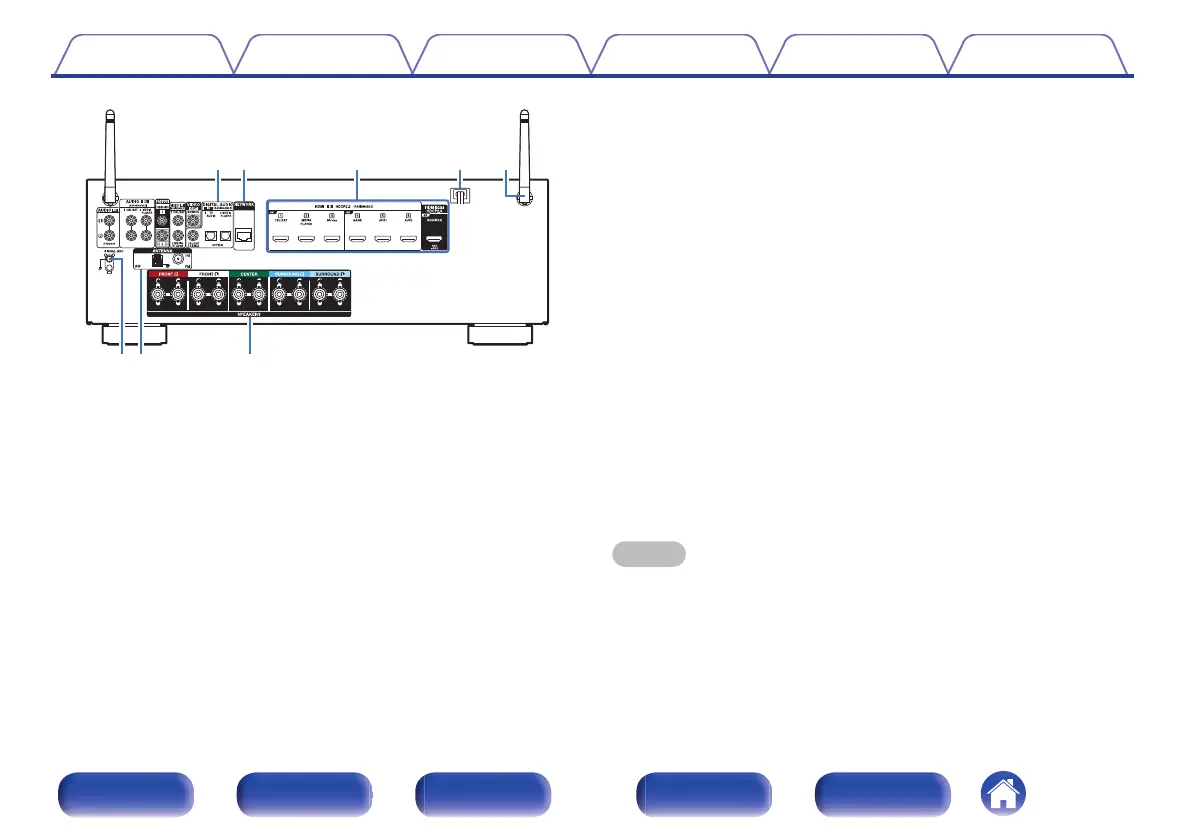

Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 35)
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 36)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a media player” (v p. 39)
F
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 46)
G
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC (Enhanced
Audio Return Channel)” (v p. 34)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 35)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 38)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 40)
0
“Connecting a media player” (v p. 39)
0
“Connecting a game console or player device compatible with the
8K” (v p. 41)
H
Power cord (v p. 48)
I
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 42)
J
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 44)
K
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 29)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
