Denon AVR-S750H Service Manual

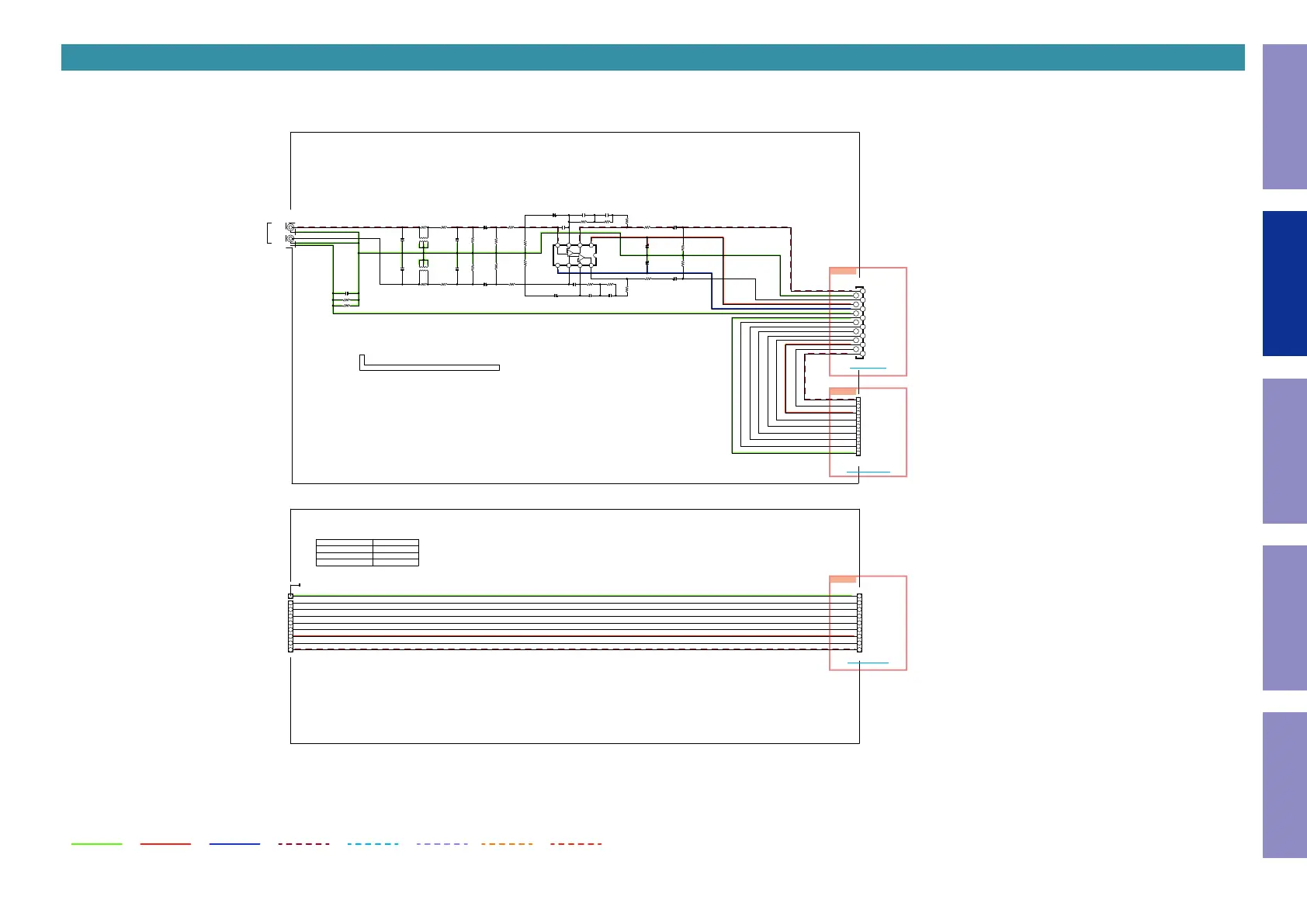

SCH16 PHONO, TUNER
ANALOG VIDEO STBY POWER ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL GND LINE POWER- LINE POWER+ LINE
PHONO
IN
L CH
R CH
TUNER MODULE
CHASSIS
1.TUNER-L
2.TUNER-R
3.VCC
4.SCLK
5.SDIO
6./CE
7./RST
8.INT
9.CH_GND
TO DIGITAL B'D
9PIN B'D TO B'D
10.CH_GND
11.-7.5V
12.+7.5V
13.PHONO_R
14.AGND
15.PHONO_L
CNVYST990-A2J1
CNVYST990-A9U2
CNVYST990-D8E3
AVR-S750H/X1600H/S650H E3
AVR-S750H/X1600H/S650H E2
AVR-X1600H/S650H E1C
*TUNER MODULE OPTION
AVR-X1600H K
CNVYST990-A9U2
1.L-OUT
2.R-OUT
3.VCC
4.SCLK
5.SDIO
6./CE
7./RST
8.INT
9.CH_GND
FROM TUNER B'D
9PIN B'D TO B'D
TO PHONO B'D
9PIN B'D TO B'D
PHONO B'D
TUNER B'D
1.L-OUT
2.R-OUT
3.VCC
4.SCLK
5.SDIO
6./CE
7./RST
8.INT
9.CH_GND
1.L-OUT
2.R-OUT
3.VCC
4.SCLK
5.SDIO
6./CE
7./RST
8.INT
CH_GND
BK801:OPEN
FOR CORSSTALK NOISE(PREPAIR)
R8302
0
L8301
OPEN
R8301
0
R8304
390
R8303
390
R8306
68k
C8304
220P
R8305
68k
C8303 220P
C8319
OPEN
R8323 0
R8324 0
R8308
150k
C8306
50V/10uF
C8312
0.022uF(M)
R8312
240
R8318
22
R8314
130k
R8316
11k
C8308
10V/220uF
C8314
6800pF(M)
V+
B OUTPUT
B-INPUT
B+INPUT
V-
A+INPUT
A-INPUT
A OUTPUT
-
+
B
-
+
A
8765
4 3 2 1
IC831
NJM2068MDTE1
R8310
47
C8310
100P
R8320
47
C8316
50V/10uF
R8322
470k
C8318
50V/10uF
C8317
50V/10uF
R8307
150k
C8305
50V/10uF
R8309
47
C8309
100P
C8307
10V/220uF
R8311
240
R8313
130k
C8311
0.022uF(M)
R8315
11k
C8313
6800pF(M)
R8317
22
R8319
47
C8315
50V/10uF
R8321
470k
L8302
OPEN
C8301
OPEN
C8302
OPEN
87654321
TU800
YST990-A9U2
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CN825
C125Z1-15
1
2
3
4
5
JK831
CJJ4N122ZD
9 8 7 6 5 4 3 2 1
BN826
987654321
BN826-1
CN825
TO CN821
BN826_
TO BN826-1
BN826-1
TO BN826_
