Denon AVR-X4300H Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X4300H.

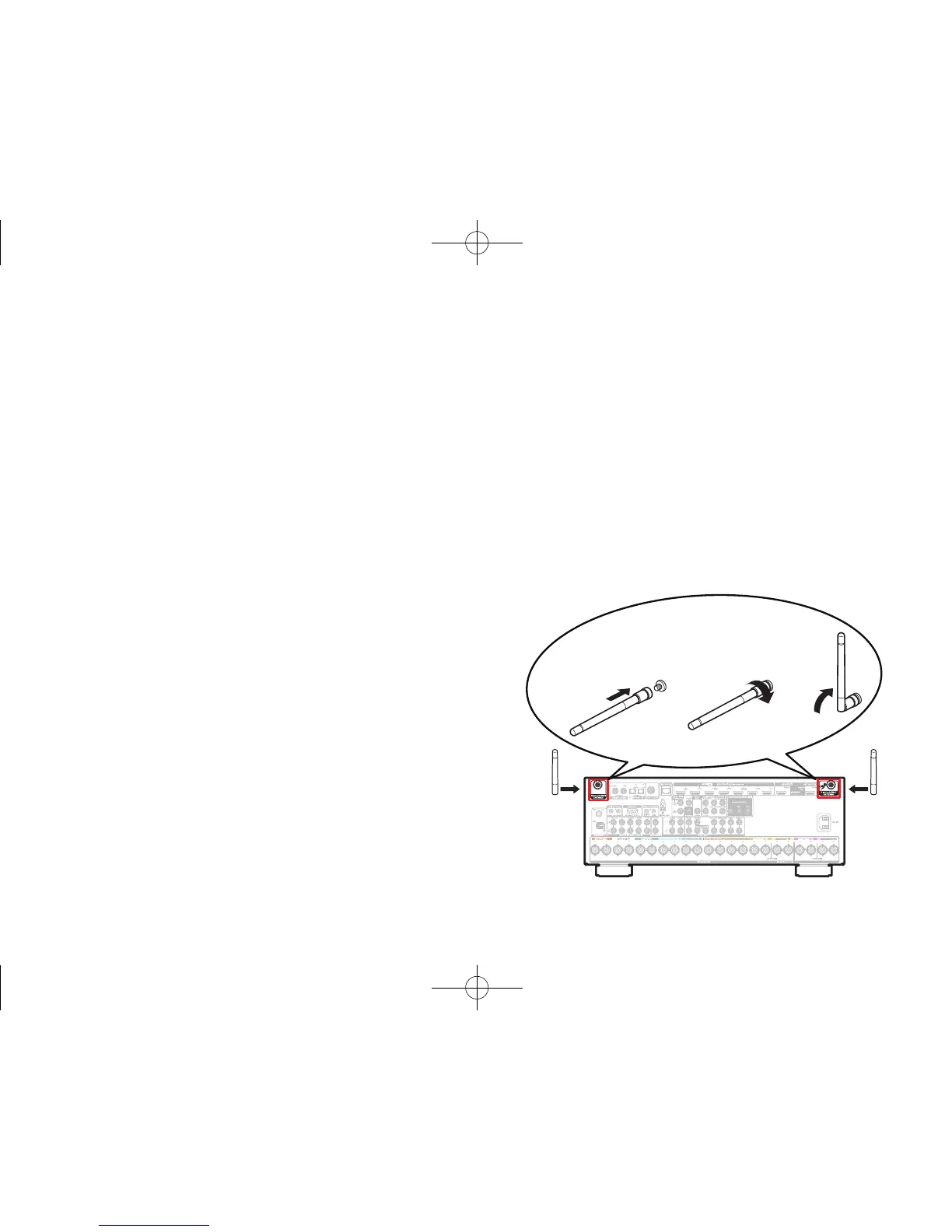

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
1. AVR-X4300HE3_QSG_ENG_160704.indd 3 2016/07/07 14:39:08
PrintingColor:Black

Denon AVR-X4300H Specifications

General

Display	-
Product color	Black
Audio decoders	DTS Neo:X, DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	11.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
HDMI in	8
Remote (IR) input	1
Composite video in	4
Digital audio coaxial in	2
Headphone connectivity	3.5 mm
Number of HDMI outputs	3
Multichannel audio output type	RCA
Supported video modes	1080p, 2160p
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Power consumption (standby)	0.1 W
Power consumption (typical)	710 W
Card reader integrated	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	236 mm
Weight	13500 g
