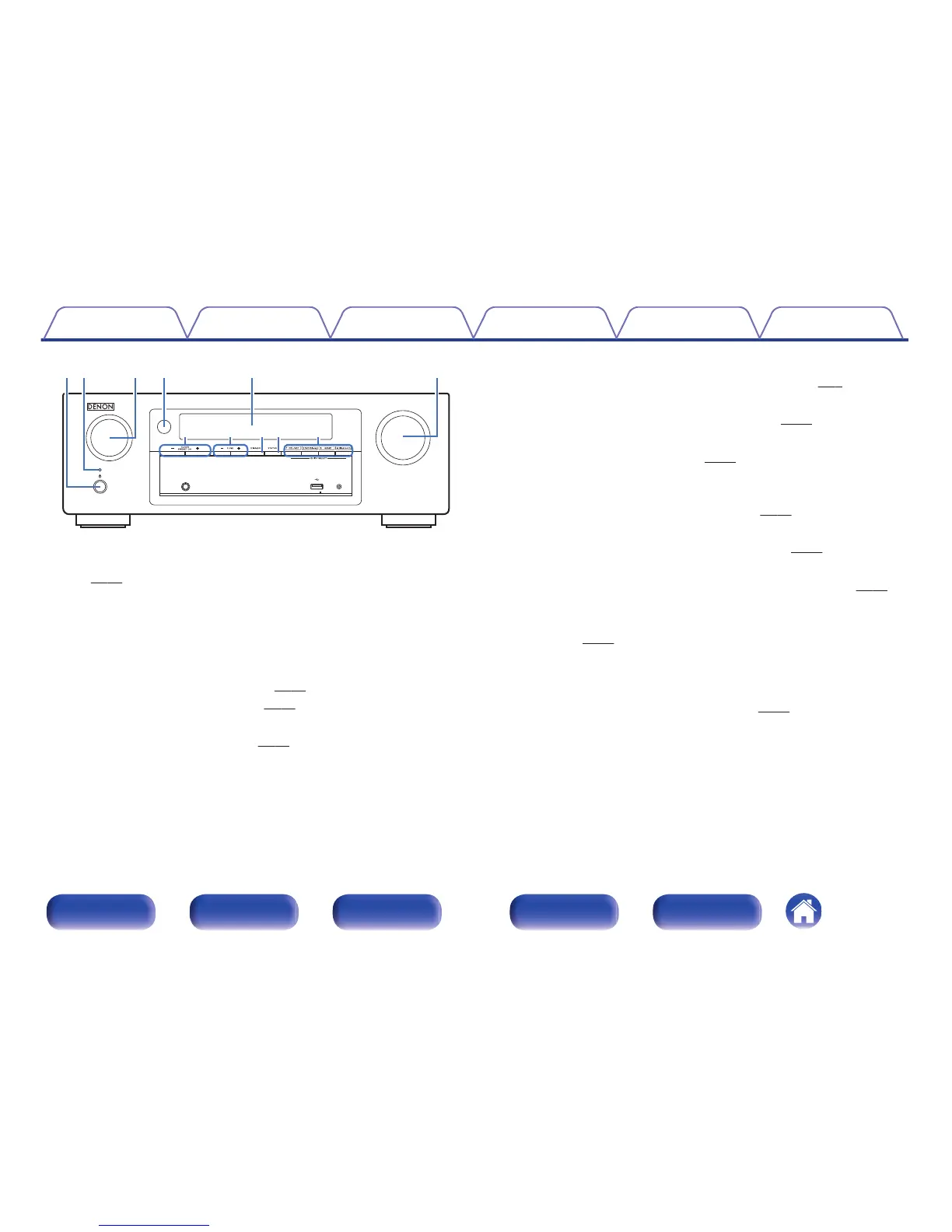

A
Power operation button (X)
Used to turn the power on/off (standby).
(v
p. 37)
B
Power indicator
This is lit as follows according to the power status:
0
Green : Power on
0
Off: Normal standby
0
Red:
0
When “HDMI PassThrough” (v
p. 76) is set to “On”
0
When “BluetoothStandby” (v
p. 90) is set to “On”
C
SOURCE SELECT knob
This selects the input source. (v p. 37)
D
Remote control sensor
This receives signals from the remote control unit. (v
p. 6)
E
Display
This displays various pieces of information. (v p. 13)
F
MASTER VOLUME knob
This adjusts the volume level. (v
p. 38)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v
p. 51)
H
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 46)
I
DIMMER button
Each press of this switches the brightness of the display. (v p. 91)
J
STATUS button
Each press of this switches the status information that is shown on the
display. (v
p. 43)
K
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 64)
