Denon AVR-X6300H Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X4300H.

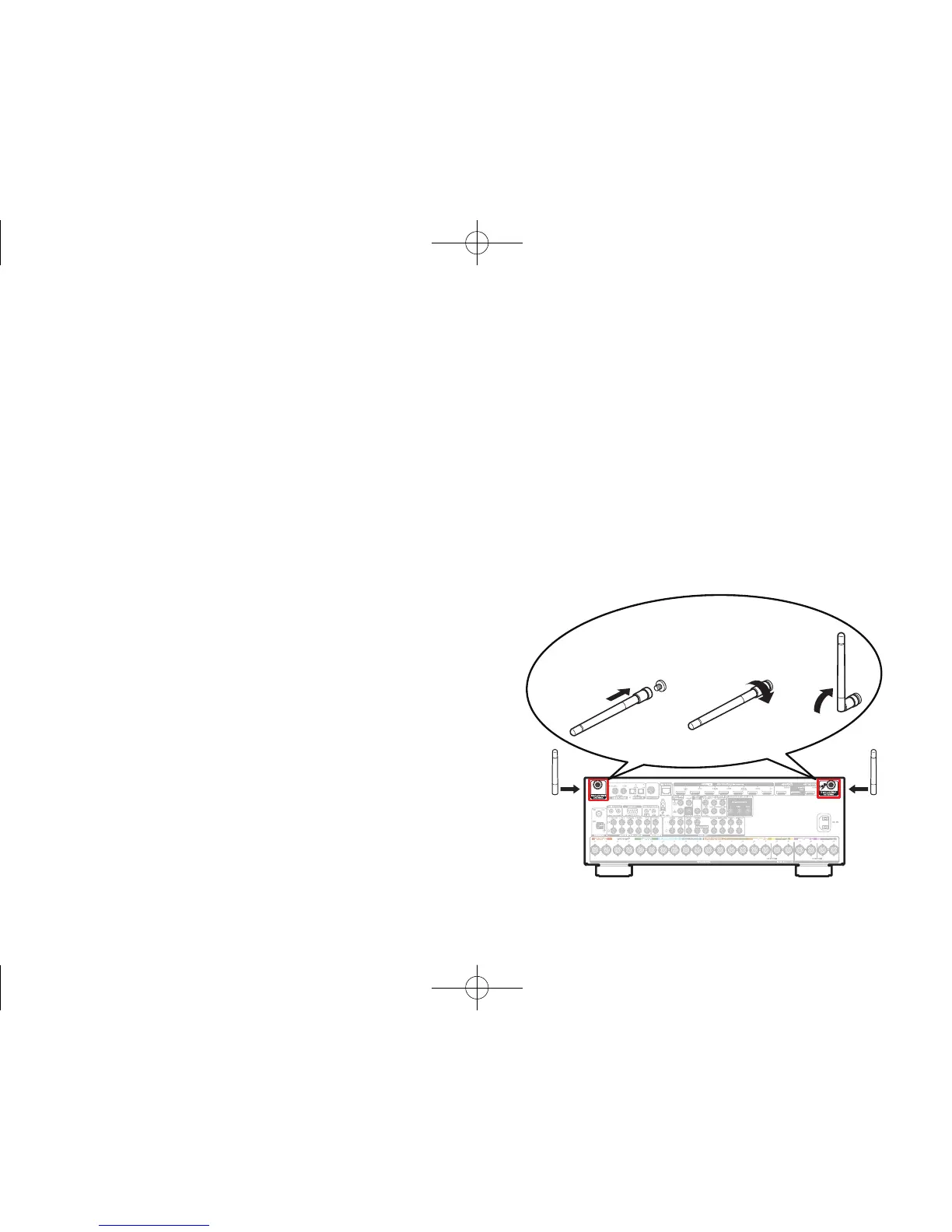

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
1. AVR-X4300HE3_QSG_ENG_160704.indd 3 2016/07/07 14:39:08
PrintingColor:Black

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
