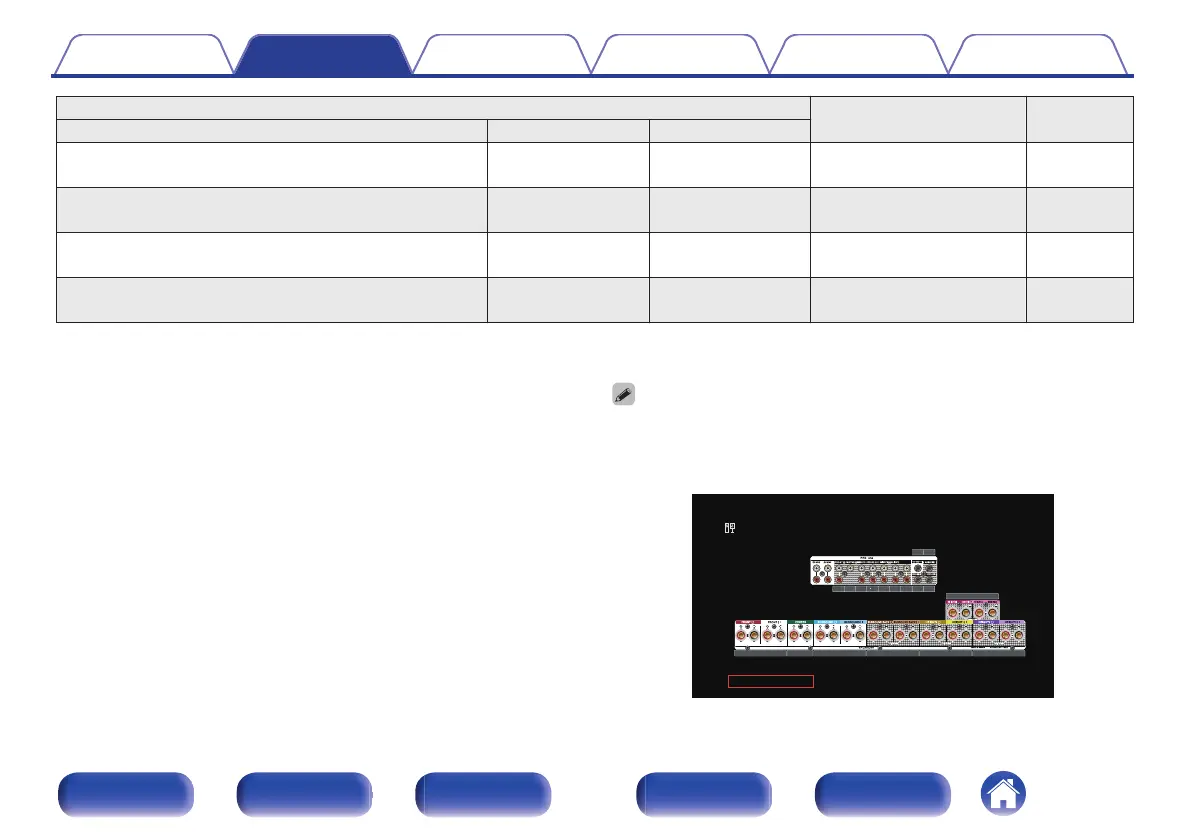

Denon AVR-X6800H User Manual

Playback speaker in each zone
“Amp Assign” settings
Connection
page
MAIN ZONE ZONE2 ZONE3
7.1-channel playback (bi-amp connection of front
speakers)
2-channel
(Speaker out)
2-channel (Pre-out) 7.1ch (Bi-Amp) + ZONE2 69
7.1-channel playback
2-channel
(Speaker out)
2-channel
(Speaker out)
7.1ch + ZONE2/3 70
9.1-channel playback
1-channel
(Speaker out)
1-channel
(Speaker out)
9.1ch + ZONE2/3-MONO 71
13.1-channel playback (using this unit as a
preamplifier)
Not used Not used Preamplifier 45
The sound mode that can be selected varies according to the speaker configuration.
The following pages provide basic connection examples.
Refer to the example connection for “Example layout for AURO-3D 9.1
channel system” (v p. 56) when playing AURO-3D with a 9.1-channel
system using the basic 5.1-channel system and the front height and
surround height speakers.
Also refer to the connection example for “Example layout for AURO-3D
13.1 channel system” (v p. 64) when playing AURO-3D with a 13.1-
channel system by adding the Surround Back, Center Height and Top
Surround speakers.
0
In addition to the connections described in p. 49 - 71, this unit allows for various
speaker connections with the “Speaker Layout” setting.
Also refer to the menu screen in “View Terminal Config.” on the “Speaker Layout”
setting screen, which shows how to make connections in your environment.
Front Surround Surround Back Front Height Rear Height
Top Middle
Center
Surround
Surround
Back
Front
Height
Rear
Height
Top
Middle
CenterFront SW 3
SW 4
SW 1 SW 2
HEIGHT3/
FRONT WIDE
Speakers/Speaker Layout
