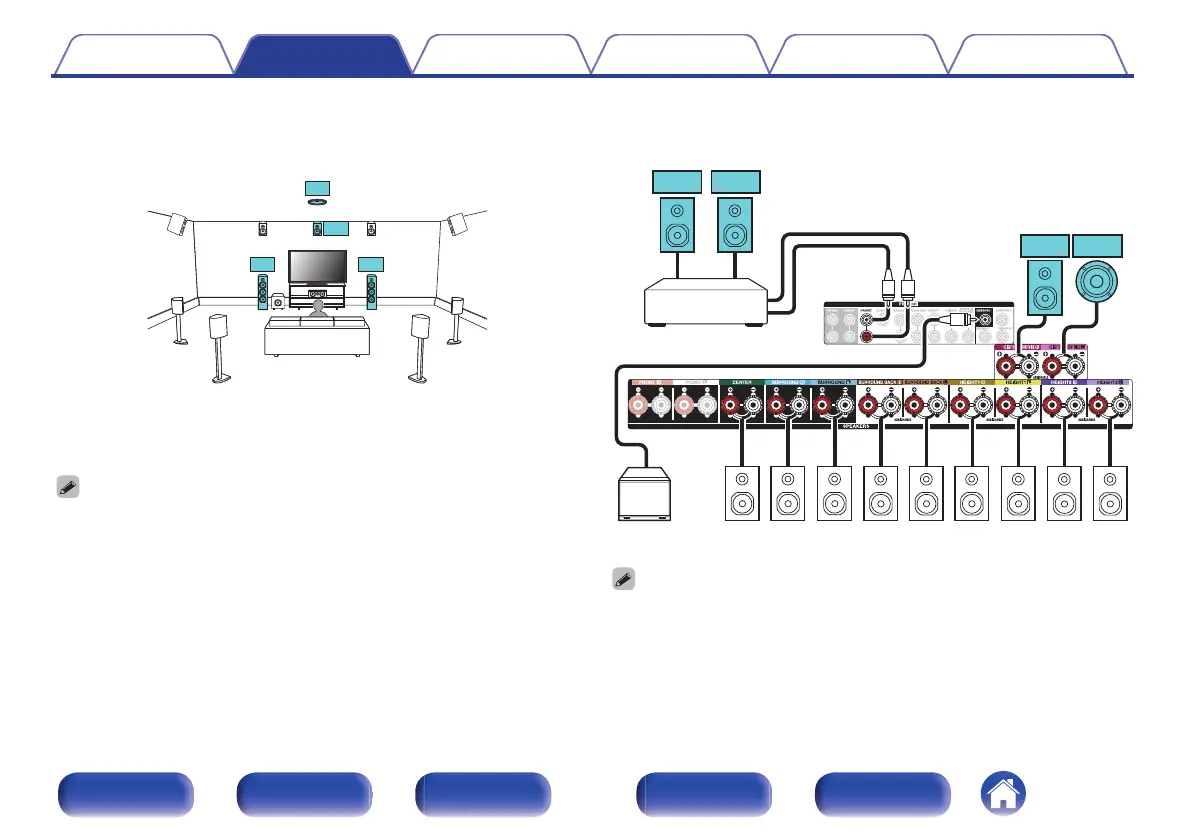

Example layout for AURO-3D 13.1 channel system
This speaker configuration is optimized for AURO-3D playback.
FL FR
SW
SRSL
C
FHL FHR
CH
SHL SHR
TS
SBRSBL
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Surround Back: 2 spkrs
4. Height Speakers: 6 spkrs
5. Front Layout: Front Height
6. Middle Layout: Surround Height
7. Rear Layout: No
8. TS/CH: TS/CH
9. Subwoofers: 1 spkr
FHR FHL
CH TS
RHR RHL
C SR SL SBR SBL
SW
FR FL
Power amplifier
0
When connecting 13.1 channel speakers, an external amplifier needs to be
connected to the Front channel or the Front Wide channel at minimum. Set
“Connection” to “Pre-out Only” for your preferred channel. (v p. 226)
Contents Connections Playback Settings Tips Appendix
64
