Denon AVR-X8500H User Manual

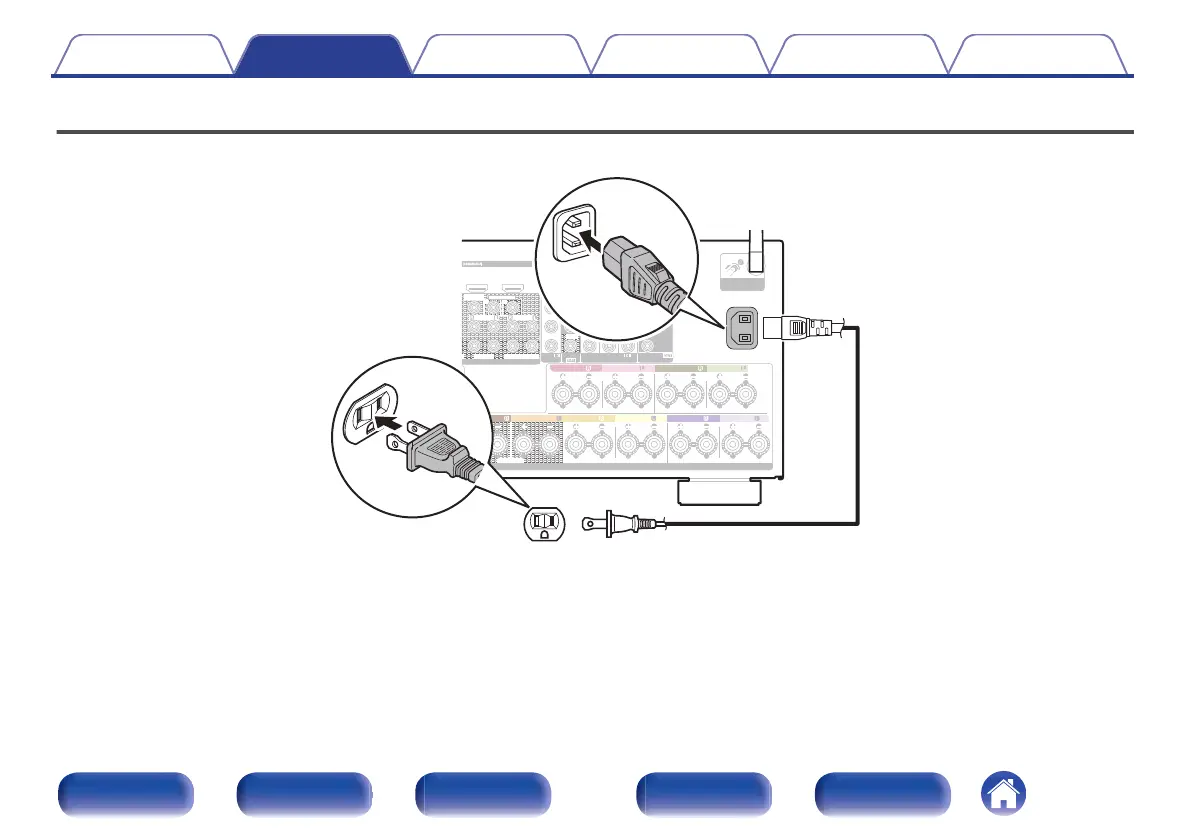

Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
6 AUX2 7 CD
5
MEDIA PLAYER
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD 3
Blu-ray
4 GAME
(ASSIGNABLE)
VIDEO VIDEO
(ASSIGNABLE) (ASSIGNABLE)
COMPONENT VIDEO COMPONENT VIDEO
ARC
MONITOR1
MONITOR
MONITOR/ZONE3
ZONE2
ZONE2 3 Blu-ray
MONITOR2
CENTER
K
HEIGHT2 HEIGHT4/FRONT WIDE
1
2
ASSIGNABLE ASSIGNABLE
ASSIGNABLE ASSIGNABLE
ASSIGNABLE
Bluetooth
/
Wi-Fi
ANTENNA
Y
P
B/
C
B
PR/
C
R
SPEAKERS
SUBWOOFER
HEIGHT1
HEIGHT3
HEIGHT4/FRONT WIDE HEIGHT3 HEIGHT3
S
URROUND BACK SURROUND BACK HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
HEIGHT4/FRONT WIDE
AC IN
(AC 120 V, 60 Hz)
To household power outlet
Power cord (supplied)
Contents Connections Playback Settings Tips Appendix
100
Front panel Display Rear panel Remote Index

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
