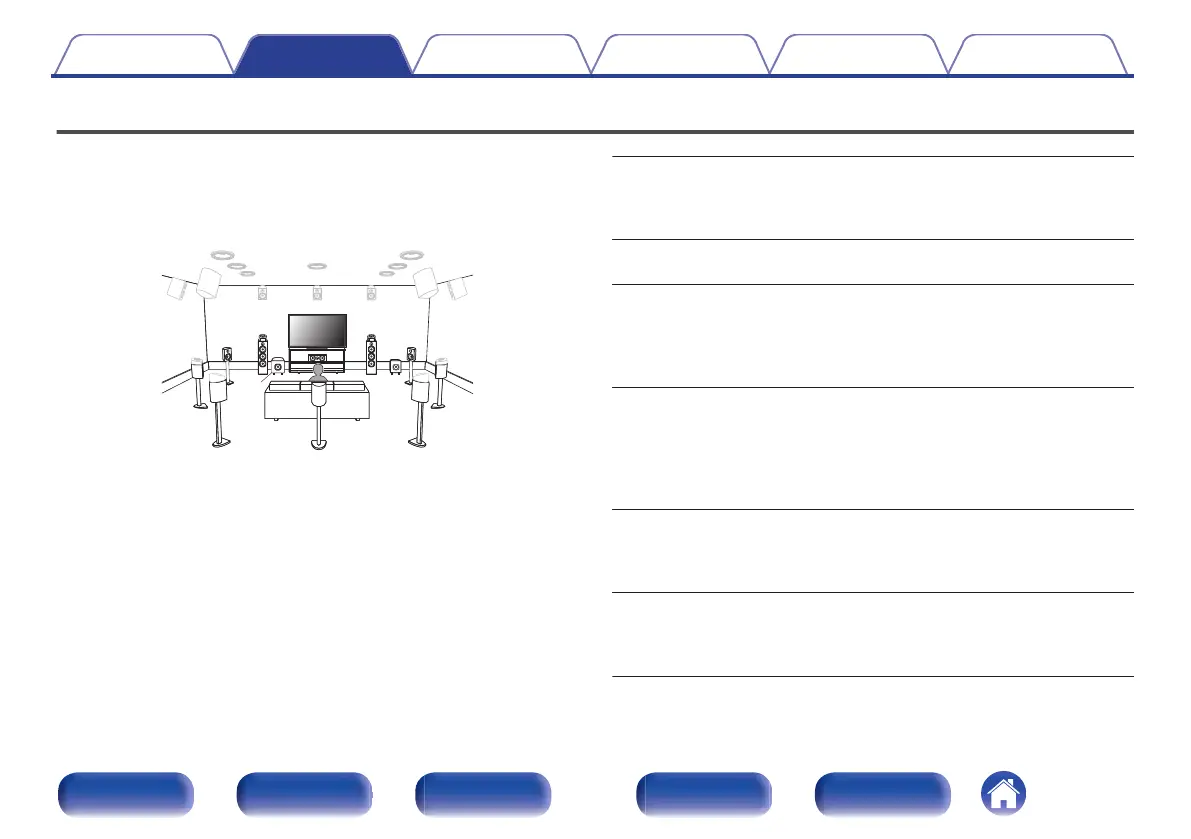

Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
C
FL FR
SBL
SBR
SB
SW1
SW2
FWL
FWR
SL SR
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position. If you don’t have
surround back speakers, move the surround
speakers slightly behind your listening position.
SBL/SBR
(Surround back
speaker left/right):
Place the SURROUND BACK left and right
speakers an equal distance from the main
listening position and directly behind the main
listening position. When using a single surround
back speaker (SB), place it directly behind the
listening position.
FWL/FWR
(Front wide speaker
left/right):
Place the FRONT WIDE left and right speakers
outside of the front left and right speakers so that
there is an equal distance between all front
speakers.
SW 1/2
(Subwoofer):
Place the SUBWOOFER at a convenient location
near the front speakers. If you have two
subwoofers, place them asymmetrically across
the front of your room.
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
