Refer to the example connection for “Example connection for the Auro-3D
9.1-channel system” (v p. 61) when playing Auro-3D with a 9.1-
channel system using the basic 5.1-channel system and the front height
and surround height speakers.
Also refer to the connection example for “Example connection for the
Auro-3D 13.1-channel system” (v
p. 67) when playing Auro-3D with a
13.1-channel system by adding the Surround Back, Top Surround and
Center Height speakers.
0
In addition to the connections described in
p.48 - 80, this unit allows for various
speaker connections with the “Amp Assign” setting.

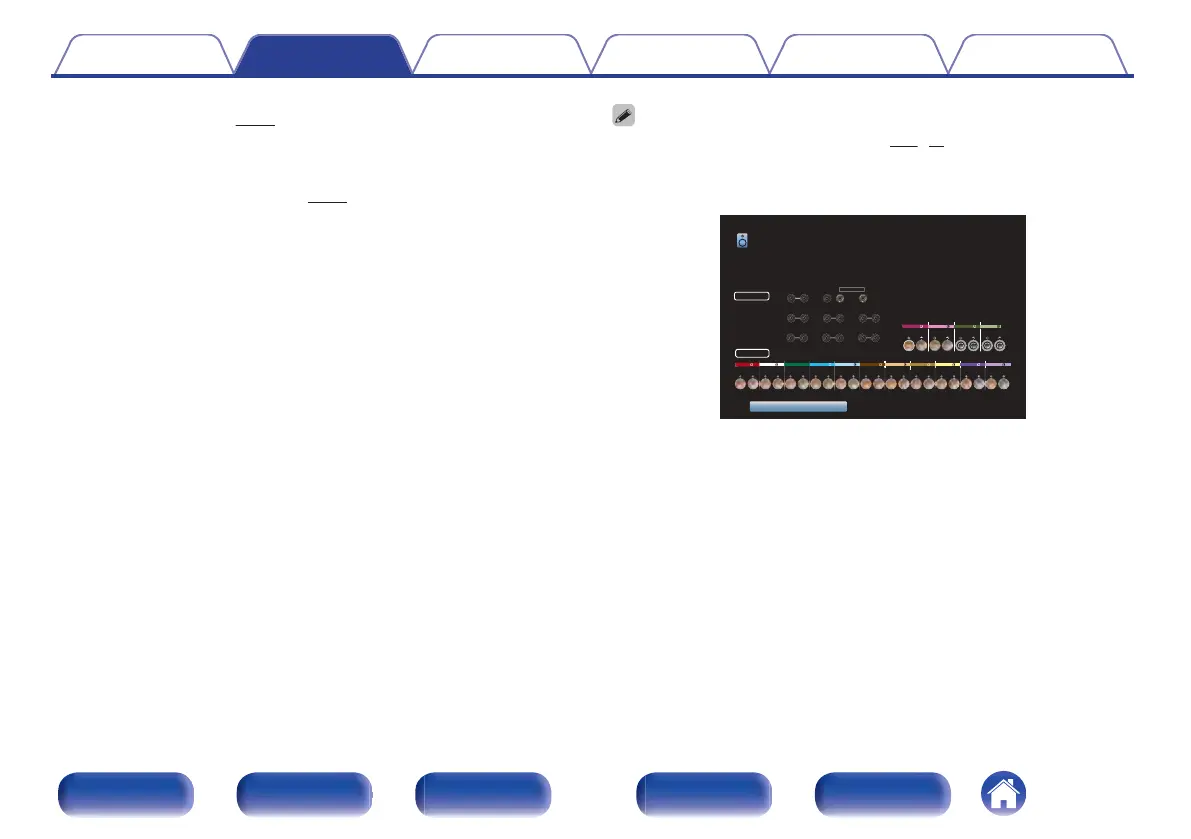

Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign”
setting screen, which shows how to make connections in your environment.
CENTER SURROUND SURROUNDFRONTFRONT CENTER SURROUND SURR.BACK SURROUNDFRONT SURR. BACK FRONT HEIGHT1 HEIGHT1HEIGHT1 HEIGHT1
F.HEIGHT R.HEIGHTSURR.BACKSURROUNDCENTERFRONT
HEIGHT2
HEIGHT2
SUBWOOFER
12
SUBWOOFER
SPEAKERS
Speakers/Amp Assign
PRE OUT
Assign Mode 11.1ch + ZONE2
Back
ZONE2
HEIGHT4HEIGHT3 HEIGHT3 HEIGHT4
Contents Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
