Connecting multi-zone speakers
o

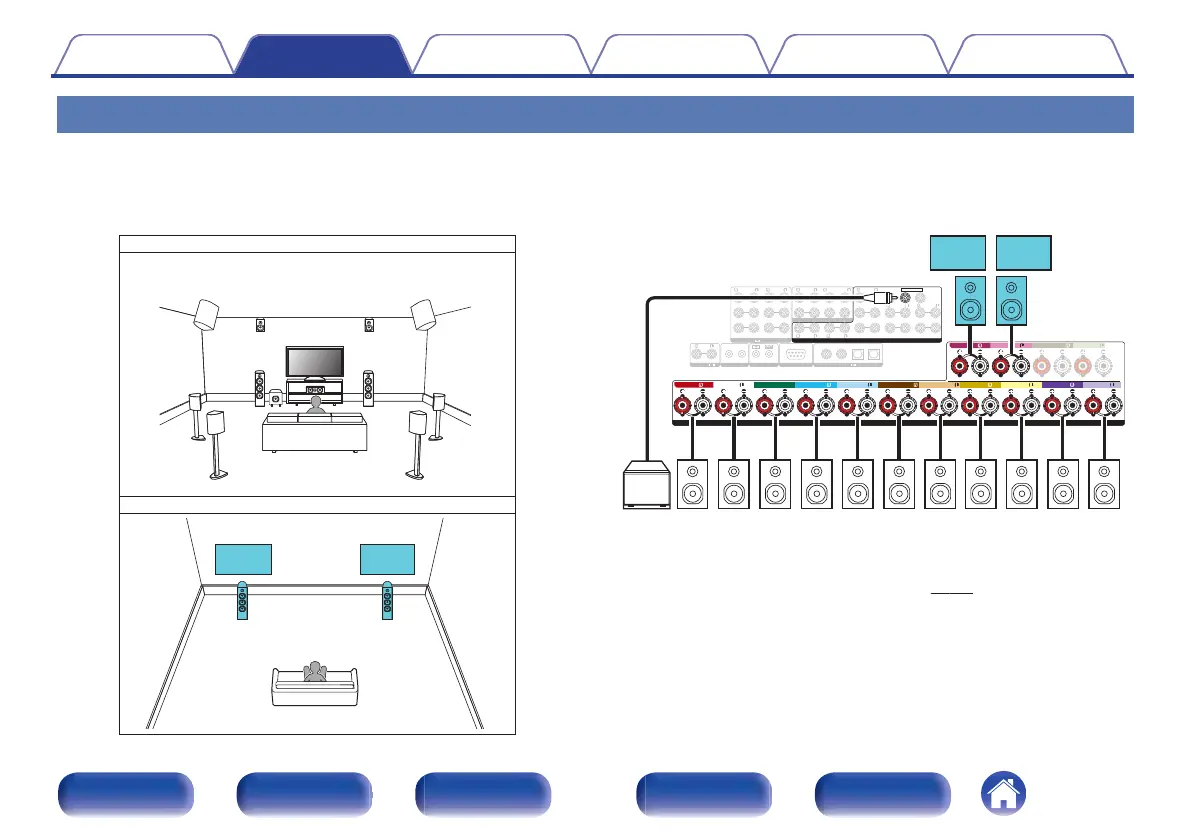

11.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
This type of configuration plays back 11.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 11.1ch + ZONE3)).
MAIN ZONE
ZONE2
ZONE2
L
ZONE2
R
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL FR
1 CBL/SAT
PHONO
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
6 CD
2 DVD
12
3 Blu-ray
5 MEDIA PLAYER
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND CENTER SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
SURROUND
HEIGHT2 HEIGHT4/FRONT WIDE
1
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
SUBWOOFER
HEIGHT1
HEIGHT3
ASSIGNABLE AS SIGNABLE
SPEAKERS
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
HEIGHT4/FRONT WIDE HEIGHT4/FRONT WIDE
ASSIGNABLE
HEIGHT3 HEIGHT3
SW
CSRFR FL SL
SBR SBL
FHR FHL
zz
RHR RHL
zz
ZONE2
R
ZONE2
L
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker
to be connected from “Height” in the menu. (v
p. 227)
