Denon AVR-X8500H User Manual

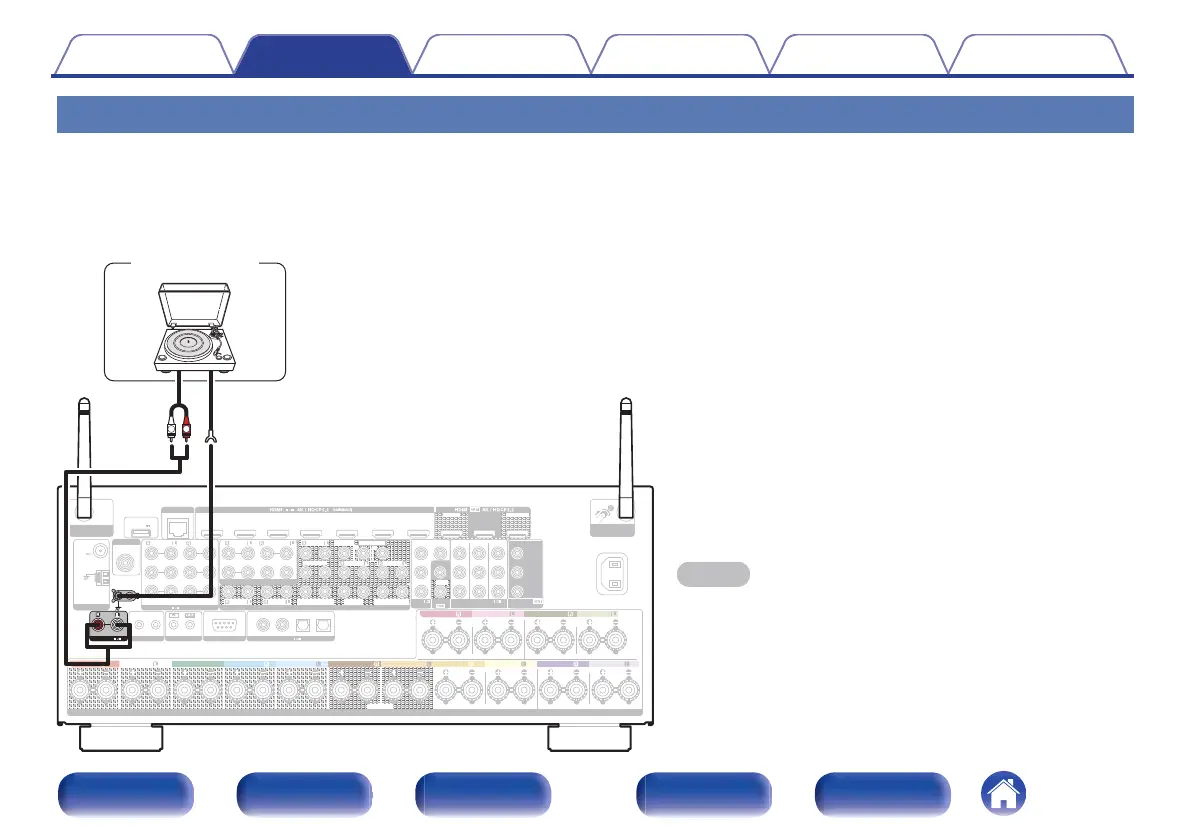

Connecting a turntable
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “Phono” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
NOTE
0
The earth terminal (SIGNAL GND) of this unit is not for safety grounding
purposes. If this terminal is connected when there is a lot of noise, the
noise can be reduced. Note that depending on the turntable, connecting
the ground line may have the reverse effect of increasing noise. In this
case, it is not necessary to connect the ground line.
1 CBL/SAT
2 DVD
2 DVD 1 CBL/SAT
3 Blu-ray 6 AUX2 7 CD
2 CD 1
TV
AUDIO
6 CD
4 GAME
5 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 MEDIA PLAYER
4 GAME
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD 3
Blu-ray
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
(ASSIGNABLE)
VIDEO VIDEO
(ASSIGNABLE) (ASSIGNABLE)
COMPONENT VIDEO COMPONENT VIDEO
ARC
MONITOR1
MONITOR
MONITOR/ZONE3
ZONE2
ZONE2 3 Blu-ray
MONITOR2
COAXIAL OPTICAL
STRAIGHT CABLE
I
R
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND CENTER SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
SURROUND
HEIGHT2 HEIGHT4/FRONT WIDE
1
AUDIO
(ASSIGNABLE)
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE
ASSIGNABLE ASSIGNABLE
ASSIGNABLE
1 CBL/SAT
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
AC IN
NETWORK
Y
P
B/
C
B
PR/
C
R
FM
AM
Denon Link HD
ANTENNA
SPEAKERS
SUBWOOFER
HEIGHT1
HEIGHT3
POWER SUPPLY
5V/1.5A
FRONT
HEIGHT4/FRONT WIDE HEIGHT3 HEIGHT3
FRONT
CENTER
SURROUND SURROUND
SURROUND BACK SURROUND BACK HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
HEIGHT4/FRONT WIDE
PHONO
SIGNAL
GND
AUDIO
GND
AUDIO
OUT
L
R
(MM cartridge)
Turntable
