Denon D-M37 - Page 85

Lch SIGNAL LINE
Rch SIGNAL LINE
Lch and Rch common SIGNAL LINE
PORTABLE
IN
e
u
r
r
u
t
USB IN
H/P OUT
SP OUT
87654321
A
B
C
D
E
F
RCD-M37 / RCD-M37DAB / D-E500 / D-M37

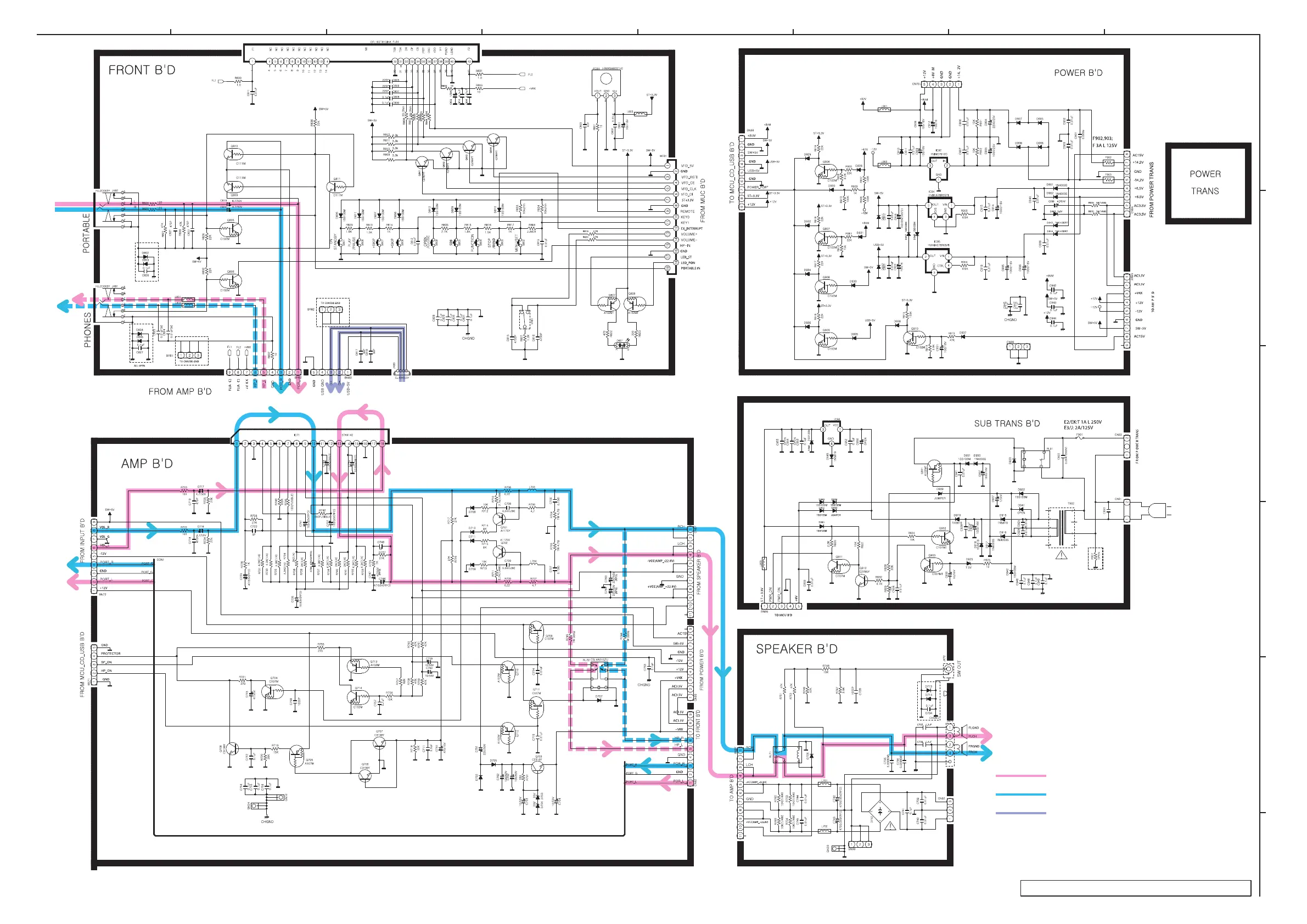

SCHEMATIC DIAGRAMS (3/3)
MAIN UNIT
